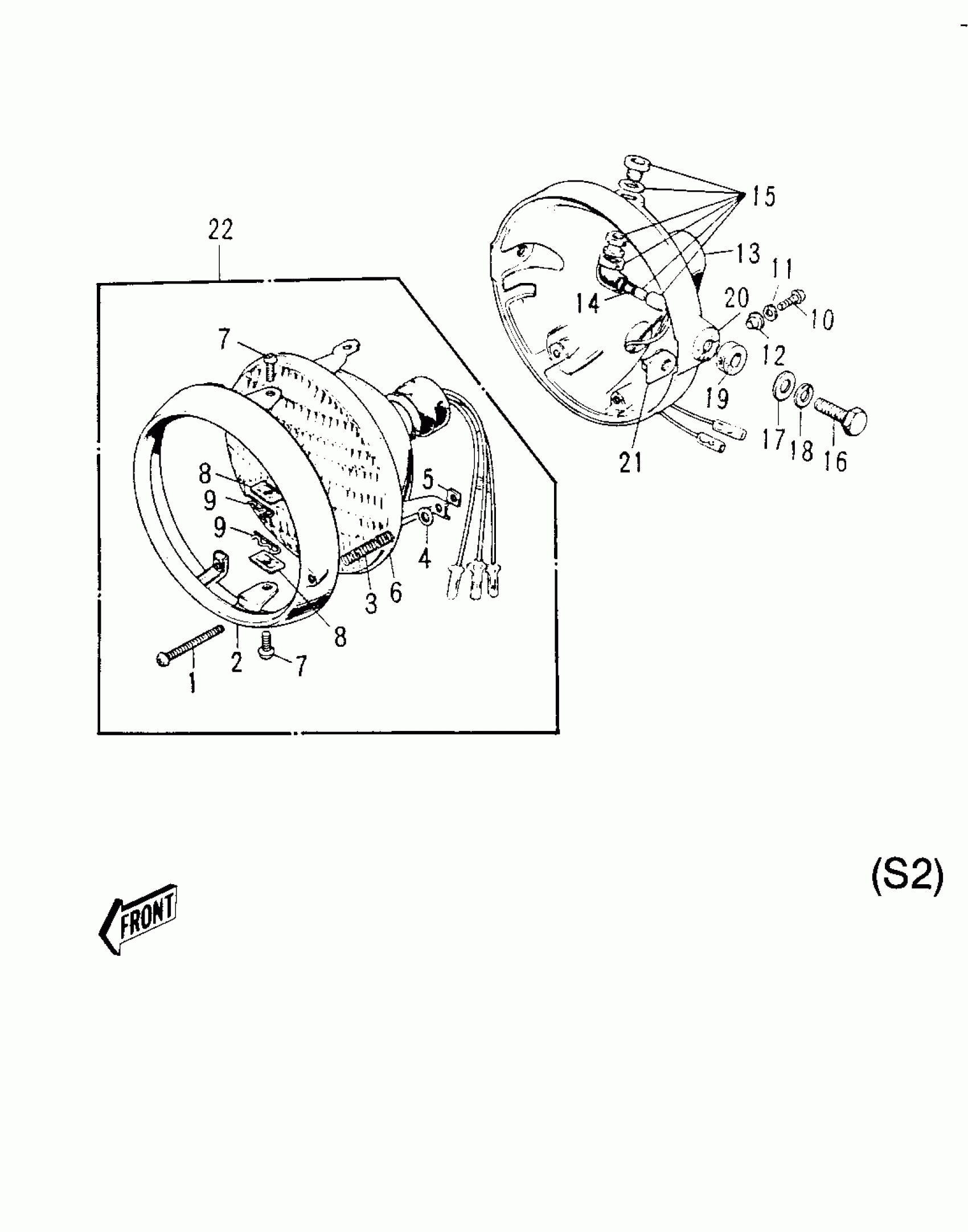

Kawasaki Mach II HEADLIGHT (S2) Diagram

#

Description

Price

1

SCREW,FOCUS ADJUSTING

23019-021

Unavailable

2

RIM-HEAD LAMP

23006-025

Unavailable

3

SPRING,FOCUS ADJUSTING

23014-005

Unavailable

4

WASHER,4.1X8X0.8

23021-004

Unavailable

5

NUT

23020-016

Unavailable

6

SEALED BEAM UNIT

23007-030

Unavailable

7

SCREW LENS UNIT FITT

23019-018

Unavailable

8

NUT LENS UNIT FITTING

23020-009

Unavailable

9

PIN LENS UNIT FITTING

23022-001

Unavailable

10

SCREW,5MM

92011-024

Unavailable

11

WASHER SPRING 5MM

461F0500

Unavailable

12

WASHER

23021-010

Unavailable

13

BODY-HEAD LAMP,BLACK

23005-032-10

Unavailable

14

BULB 12V 1.5W

92069-017

Unavailable

15

LAMP ASSY-PILOT

23016-006

Unavailable

16

BOLT,10X35

92007-024

Unavailable

17

WASHER-PLAIN,10MM

411B1000

Unavailable

18

WASHER SPRING 10MM

461F1000

Unavailable

19

DAMPER RUBBER

92075-079

Unavailable

20

WASHER-LOCK

23021-011

Unavailable

21

NUT

23020-017

Unavailable

22

LAMP UNIT-HEAD

23003-014

Unavailable
