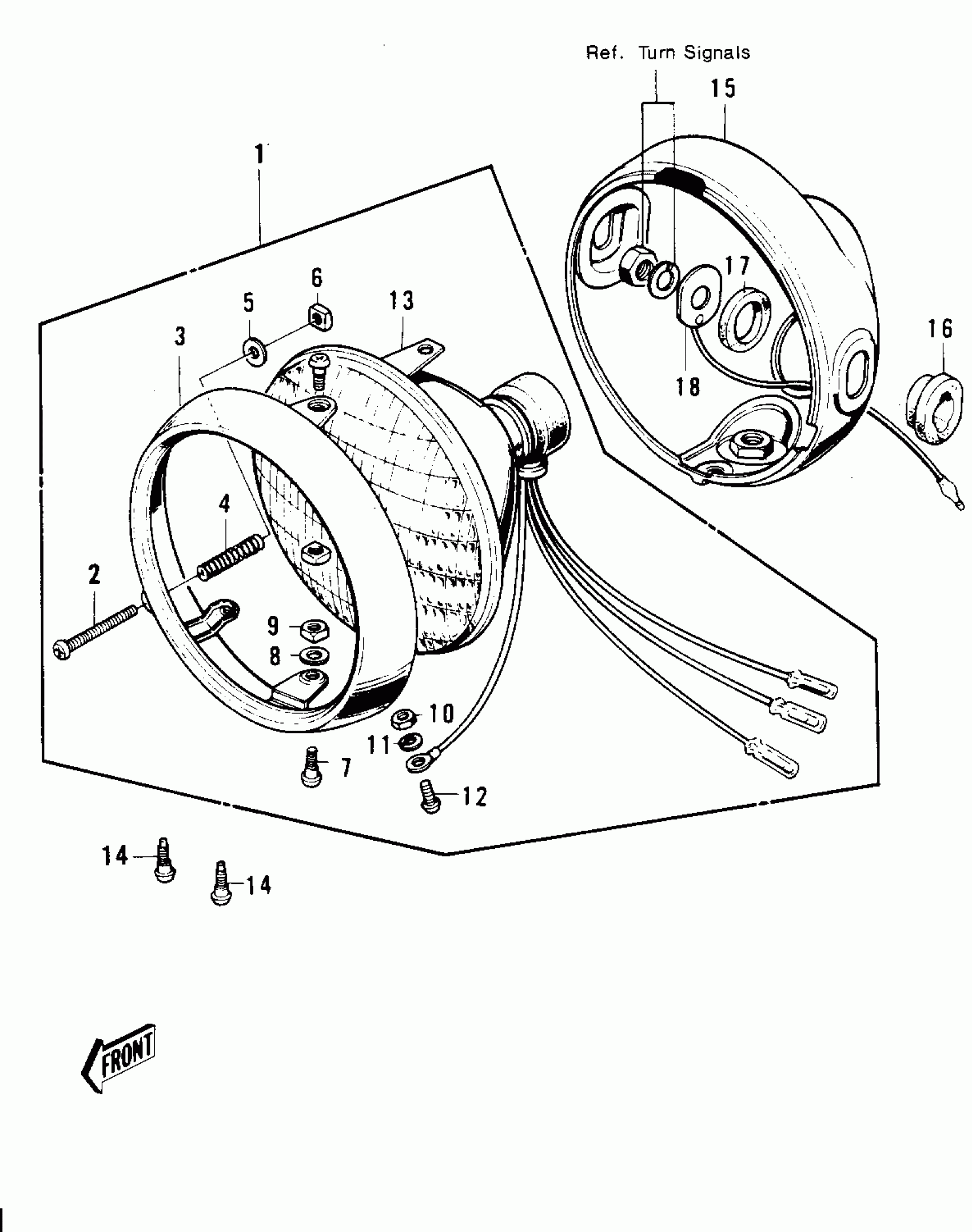

Kawasaki Mach II HEADLIGHT ('74-'75 S3/S3-A) Diagram

#

Description

Price

1

LAMP UNIT-HEAD

23003-018

Unavailable

2

SCREW,FOCUS ADJUSTING

23019-021

Unavailable

3

RIM-HEAD LAMP

23006-034

Unavailable

4

SPRING,FOCUS ADJUSTING

23014-005

Unavailable

5

WASHER,4.1X8X0.8

23021-004

Unavailable

6

NUT,4MM,FOCUS ADJUST

23020-018

Unavailable

7

SCREW,PAN HEAD,5X12

23019-023

Unavailable

8

WASHER,PLAIN,5MM

23021-012

Unavailable

9

NUT,5MM

23020-023

Unavailable

10

NUT-HEX

311B0300

Unavailable

11

WASHER SPRING 3MM

461F0300

Unavailable

12

SCREW-PAN-CROS,3X6

220B0306

Unavailable

13

SEALED BEAM UNIT

23007-043

Unavailable

14

SCREW,SPECIAL,5X14

23019-022

Unavailable

15

BODY-HEAD.LAMP,BLACK

23005-038-21

Unavailable

16

DAMPER RUBBER A

23066-001

Unavailable

17

DAMPER RUBBER

23066-005

Unavailable

18

COLLAR

23076-005

Unavailable

18

COLLAR

23076-005

Unavailable
