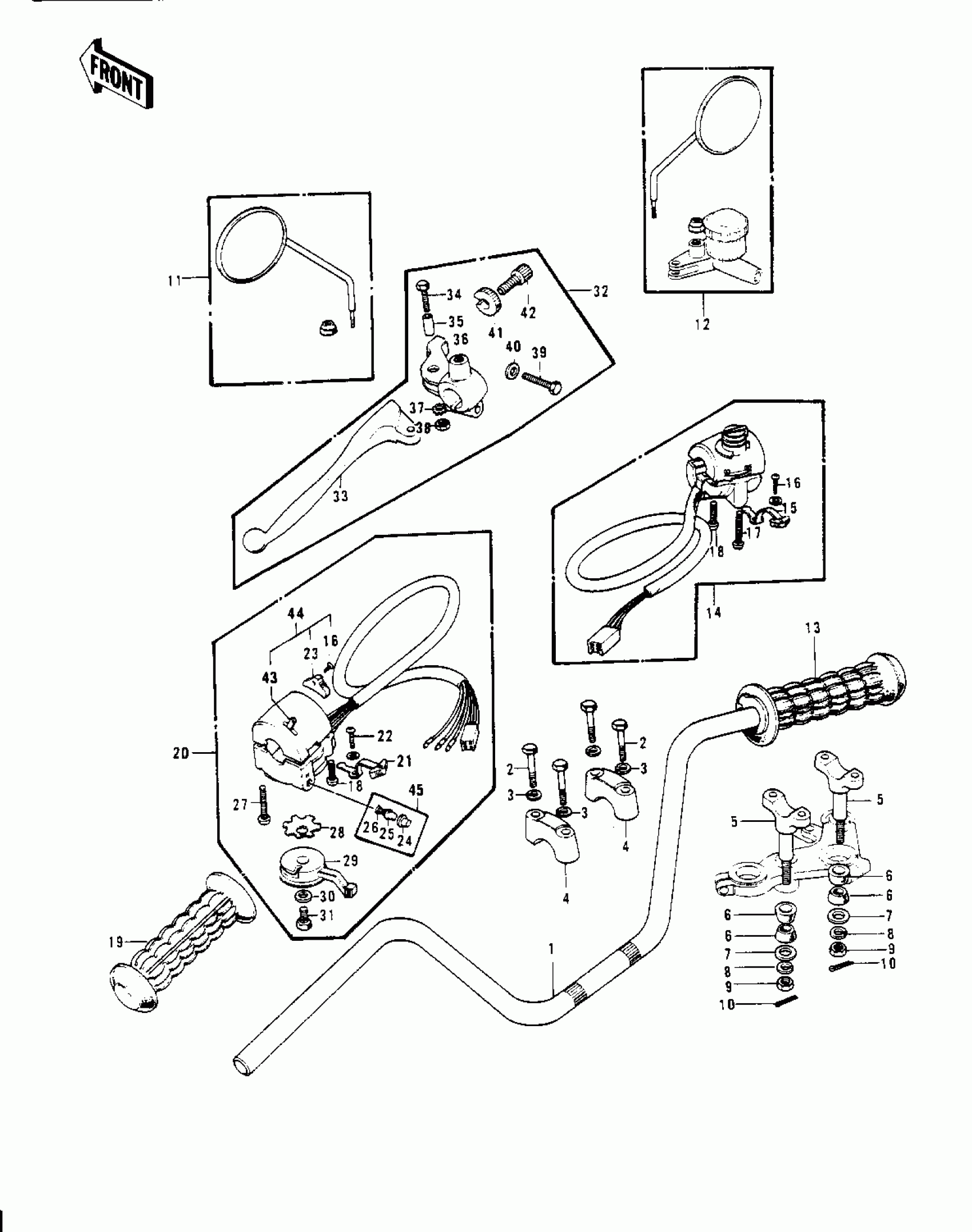

Kawasaki Mach II HANDLEBAR ('74-'75 S3/S3-A) Diagram
#
1
HANDLEBAR
46003-030
Unavailable
2
BOLT 8X38
92001-1405
Unavailable
2
BOLT 8X38
92001-1405
Unavailable
3
WASHER SPRING 8MM
461F0800
Unavailable
4
HOLDER-HANDLE,UPP
46012-008
Unavailable
5
HOLDER-HANDLE,LWR
46012-010
Unavailable
6
DAMPER,HANDLE HOLDER
92075-039
Unavailable
7
PLATE,HANDLE HOLDER
46016-003
Unavailable
8
WASHER SPRING 10MM
461F1000
Unavailable
9
NUT-HEX-FINE,10MM
314B1000
Unavailable
10
PIN-SNAP,8MM
554A0800
Unavailable
11
MIRROR-ASSY,LH
56003-009
Unavailable
12
MIRROR-ASSY,RH
56002-020
Unavailable
13
GRIP ASSY-THROTTLE
46019-023
Unavailable
14
CASE ASSY,R.H
46132-007
Unavailable
14
CASE ASSY,R.H
46132-017
Unavailable
15
KNOB,LIGHING SWITCH
46043-006
Unavailable
16
SCREW PAN HEAD 3X5
220B0305A
Unavailable
17
SCREW-PAN-CROS
220B0535
Unavailable
18
SCREW PAN HEAD 5X22
220B0522
Unavailable
19
RUBBER-L.H GRIP
46075-017
Unavailable
20
CASE ASSY,L.H
46091-014
Unavailable
20
CASE ASSY,L.H
46091-047
Unavailable
21
KNOB,LIGHTING SW L.H
46043-005
Unavailable
22
SCREW CNTSNK HD 3X8
221B0308A
Unavailable
23
KNOB,LIGHTING SW L.H
46044-013
Unavailable
24
SWITCH,PUSH BUTTON
27010-1009
Unavailable
25
SWITCH,PUSH BUTTON
27010-1009
Unavailable
26
SWITCH,PUSH BUTTON
27010-1009
Unavailable
27
SCREW PAN HEAD 5X30
220B0530
Unavailable
28
WASHER LOCK
92095-012
Unavailable
29
LEVER,STARTER
46096-009
Unavailable
30
WASHER-PLAIN-SMALL,6MM
410B0600
Unavailable
31
BOLT-UPSET,6X8
112B0608
Unavailable
32
LEVER-ASSY-GRIP,CLUTCH
46076-044
Unavailable
32
LEVER-ASSY-GRIP,CLUTCH
46076-044
Unavailable
32
LEVER ASSY,CLUTCH
46076-025
Unavailable
33
LEVER-GRIP,CLUTCH
46092-015
Unavailable
33
LEVER-GRIP,CLUTCH
46092-015
Unavailable
34
BOLT HEX HEAD 5X20
92007-020
Unavailable
35
COLLAR LEVER
46059-011
Unavailable
36
HOLDER,F.BLACK
46094-011-21
Unavailable
37
WASHER LOCK 5MM
464H0500
Unavailable
38
NUT-HEX,5MM
312B0500
Unavailable
39
BOLT HEX HEAD 6X25
110N0625
Unavailable
40
WASHER-PLAIN-SMALL,6MM
410B0600
Unavailable
41
NUT,CABLE ADJUST LOCK,8MM
46056-005
Unavailable
42
SCREW,CABLE ADJUST,8MM
46055-003
Unavailable
42
SCREW ADJUST
46055-006
Unavailable
43
SWITCH ASSY,L.H
46089-016
Unavailable
43
SWITCH,L.H
46089-014
Unavailable
44
L.H GRIP SWITCH KIT
99990-530
Unavailable
45
SWITCH,PUSH BUTTON
27010-1009
Unavailable
