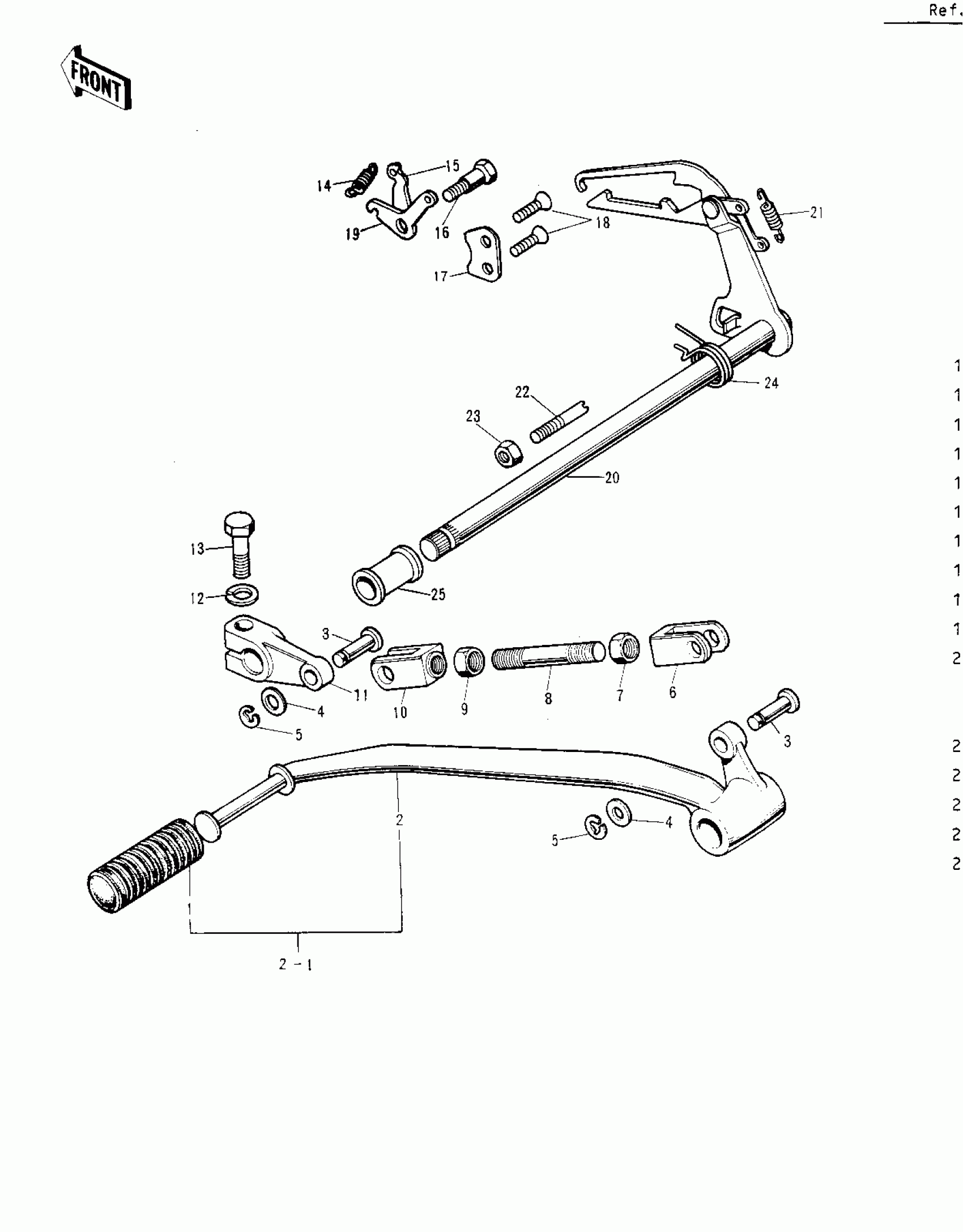

Kawasaki Mach II GEAR CHANGE MECHANISM Diagram

#

Description

Price

1

DAMPER,CHANGE PEDAL

13157-004

Unavailable

2

PEDAL ASY,GEAR CHANGE

13242-009

Unavailable

2-1

PEDAL ASY,GEAR CHANGE

13242-009

Unavailable

3

PIN

92043-069

Unavailable

4

WASHER-PLAIN-SMALL,6MM

410B0600

Unavailable

5

CIRCLIP 5MM

482K5000

Unavailable

6

CONNECTOR,B

13159-008

Unavailable

7

NUT,8MM

92017-010

Unavailable

8

ROD

92003-074

Unavailable

9

NUT-HEX-SMALL,8MM

318B0800

Unavailable

10

CONNECTOR,A

13159-007

Unavailable

11

LEVER-GEAR CHANGE

13158-007

Unavailable

12

WASHER SPRING 8MM

461F0800

Unavailable

13

BOLT,8X20

92150-1488

Unavailable

14

SPRING-COIL

92081-091

Unavailable

15

PLATE-CHNG DRUM LEVER

13170-005

Unavailable

16

SCREW,6MM

92011-023

Unavailable

17

PLATE-DRUM LEV POSTON

13169-007

Unavailable

18

SCREW-CSK-CROS,6X16

221B0616

Unavailable

19

LEVER ASSY-CHNG RETRN

13236-002

Unavailable

20

LEVER ASSY GEAR CHNG

13161-036

Unavailable

20

LEVER SET-GEAR CHANGE

13162-007

Unavailable

21

SPRING,CHANGE LEVER

92144-1720

Unavailable

22

BOLT,RETURN SPRING

92001-1401

Unavailable

23

NUT 8MM

312B0800

Unavailable

24

SPRING,TENSION

92081-1129

Unavailable

25

DUST SHIELD-CHNG SHT

13171-004

Unavailable
