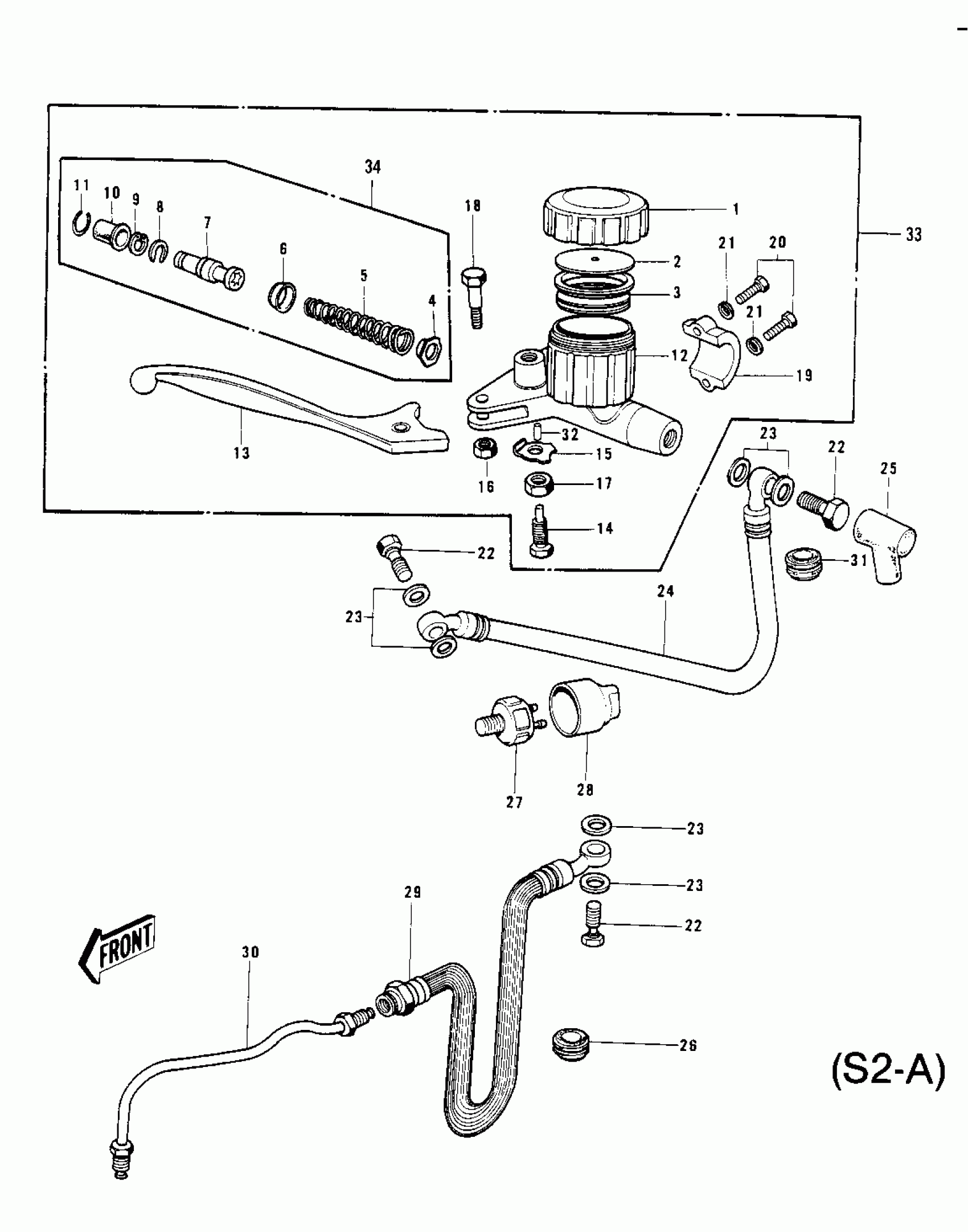

Kawasaki Mach II FRONT MASTER CYLINDER (S2-A) Diagram
#
1
CAP,OIL CUP
43026-003
Unavailable
2
PLATE-MASTER CYLINDE
43027-001
Unavailable
3
DIAPHRAGM
43028-001
Unavailable
4
VALVE ASSY-CHECK
43017-001
Unavailable
5
SPRING ASSY-RETURN
43018-001
Unavailable
6
CUP-PRIMARY
43019-001
Unavailable
7
PISTON ASSY
43072-001
Unavailable
8
STOPPER-PISTON
43022-001
Unavailable
9
CIRCLIP-TYPE-C,18MM
481J1800
Unavailable
10
BOOTS
43024-001
Unavailable
11
STOPPER-BOOTS
43025-001
Unavailable
12
BODY, MASTER CYLINDER
43016-002
Unavailable
13
LEVER,FRONT BRAKE
43029-003
Unavailable
14
BOLT-LEVER ADJUST
43030-002
Unavailable
14
BOLT,LEVER ADJUSTING
43030-003
Unavailable
15
WASHER-LOCK,8MM
43031-001
Unavailable
16
NUT,6MM
312N0600
Unavailable
17
NUT,8MM
314N0800
Unavailable
18
BOLT-LEVER FITTING
43033-001
Unavailable
18
BOLT
43033-004
Unavailable
19
HOLDER-MASTER CYL
43034-001
Unavailable
20
BOLT HEX HEAD 6X25
110N0625
Unavailable
21
WASHER-PLAIN-SMALL,6MM
410B0600
Unavailable
22
BOLT,OIL,L=23
92002-1888
Unavailable
23
WASHER,10.5X15X1.5
43067-001
Unavailable
24
HOSE-FRONT BRAKE
43059-006
Unavailable
25
BOOT,DUST
49006-1041
Unavailable
26
GROMMET-HOSE BRACKET
43064-001
Unavailable
27
SWITCH-FRONT BRAKE
43065-001
Unavailable
28
CAP,FRONT BRK SWITCH
11012-1037
Unavailable
29
HOSE-FRONT BRAKE
43059-008
Unavailable
30
PIPE-BRIDGE
43060-003
Unavailable
31
DAMPER RUBBER
43064-005
Unavailable
32
TUBE
43074-001
Unavailable
33
CYLINDER ASSY,MASTER
43015-032
Unavailable
33
CYLINDER ASSY,MASTER
43015-032
Unavailable
34
REPAIR SET-MASTER CYL
43073-001
Unavailable
