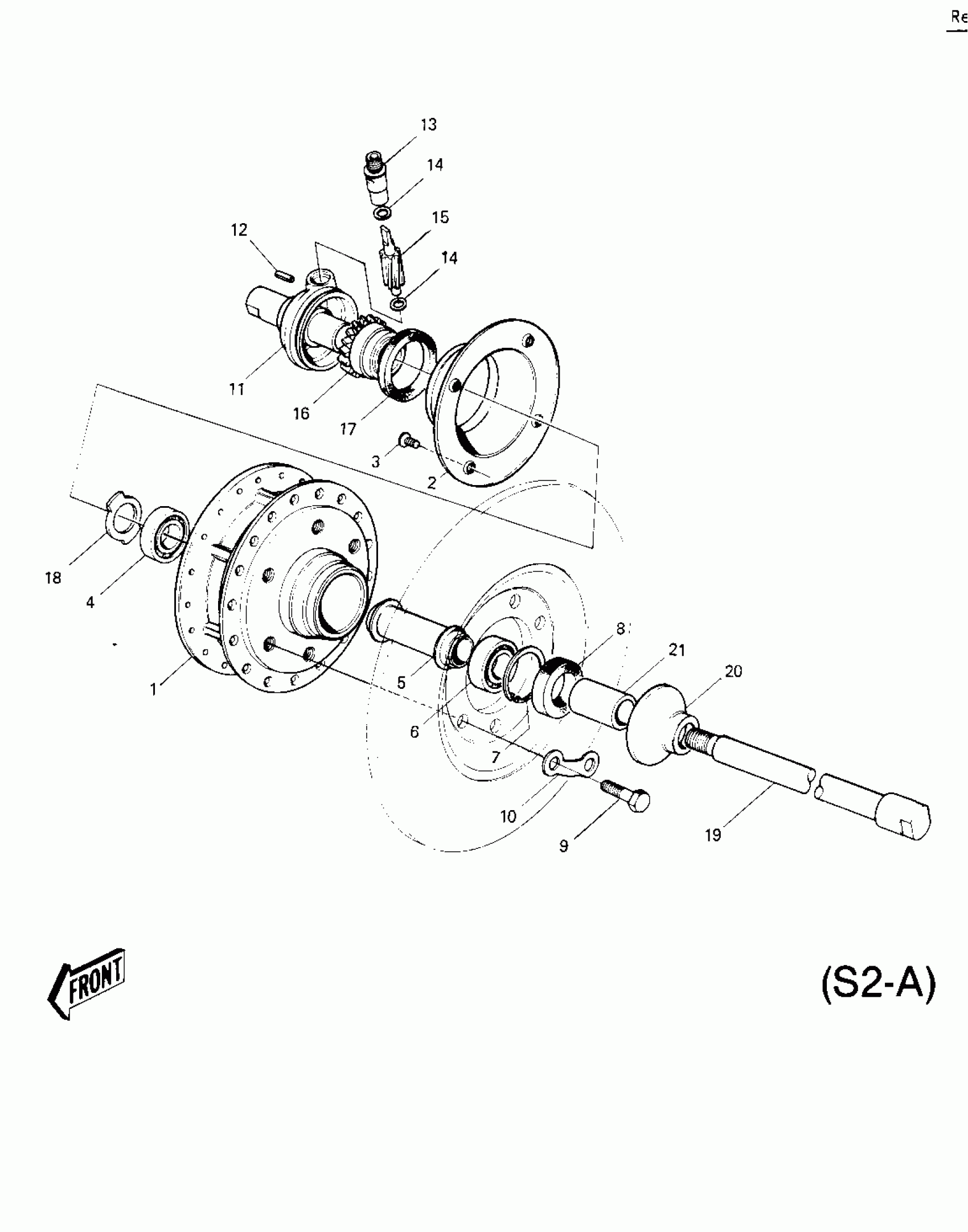

Kawasaki Mach II FRONT HUB (S2-A) Diagram

#

Description

Price

1

DRUM-ASSY,FR BRK

41034-024

Unavailable

2

DUST COVER

41042-011

Unavailable

3

SCREW OVL CNTSNK 4X8

222E0408A

Unavailable

4

BEARING BALL #6302Z

601B6302Z

Unavailable

5

SPACER-FR AXLE BRG

41039-021

Unavailable

6

BEARING-BALL,#6302C3

601B6302

Unavailable

7

RING-SNAP,42MM

92033-1041

Unavailable

8

OIL SEAL WTC25428

92052-005

Unavailable

9

BOLT-HEX HEAD,8X28

92001-104

Unavailable

10

WASHER-LOCK

92088-016

Unavailable

11

GEAR BOX ASSY

41078-002

Unavailable

12

PIN,SPRING

41082-001

Unavailable

13

BUSHING,SPEEDOMETER CABLE

41062-005

Unavailable

14

WASHER,5.1X9X0.4

41063-001

Unavailable

15

PINION-SPEEDOMETER

41060-013

Unavailable

16

GEAR-SPEEDOMETER,25T

41059-017

Unavailable

17

OIL SEAL

92050-049

Unavailable

18

RECEIVER,SPEED GEAR

41064-1005

Unavailable

19

AXLE-FRONT

41068-038

Unavailable

20

DUST COVER-FRONT AXLE

41042-012

Unavailable

21

COLLAR-FRONT AXLE

41069-020

Unavailable
