1973 Kawasaki Mach Ii Front Hub/brake Diagram

← All diagrams

Find the part on the Front Hub/brake diagram for your 1973 Kawasaki Mach Ii, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

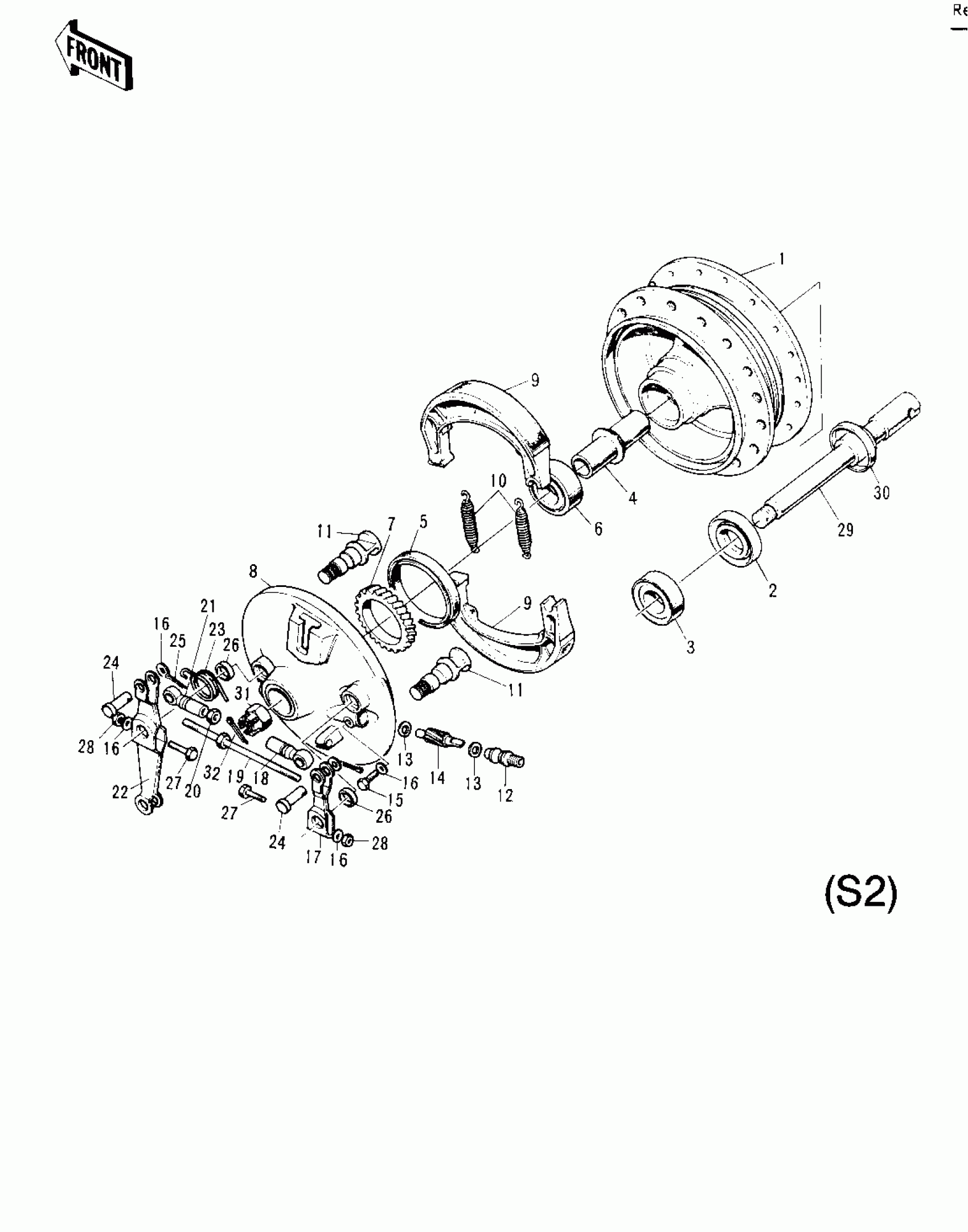

1973 Kawasaki Mach Ii Front Hub/brake Diagram

#

Description
Price
Status
Order Qty

1

DRUM-ASSY,FR BRK

41034-007

$185.79

In stock

2

OIL SEAL WTC25428

92052-005

Out of stock

3

$8.80

In stock

4

$7.93

In stock

5

OIL SEAL WOC55687

92050-017

Out of stock

6

$25.71

In stock

7

.GEAR SPEEDOMETER

41059-009

$20.83

In stock

8

PANEL-ASY,FR BRK BUFF

41035-066-80

$375.02

In stock

9

SHOE,BRAKE

41048-019

Out of stock

10

SPRING FRNT BRK SHOE

41049-004

Out of stock

11

CAM SHAFT FRONT BRAKE

41050-004

Out of stock

12

$30.16

In stock

13

WASHER PINION THRUST

41063-003

Out of stock

14

PINION SPEEDOMETER

41060-007

Out of stock

15

BOLT-UPSET

112G0618

Out of stock

16

WASHER PLAIN 6MM

411B0600

Out of stock

17

LEVER FRT BRK CAM 2ND

41053-012

Out of stock

18

ROD END,BRK CONNECT

41058-009

Out of stock

19

ROD BRK CAM LEV CONCT

41057-004

Out of stock

20

NUT-HEX

311B0500

$0.51

In stock

21

ROD END,BRK CONNECT

41058-008

Out of stock

22

LEVER FRT BRK CAM 1ST

41053-011

Out of stock

23

SPRING FR BRK CAM LEV

41056-001

Out of stock

24

$8.78

In stock

25

$1.73

In stock

26

SEAL,BRAKE CAM

41051-001

$3.39

In stock

27

BOLT-UPSET

112G0630

Out of stock

28

NUT 6MM

311B0600

Out of stock

29

AXLE-FRONT

41068-035

Out of stock

30

COLLAR F AXL OIL SEAL

41069-007

Out of stock

31

NUT-CASTLE,14MM

320B1400

Out of stock

32

$2.08

In stock
