1973 Kawasaki Mach II Front Brake Diagram

← All diagrams

Find the part on the Front Brake diagram for your 1973 Kawasaki Mach II, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

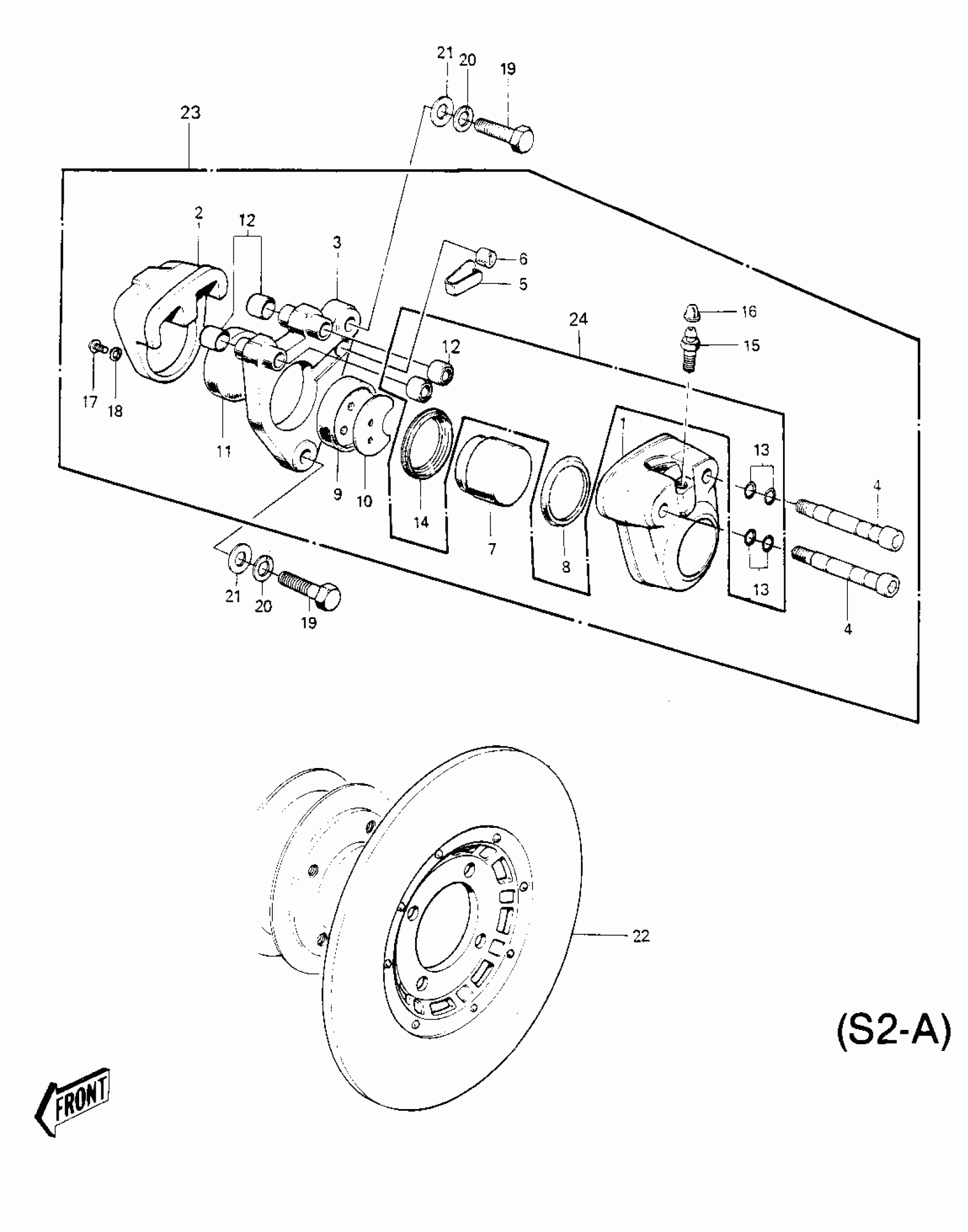

1973 Kawasaki Mach II Front Brake Diagram

#

Description
Price
Status
Order Qty

1

CALIPER A

43042-003

Out of stock

2

CALIPER B

43043-002

Out of stock

3

HOLDER-CALIPER

43044-003

Out of stock

4

SHAFT

43045-002

Out of stock

5

STOPPER-PAD A

43046-001

Out of stock

6

BUSHING-RUBBER

43047-001

Out of stock

7

PISTON-CALIPER

43048-001

Out of stock

8

PACKING,PISTON SEAL

43049-001

Out of stock

9

PAD A

43082-001

Out of stock

9

PAD A

43082-001

Out of stock

10

SHIM

43076-001

Out of stock

11

PAD B

43051-001

Out of stock

12

DUST SEAL-SHAFT

43052-002

Out of stock

13

"0" RING,SHAFT

43053-001

Out of stock

14

DUST SEAL-PISTON

43054-002

Out of stock

15

BLEEDER

43056-002

Out of stock

16

BLEEDER SET

43085-001

Out of stock

17

SCREW,8X12

220B0812

Out of stock

18

WASHER SPRING 6MM

461F0600

Out of stock

19

BOLT

92007-032

Out of stock

20

WASHER SPRING 10MM

461F1000

Out of stock

21

WASHER PLAIN 10MM

410B1000

Out of stock

22

DISC PLATE,FRONT BRAK

41080-006

Out of stock

23

CALIPER ASSY

43041-003

Out of stock

24

REPAIR SET,CALLIPER

43073-003

Out of stock
