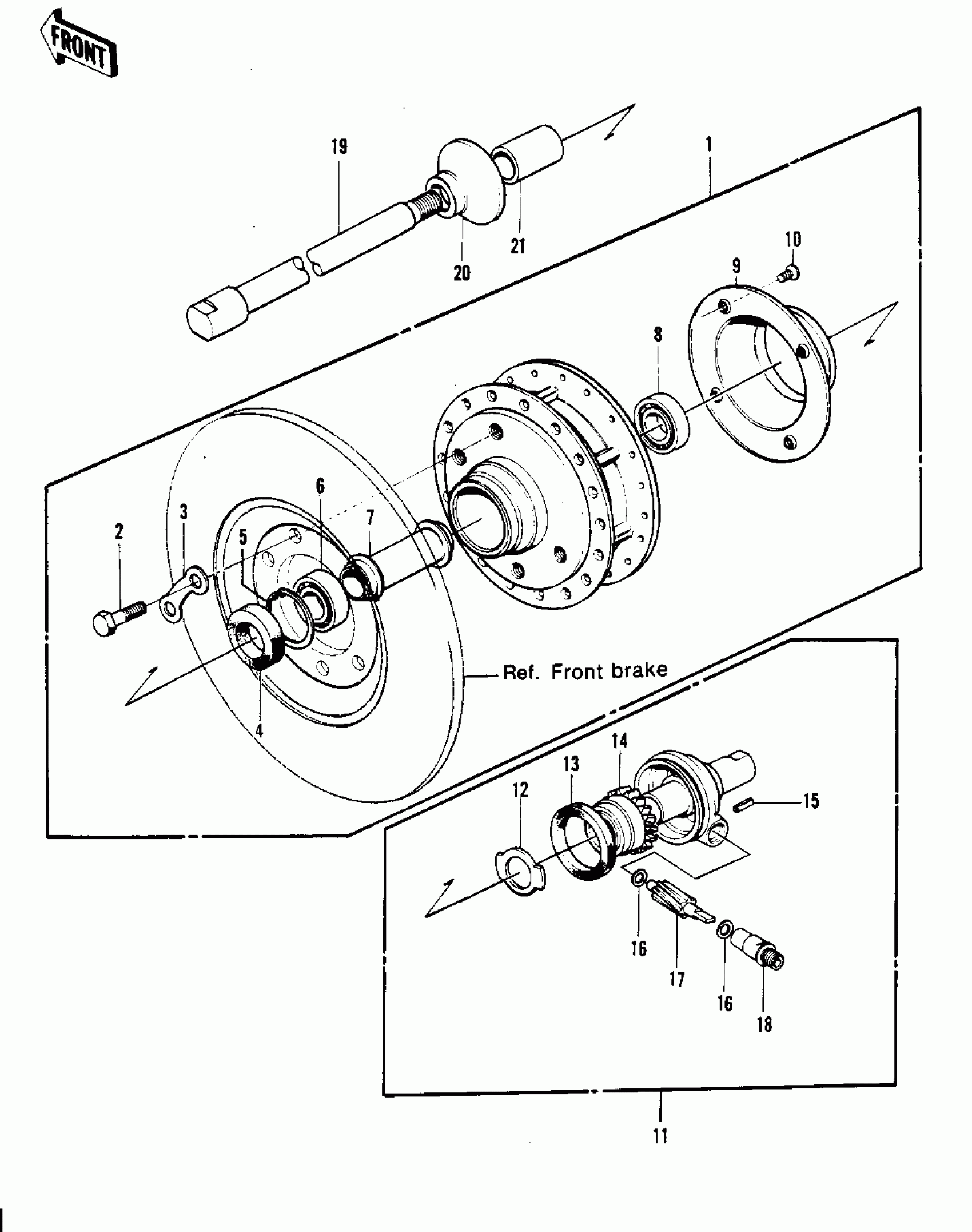

Kawasaki Mach II FRONT HUB ('74-'75 S3/S3-A) Diagram
#
Description
Price
1
DRUM-ASSY,FR BRK
41034-024
Unavailable
2
BOLT-HEX HEAD,8X28
92001-104
Unavailable
3
WASHER-LOCK
92088-016
Unavailable
4
OIL SEAL WTC25428
92052-005
Unavailable
5
RING-SNAP,42MM
92033-1041
Unavailable
5
RING-SNAP,42MM
92033-1041
Unavailable
6
BEARING-BALL,#6302C3
601B6302
Unavailable
7
SPACER-FR AXLE BRG
41039-021
Unavailable
8
BEARING BALL #6302Z
601B6302Z
Unavailable
9
DUST COVER
41042-011
Unavailable
10
SCREW OVL CNTSNK 4X8
222E0408A
Unavailable
11
GEAR BOX ASSY
41078-004
Unavailable
12
RECEIVER,SPEED GEAR
41064-1005
Unavailable
12
RECEIVER,SPEED GEAR
41064-1005
Unavailable
13
OIL SEAL
92050-049
Unavailable
14
GEAR,SPEEDOMETER
41059-020
Unavailable
15
PIN,SPRING
41082-001
Unavailable
16
WASHER,5.1X9X0.4
41063-001
Unavailable
17
PINION-SPEEDOMETER
41060-013
Unavailable
18
BUSHING,SPEEDOMETER CABLE
41062-005
Unavailable
19
AXLE-FRONT
41068-038
Unavailable
20
DUST COVER-FRONT AXLE
41042-012
Unavailable
21
COLLAR-FRONT AXLE
41069-020
Unavailable
