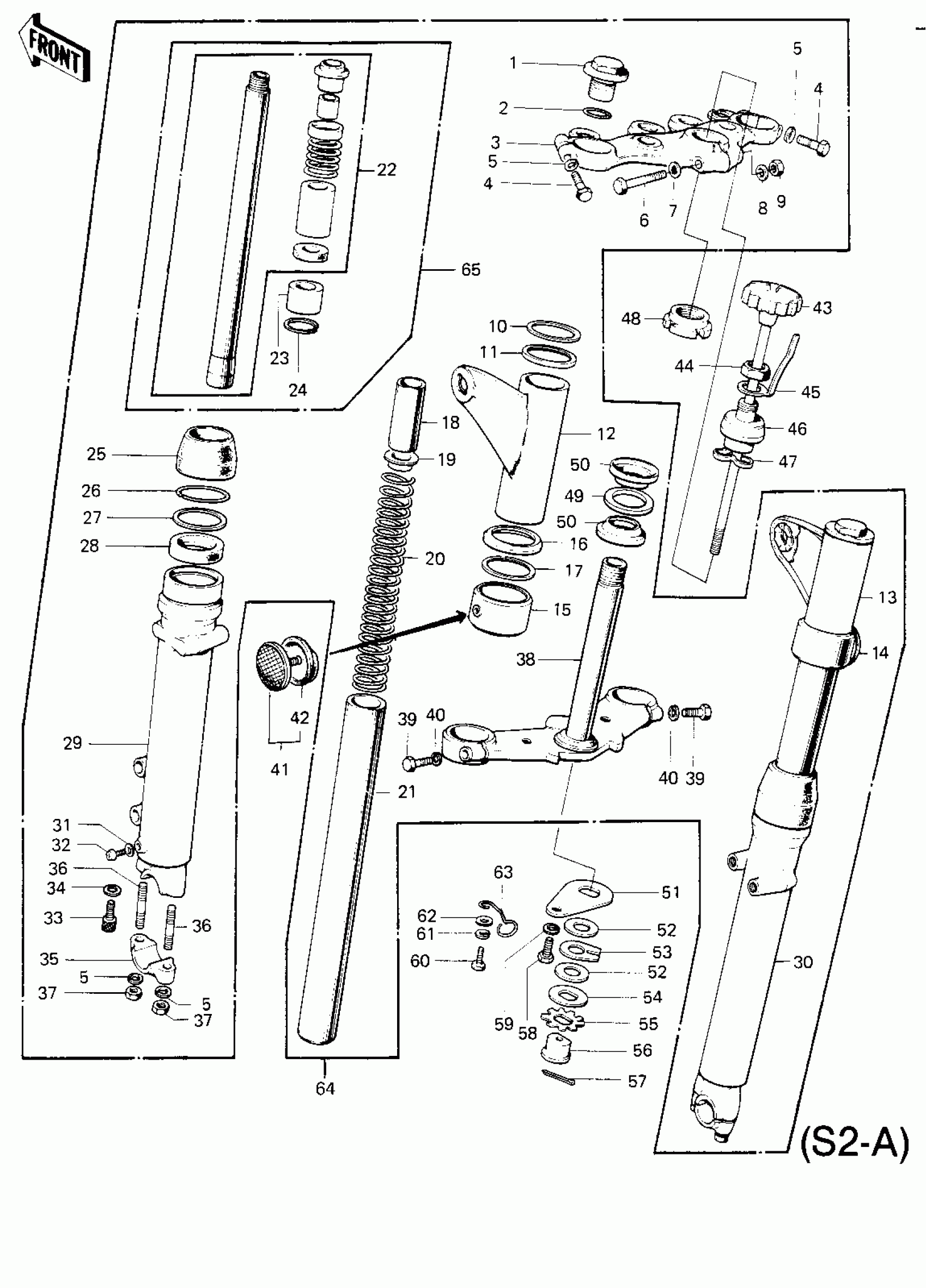

Kawasaki Mach II FRONT FORK (S2-A) Diagram
#
1
BOLT-FORK FITTING
44041-037
Unavailable
2
RING-O,FORK TOP
92055-1012
Unavailable
2
RING-O,FORK TOP
92055-1012
Unavailable
3
HEAD-STEERING STEM
44039-051
Unavailable
4
BOLT-STEERING STEM HD
44041-044
Unavailable
5
WASHER SPRING 8MM
461F0800
Unavailable
6
BOLT-STEERING STEM HD
44041-042
Unavailable
7
WASHER LOCK 8MM
463H0800
Unavailable
8
WASHER PLAIN 8MM
410B0800
Unavailable
9
NUT,LOCK,8MM
92015-1124
Unavailable
9
NUT,LOCK,8MM
92015-1124
Unavailable
10
GASKET,FORK COVER
44045-039
Unavailable
11
WASHER,FORK COVER
44043-047
Unavailable
12
COVER-L.H FORK,BLACK
44033-053-21
Unavailable
12
COTER,L.H FORK
44033-067
Unavailable
13
COVER-R.H FORK,BLACK
44034-053-21
Unavailable
13
COVER,R.H FORK
44034-067
Unavailable
14
GUIDE-FORK COVER,R.H
44064-009
Unavailable
15
GUIDE-FORK COVER,L.H
44064-010
Unavailable
16
CAP,FORK COVER
44032-005
Unavailable
17
GASKET FORK COVER
44045-029
Unavailable
18
SPACER-FORK SP GUIDE
44028-026
Unavailable
19
GUIDE-FORK SPRING
44029-019
Unavailable
20
SPRING-FORK
44026-043
Unavailable
21
TUBE-FORK INNER
44013-038
Unavailable
22
CYLINDER-FORK
44023-005
Unavailable
22
CYLINDER-FORK
44022-026
Unavailable
23
PISTON FORK
44018-001
Unavailable
23
PISTON,FORK
44018-009
Unavailable
24
CIRCLIP FORK PISTON
44044-008
Unavailable
24
CIRCLIP FORK PISTON
44044-008
Unavailable
25
DUST SHIELD-FORK
44010-019
Unavailable
26
CIRCLIP OIL SEAL FIT
44044-005
Unavailable
27
WASHER OIL SEAL FIT
44043-023
Unavailable
28
OIL SEAL,FORK
44009-020
Unavailable
39
TUBE,LH,FORK OUTER
44005-046
Unavailable
30
TUBE,RH,FORK OUTER
44006-044
Unavailable
31
GASKET,FORK DRAIN PLUG
44045-002
Unavailable
32
SCREW PAN HEAD 4X8
220B0408
Unavailable
33
BOLT,SOCKET,FORK CYLINDER
44041-040
Unavailable
34
GASKET
44045-057
Unavailable
35
HOLDER-FRONT AXLE
44063-006
Unavailable
36
BOLT-STUD,8X30
172G0830
Unavailable
37
NUT,8MM
311B0800
Unavailable
38
STEM-STEERING
44037-058
Unavailable
39
BOLT HEX HEAD 10X32
113B1032
Unavailable
40
WASHER SPRING 10MM
461F1000
Unavailable
41
REFLECTOR,REFLEX,FRNT
28001-029
Unavailable
42
DAMPER RUBBER-REFLEX
28016-002
Unavailable
43
KNOB-STEERING DAMPER
46101-007
Unavailable
44
NUT 12MM
315N1200A
Unavailable
45
SPRING STRG DAMP KNOB
46126-001
Unavailable
46
BOLT-STEERING STEM
92090-020
Unavailable
47
WASHER-WAVE
46100-002
Unavailable
48
NUT,30MM
92090-007
Unavailable
49
CAP,STEERING STEM
46098-016
Unavailable
50
RACE,STEERING STEM BEARING
92047-006
Unavailable
51
PLATE-STRG DAMP STEEL
46106-007
Unavailable
52
PLATE STRG DAMP FRCTN
46104-005
Unavailable
53
PLATE STRG DAMP ANCHR
46105-005
Unavailable
54
PLATE-STRG DAMP STEEL
46106-008
Unavailable
55
SPRING-STEERING DAMP
46124-006
Unavailable
56
NUT STRG DAMPER GUIDE
46125-005
Unavailable
57
PIN-COTTER,1.6X15
550D1615
Unavailable
58
BOLT SMALL
114G0812
Unavailable
59
WASHER SPRING 8MM
461F0800
Unavailable
60
BOLT,6X10
112G0610
Unavailable
61
WASHER SPRING 6MM
461F0600
Unavailable
62
WASHER-PLAIN-SMALL,6MM
410B0600
Unavailable
63
CLAMP-CABLE
92037-099
Unavailable
64
FORK-FRONT
44001-144
Unavailable
64
FORK-FRONT
44001-144
Unavailable
65
CYLINDER-FORK
44023-005
Unavailable
