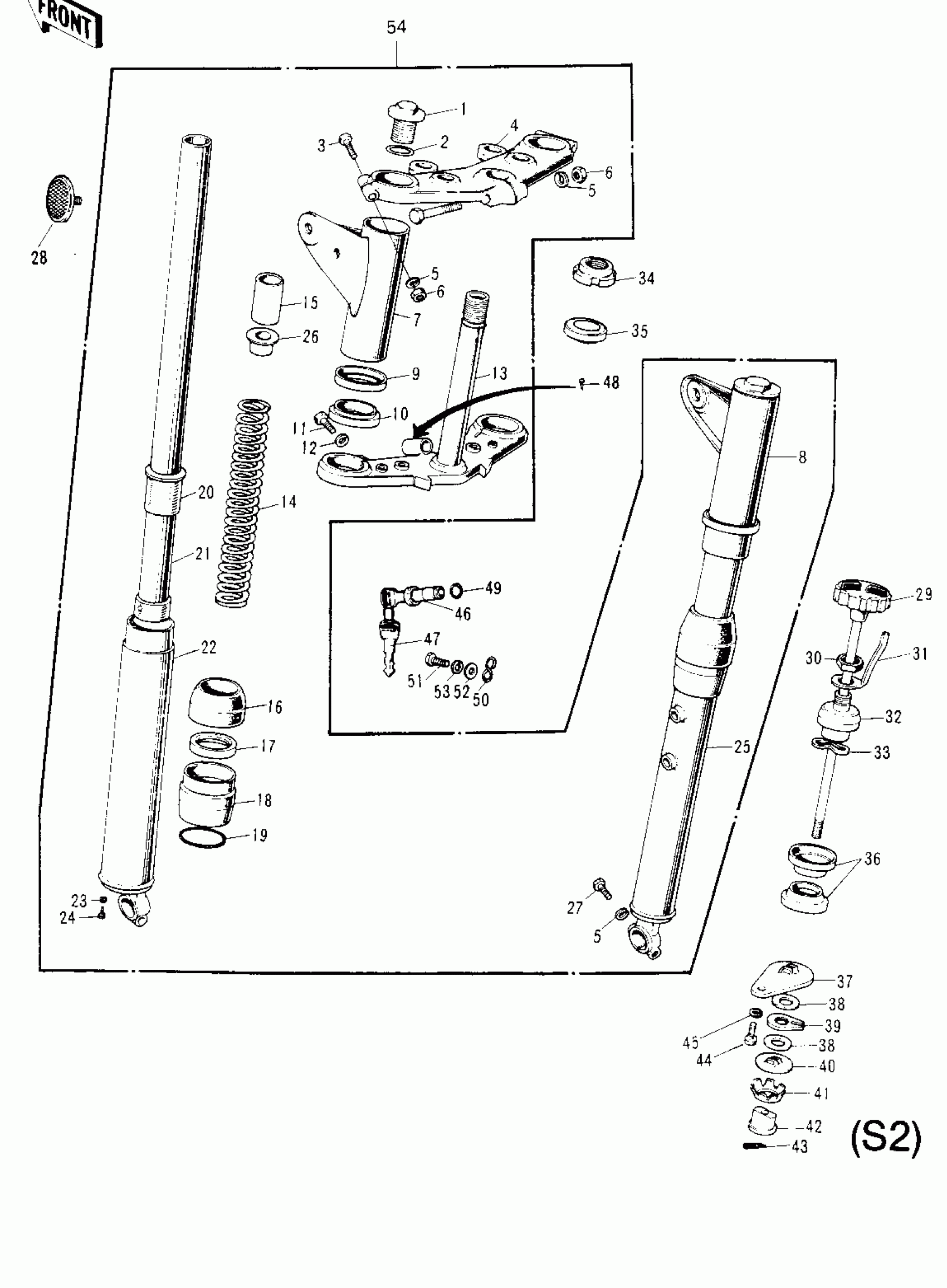

Kawasaki Mach II FRONT FORK (S2) Diagram
#
1
BOLT-FORK FITTING
44041-037
Unavailable
2
'O' RING FORK TOP
44046-015
Unavailable
3
BOLT FLANGED 8X55
92001-1398
Unavailable
4
HEAD-STEERING STEM
44039-037
Unavailable
5
WASHER SPRING 8MM
461F0800
Unavailable
6
NUT,8MM
311B0800
Unavailable
7
COVER-L.H FORK,BLACK
44033-038-21
Unavailable
8
COVER-R.H FORK,BLACK
44034-037-21
Unavailable
9
WASHER FORK COVER
44043-034
Unavailable
10
GASKET FORK COVER
44045-029
Unavailable
11
BOLT,HEX HEAD 10X35
92001-1252
Unavailable
12
WASHER SPRING 10MM
461F1000
Unavailable
13
STEM-STEERING
44037-037
Unavailable
14
SPRING-FORK
44026-038
Unavailable
15
SPACER-FORK SPRG GIDE
44028-022
Unavailable
16
DUST SHIELD
44010-017
Unavailable
17
OIL SEAL,FORK
44009-020
Unavailable
17
OIL SEAL,FORK
44009-020
Unavailable
18
NUT FORK OUTER TUBE
44007-015
Unavailable
19
'O' RING OUTER TUBE
44046-016
Unavailable
20
GUIDE FORK INNER TUBE
44015-011
Unavailable
21
TUBE-FORK INNER
44013-031
Unavailable
22
TUBE,LH,FORK OUTER
44005-039
Unavailable
23
GASKET,FORK DRAIN PLUG
44045-002
Unavailable
24
SCREW PAN HEAD 4X8
220B0408
Unavailable
25
TUBE,RH,FORK OUTER
44006-037
Unavailable
26
GUIDE-FORK SPRING
44029-019
Unavailable
27
BOLT FRNT AXLE PINCH
44041-017
Unavailable
28
REFLECTOR-REFLEX,FRNT
28001-008
Unavailable
29
KNOB STEERING DAMPER
46101-004
Unavailable
30
NUT 12MM
315N1200A
Unavailable
31
SPRING STRG DAMP KNOB
46126-001
Unavailable
32
BOLT-STEERING STEM
92090-020
Unavailable
33
WASHER-WAVE
46100-002
Unavailable
34
NUT,30MM
92090-007
Unavailable
35
CAP,STEERING STEM
46098-016
Unavailable
36
RACE,STEERING STEM BEARING
92047-006
Unavailable
37
PLATE STRG DAMP STEEL
46106-005
Unavailable
38
PLATE STRG DAMP FRCTN
46104-005
Unavailable
39
PLATE STRG DAMP ANCHR
46105-005
Unavailable
40
PLATE STRG DAMP STEEL
46106-006
Unavailable
41
SPRING-STEERING DAMP
46124-006
Unavailable
42
NUT STRG DAMPER GUIDE
46125-005
Unavailable
43
PIN-COTTER,1.6X15
550D1615
Unavailable
44
BOLT SMALL
114G0812
Unavailable
45
WASHER SPRING 8MM
461F0800
Unavailable
46
LOCK ASSY-STEERING
27016-024
Unavailable
47
KEY SET #685
27008-042-85
Unavailable
47
KEY SET #689
27008-042-89
Unavailable
47
KEY SET #701
27008-042-01
Unavailable
47
KEY SET #705
27008-042-05
Unavailable
48
RIVET
92099-001
Unavailable
49
CIRCLIP-STEERING LOCK
92033-024
Unavailable
50
CLAMP,CABLE
92037-046
Unavailable
51
BOLT-UPSET,6X12
112G0612
Unavailable
51
BOLT-UPSET,6X12
112G0612
Unavailable
52
WASHER-PLAIN-SMALL,6MM
410B0600
Unavailable
53
WASHER SPRING 6MM
461F0600
Unavailable
54
FRONT FORK ASSY,BLACK
44001-078-21
Unavailable
