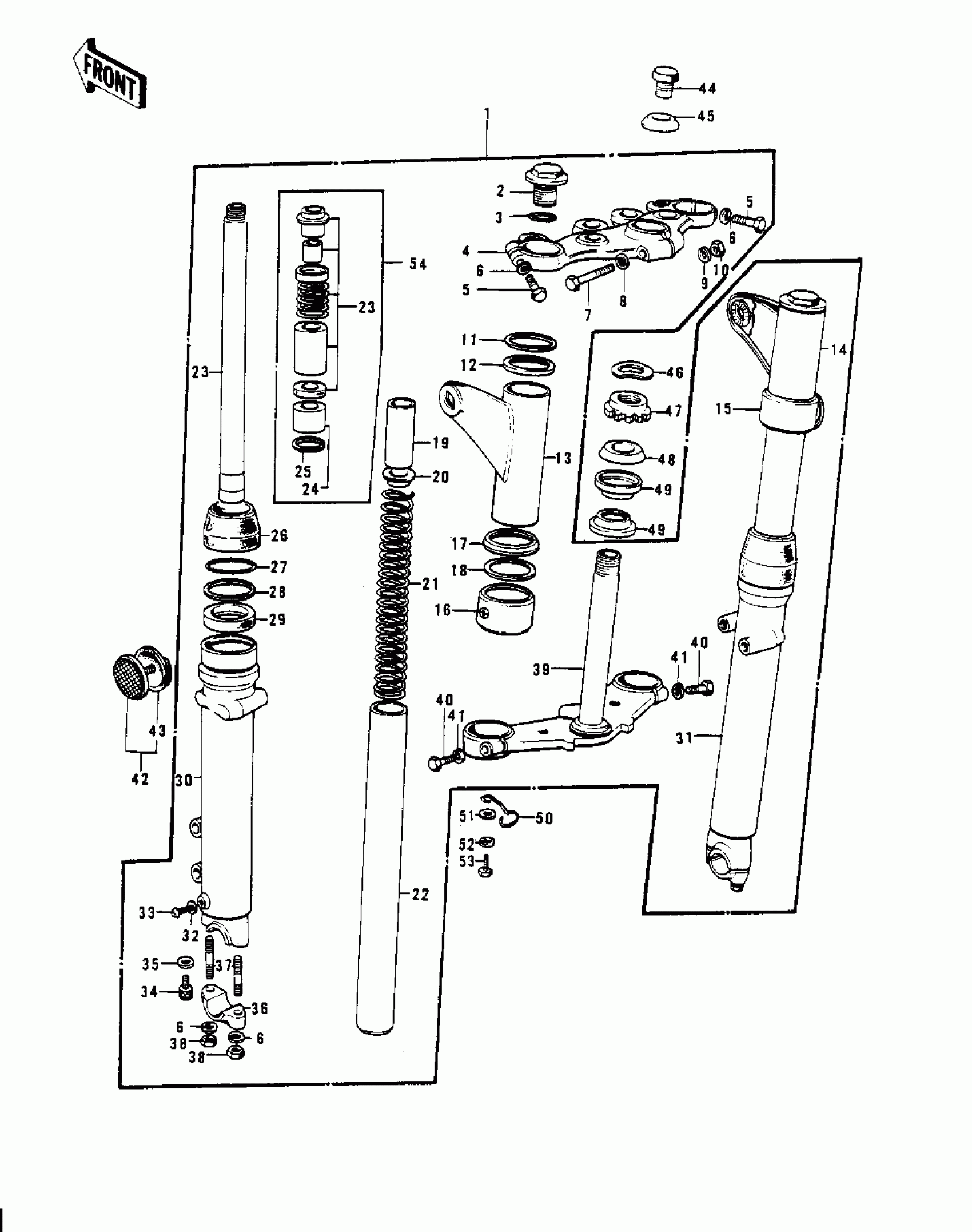

Kawasaki Mach II FRONT FORK ('74-'75 S3/S3-A) Diagram
#
1
FORK-FRONT
44001-144
Unavailable
1
FORK-FRONT
44001-144
Unavailable
2
BOLT-FORK FITTING
44041-037
Unavailable
3
RING-O,FORK TOP
92055-1012
Unavailable
4
HEAD-STEERING STEM
44039-051
Unavailable
5
BOLT-STEERING STEM HD
44041-044
Unavailable
6
WASHER SPRING 8MM
461F0800
Unavailable
7
BOLT-STEERING STEM HD
44041-042
Unavailable
8
WASHER LOCK 8MM
463H0800
Unavailable
9
WASHER PLAIN 8MM
410B0800
Unavailable
10
NUT,LOCK,8MM
92015-1124
Unavailable
10
NUT,LOCK,8MM
92015-1124
Unavailable
11
GASKET,FORK COVER
44045-039
Unavailable
12
WASHER,FORK COVER
44043-047
Unavailable
13
COVER-L.H FORK,BLACK
44033-053-21
Unavailable
13
COTER,L.H FORK
44033-067
Unavailable
14
COVER-R.H FORK,BLACK
44034-053-21
Unavailable
14
COVER,R.H FORK
44034-067
Unavailable
15
GUIDE-FORK COVER,R.H
44064-009
Unavailable
16
GUIDE-FORK COVER,L.H
44064-010
Unavailable
17
CAP,FORK COVER
44032-005
Unavailable
18
GASKET FORK COVER
44045-029
Unavailable
19
SPACER-FORK SP GUIDE
44028-026
Unavailable
20
GUIDE-FORK SPRING
44029-019
Unavailable
21
SPRING-FORK
44026-043
Unavailable
22
TUBE-FORK INNER
44013-038
Unavailable
23
CYLINDER-FORK
44023-005
Unavailable
23
CYLINDER-FORK
44022-026
Unavailable
23
CYLINDER-FORK
44023-005
Unavailable
24
PISTON FORK
44018-001
Unavailable
24
PISTON,FORK
44018-009
Unavailable
25
CIRCLIP FORK PISTON
44044-008
Unavailable
25
CIRCLIP,FORK PISTON
44044-019
Unavailable
26
DUST SHIELD-FORK
44010-019
Unavailable
27
CIRCLIP OIL SEAL FIT
44044-005
Unavailable
28
WASHER OIL SEAL FIT
44043-023
Unavailable
29
OIL SEAL,FORK
44009-020
Unavailable
30
TUBE,LH,FORK OUTER
44005-046
Unavailable
31
TUBE,RH,FORK OUTER
44006-044
Unavailable
32
GASKET,FORK DRAIN PLUG
44045-002
Unavailable
33
SCREW PAN HEAD 4X8
220B0408
Unavailable
34
BOLT,SOCKET,FORK CYLINDER
44041-040
Unavailable
35
GASKET
44045-057
Unavailable
36
HOLDER-FRONT AXLE
44063-006
Unavailable
37
BOLT-STUD,8X30
172G0830
Unavailable
38
NUT,8MM
311B0800
Unavailable
39
STEM-STEERING
44037-058
Unavailable
40
BOLT HEX HEAD 10X32
113B1032
Unavailable
41
WASHER SPRING 10MM
461F1000
Unavailable
42
REFLECTOR,REFLEX,FRNT
28001-029
Unavailable
42
REFLECTOR,REFLEX,FRNT
28001-029
Unavailable
43
DAMPER RUBBER-REFLEX
28016-002
Unavailable
44
BOLT,16X25.5
92007-031
Unavailable
45
WASHER,16X41X4
92022-230
Unavailable
46
WASHER,WAVE
46100-003
Unavailable
47
NUT,30MM
92090-007
Unavailable
48
CAP,STEERING STEM
46098-016
Unavailable
49
RACE,STEERING STEM BEARING
92047-006
Unavailable
50
CLAMP-CABLE
92037-099
Unavailable
51
WASHER-PLAIN-SMALL,6MM
410B0600
Unavailable
52
WASHER SPRING 6MM
461F0600
Unavailable
53
BOLT,6X10
112G0610
Unavailable
54
CYLINDER-FORK
44023-005
Unavailable
