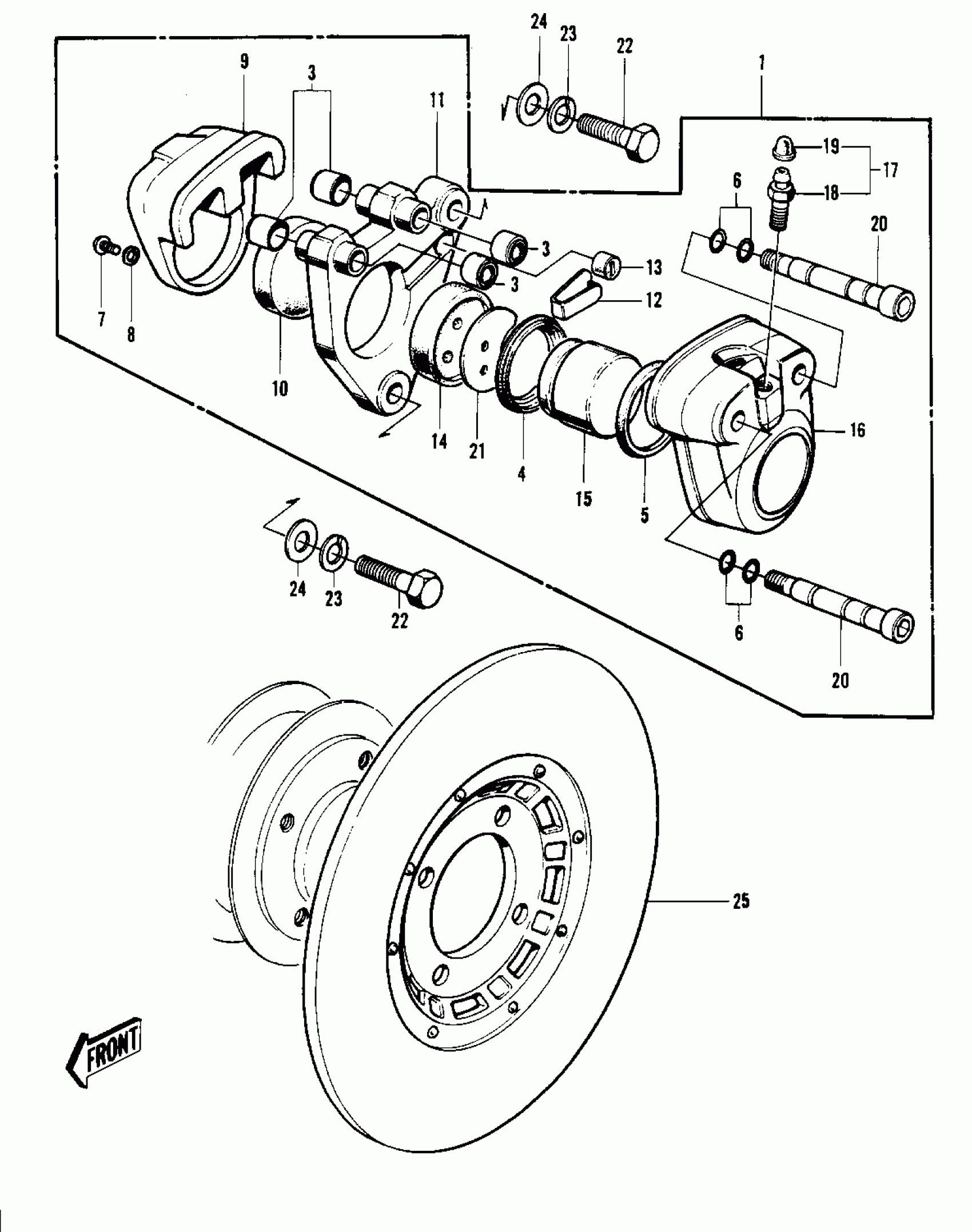

Kawasaki Mach II FRONT BRAKE ('74-'75 S3/S3-A) Diagram

#

Description

Price

1

CALIPER ASSY

43041-003

Unavailable

1

CALIPER ASSY.

43041-007

Unavailable

2

REPAIR SET,CALLIPER

43073-003

Unavailable

3

DUST SEAL-SHAFT

43052-002

Unavailable

4

DUST SEAL-PISTON

43054-002

Unavailable

5

PACKING,PISTON SEAL

43049-001

Unavailable

6

"0" RING,SHAFT

43053-001

Unavailable

7

SCREW PAN HEAD 6X12

220B0612

Unavailable

8

WASHER SPRING 6MM

461F0600

Unavailable

9

CALIPER B

43043-002

Unavailable

10

PAD B

43051-001

Unavailable

11

HOLDER-CALIPER

43044-003

Unavailable

12

STOPPER-PAD A

43046-001

Unavailable

13

BUSHING-RUBBER

43047-001

Unavailable

14

PAD A

43082-001

Unavailable

15

PISTON-CALIPER

43048-001

Unavailable

16

CALIPER A

43042-003

Unavailable

17

BLEEDER SET

43085-001

Unavailable

18

BREATHER

43056-003

Unavailable

19

CAP-BREATHER

43057-003

Unavailable

20

SHAFT

43045-002

Unavailable

21

SHIM

43076-001

Unavailable

22

BOLT

92007-032

Unavailable

23

WASHER SPRING 10MM

461F1000

Unavailable

24

WASHER PLAIN 10MM

410B1000

Unavailable

25

DISC PLATE,FRONT BRAK

41080-006

Unavailable

25

DISC PLATE,FRONT BRAK

41080-006

Unavailable
