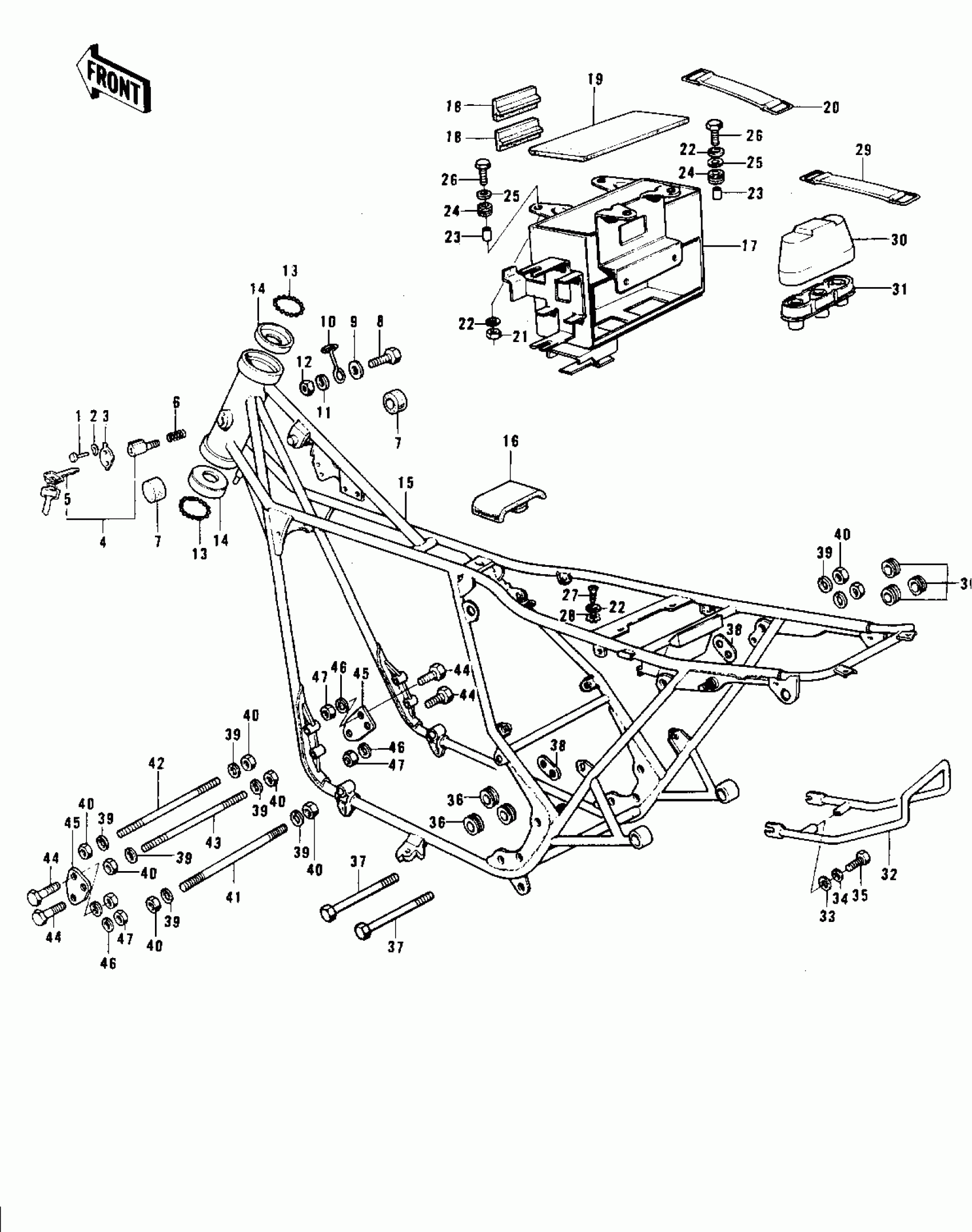

Kawasaki Mach II FRAME/FRAME FITTINGS ('74-'75 S3/S3-A) Diagram
#
1
SCREW,3.51MM
92008-007
Unavailable
2
WASHER,WAVE
92097-003
Unavailable
3
CAP,STEERING LOCK
11012-1134
Unavailable
4
LOCK ASSY,STEERING
27016-038
Unavailable
5
KEY SET,#901
27008-055-01
Unavailable
5
KEY SET,#910
27008-055-10
Unavailable
6
SPRING,STEERING LOCK
27032-001
Unavailable
7
DAMPER,FUEL TANK
92075-101
Unavailable
8
BOLT HEX HEAD 8X16
110N0816
Unavailable
9
WASHER-PLAIN-SMALL,8MM
410D0800
Unavailable
10
CLAMP,CABLE
92037-139
Unavailable
11
WASHER SPRING 8MM
461F0800
Unavailable
12
NUT,8MM
311B0800
Unavailable
13
BALL-STEEL,1/4
600A0800
Unavailable
14
RACE,STEERING STEM BEARING
92048-006
Unavailable
15
FRAME
32002-129
Unavailable
15
FRAME
32002-129
Unavailable
16
DAMPER RUBBER,FL TANK
92075-214
Unavailable
17
CASE,BATTERY
32097-031
Unavailable
18
SEAT RECTIFIER RUBBER
32103-003
Unavailable
19
MAT BATTERY
32103-006
Unavailable
20
BAND,L=90
92072-045
Unavailable
21
NUT 6MM
311B0600
Unavailable
22
WASHER SPRING 6MM
461F0600
Unavailable
23
COLLAR,6.8X10X8.5
92027-129
Unavailable
24
DAMPER RUBBER
92075-076
Unavailable
25
WASHER,6.5X20X1.6
92022-125
Unavailable
26
BOLT 6X22
112B0622
Unavailable
27
SCREW-PAN-CROS,6X14
220B0614
Unavailable
28
WASHER LOCK 6MM
464H0600
Unavailable
29
BAND,L=82
92072-053
Unavailable
30
COVER-SPARK PLUG
32132-003
Unavailable
31
HOLDER-SPARK PLUG COV
32132-002
Unavailable
32
STAY,REAR FENDER
35032-028
Unavailable
33
WASHER PLAIN 8MM
411B0800
Unavailable
34
WASHER SPRING 8MM
461F0800
Unavailable
35
BOLT,8X20
115G0820
Unavailable
36
GROMMET
92071-056
Unavailable
37
BOLT,FLANGED,10X110
92001-1602
Unavailable
38
PLATE-ENGINE MOUNT
32030-023
Unavailable
39
WASHER SPRING 10MM
461F1000
Unavailable
40
NUT-HEX-FINE,10MM
314B1000
Unavailable
41
BOLT,10X237
92003-182
Unavailable
42
BOLT,10X225
92003-181
Unavailable
43
BOLT,10X252
92003-209
Unavailable
44
BOLT,10X45
92001-1182
Unavailable
44
BOLT,FLANGED,8X60
92001-1581
Unavailable
45
PLATE,ENGINE MOUNT,FR
32030-030
Unavailable
46
WASHER SPRING 8MM
461F0800
Unavailable
47
NUT,8MM
311B0800
Unavailable
