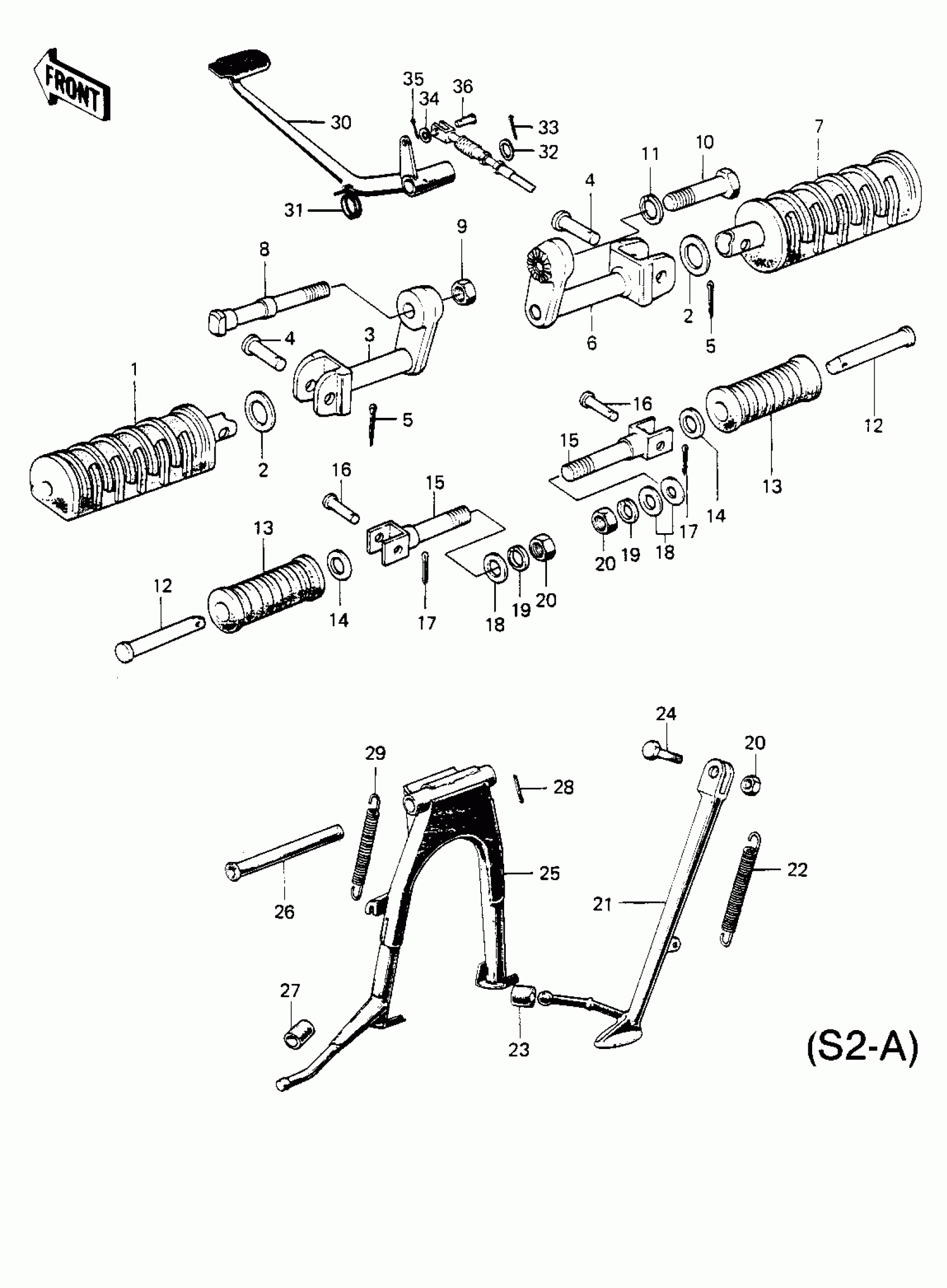

Kawasaki Mach II FOOTRESTS/STANDS/BRAKE PEDAL (S2-A) Diagram
#
1
BAR-FOOTREST,L.H
34028-011
Unavailable
2
WASHER PL 22.5X36X2.3
92022-204
Unavailable
3
HOLDER-FOTREST BAR LH
34003-040
Unavailable
4
PIN,8X31
92043-080
Unavailable
5
PIN-COTTER,2.5X15
550D2515
Unavailable
6
HOLDER-FOTREST BAR RH
34003-041
Unavailable
7
BAR-FOOTREST,R.H
34028-012
Unavailable
8
BOLT-L.H FOOTREST FIT
92003-076
Unavailable
9
NUT-HEX-FINE
315B1200
Unavailable
10
BOLT,R.H.FOOTREST FIT
92001-1068
Unavailable
11
WASHER-SPRING,12MM
461F1200
Unavailable
12
STEP,RR
34028-009
Unavailable
13
RUBBER,REAR FOOTREST
92076-024
Unavailable
13
RUBBER,REAR FOOTREST
92076-024
Unavailable
14
WASHER-PLAIN (OPT)
92022-199
Unavailable
15
HOLDER-STEP,RR
34029-008
Unavailable
16
PIN,6X28
92043-1464
Unavailable
17
PIN-COTTER,2.0X12
550D2012
Unavailable
18
WASHER PLAIN 10MM
410B1000
Unavailable
19
WASHER SPRING 10MM
461F1000
Unavailable
20
NUT-HEX-FINE,10MM
314B1000
Unavailable
21
STAND-SIDE
34024-051
Unavailable
21
STAND-SIDE
34024-051
Unavailable
22
SPRING MAIN STAND
34023-005
Unavailable
23
DAMPER RUBB SIDE STND
92075-031
Unavailable
24
BOLT,HEX HEAD 10X35
92001-1252
Unavailable
25
STAND-MAIN
34011-028
Unavailable
26
SHAFT MAIN STAND
34019-011
Unavailable
27
DAMPER RUBB-MAIN STND
92075-115
Unavailable
28
PIN-COTTER,3.0X25
550D3025
Unavailable
29
SPRING-MAIN STAND
34023-010
Unavailable
30
PEDAL,BRAKE
43001-060
Unavailable
31
SPRING,BRAKE PEDAL
43005-033
Unavailable
32
WASHER BRAKE PEDAL
92022-085
Unavailable
33
PIN-COTTER,3.0X20
550D3020
Unavailable
34
WASHER-PLAIN-SMALL,6MM
410B0600
Unavailable
35
PIN COTTER 2.0X15
550D2015
Unavailable
36
PIN R BRK CABLE JOINT
92043-034
Unavailable
