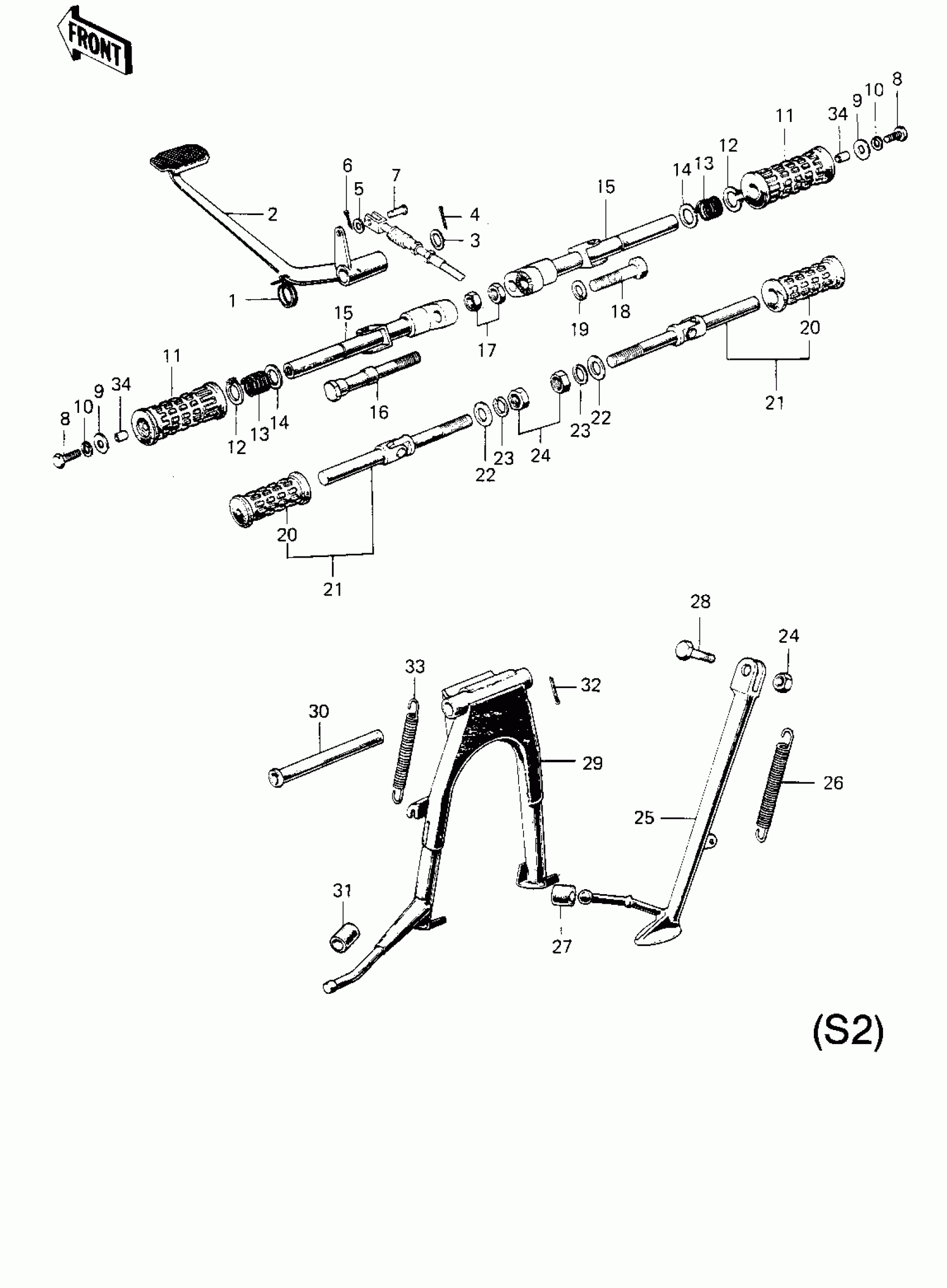

Kawasaki Mach II FOOTRESTS/STANDS/BRAKE PEDAL (S2) Diagram
#
1
SPRING,BRAKE PEDAL
43005-033
Unavailable
1
SPRING,BRAKE PEDAL
43005-033
Unavailable
2
PEDAL-BRAKE
43001-038
Unavailable
2
PEDAL,BRAKE
43001-060
Unavailable
3
WASHER BRAKE PEDAL
92022-085
Unavailable
4
PIN-COTTER,3.0X20
550D3020
Unavailable
5
WASHER-PLAIN-SMALL,6MM
410B0600
Unavailable
6
PIN COTTER 2.0X15
550D2015
Unavailable
7
PIN R BRK CABLE JOINT
92043-034
Unavailable
8
BOLT-UPSET
112G0618
Unavailable
9
WASHER,6.5X20X1.6
92022-125
Unavailable
10
WASHER SPRING 6MM
461F0600
Unavailable
11
RUBBER-FOOTREST
92076-019
Unavailable
12
CIRCLIP-TYPE-C,16MM
480J1600
Unavailable
13
SPRING FOOTREST PEG
34006-002
Unavailable
14
WASHER FOLDING PEG
92022-049
Unavailable
15
BAR-FOOTREST
34003-028
Unavailable
16
BOLT-L.H FOOTREST FIT
92003-076
Unavailable
17
NUT-HEX-FINE
315B1200
Unavailable
18
BOLT,R.H.FOOTREST FIT
92001-1068
Unavailable
19
WASHER-SPRING,12MM
461F1200
Unavailable
20
RUBBER REAR FOOTREST
92076-008
Unavailable
21
BAR SET-REAR FOOTREST
34030-001
Unavailable
22
WASHER PLAIN 10MM
410B1000
Unavailable
23
WASHER SPRING 10MM
461F1000
Unavailable
24
NUT-HEX-FINE,10MM
314B1000
Unavailable
25
STAND-SIDE
34024-051
Unavailable
25
STAND-SIDE
34024-051
Unavailable
26
SPRING MAIN STAND
34023-005
Unavailable
27
DAMPER RUBB SIDE STND
92075-031
Unavailable
28
UNAVAILABLE IN PRICE BOOK
11381035
Unavailable
29
STAND-MAIN
34011-028
Unavailable
30
SHAFT MAIN STAND
34019-011
Unavailable
31
DAMPER RUBB-MAIN STND
92075-115
Unavailable
32
PIN-COTTER,3.0X25
550D3025
Unavailable
33
SPRING-MAIN STAND
34023-010
Unavailable
34
COLLAR
92027-103
Unavailable
