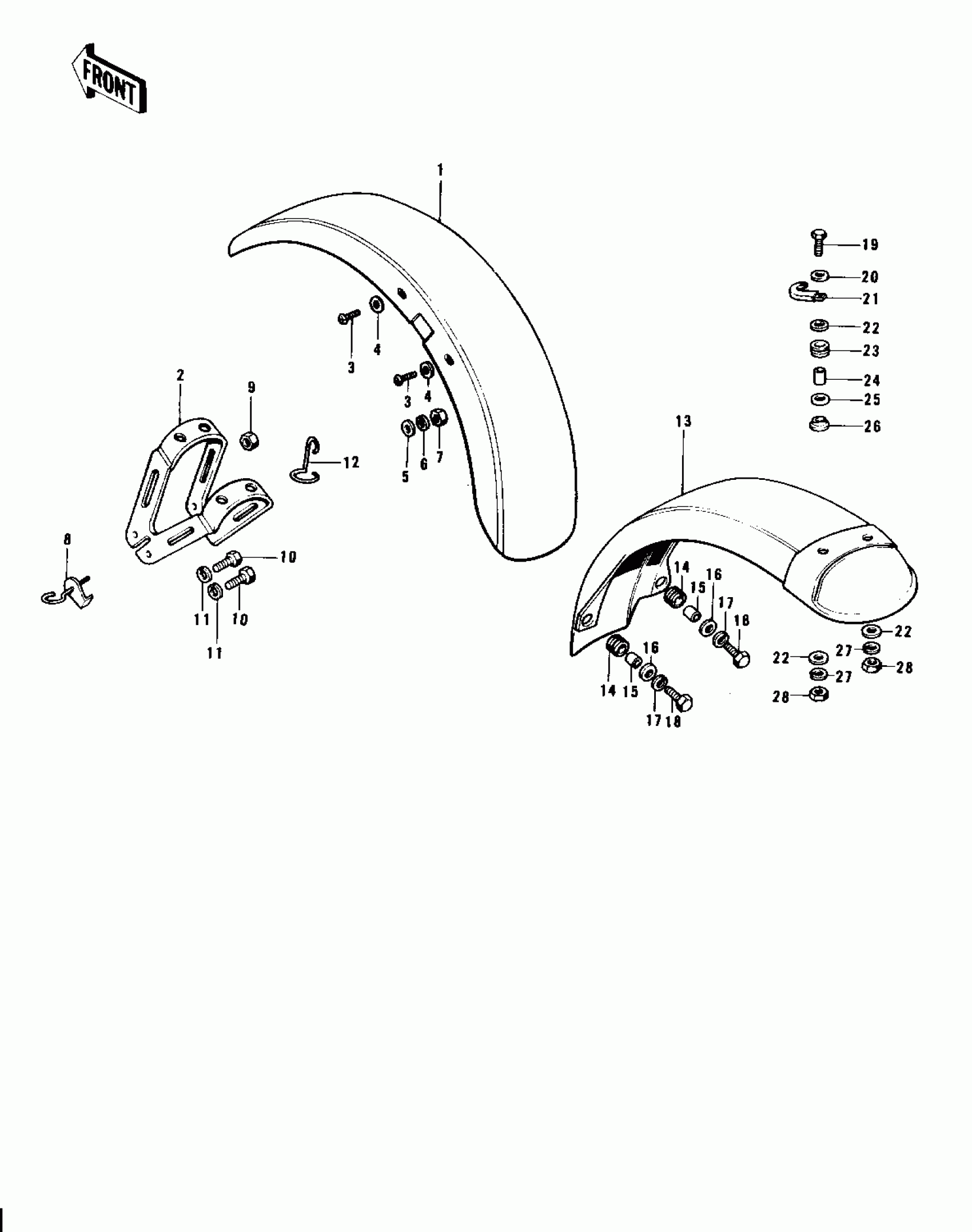

Kawasaki Mach II FENDERS ('73-'74 S3/S3-A) Diagram
#
Description
Price
1
FENDER-FR
35004-084
Unavailable
2
BRACE,FRONT FENDER
35009-028
Unavailable
3
SCREW PAN HEAD 6X14
220E0614
Unavailable
4
WASHER-PLAIN,6MM
411D0600
Unavailable
5
WASHER PLAIN 6MM
411B0600
Unavailable
6
WASHER SPRING 6MM
461F0600
Unavailable
7
NUT 6MM
311B0600
Unavailable
8
CLAMP
92037-097
Unavailable
9
NUT,LOCK,5MM
92019-014
Unavailable
10
BOLT-SMALL-UPSET,8X16
115G0816
Unavailable
11
WASHER SPRING 8MM
461F0800
Unavailable
12
CLAMP,CABLE
92037-138
Unavailable
13
FENDER-RR
35022-099
Unavailable
14
DAMPER RUBBER
92075-105
Unavailable
15
COLLAR
92027-103
Unavailable
16
WASHER,6.5X20X1.6
92022-125
Unavailable
17
WASHER SPRING 6MM
461F0600
Unavailable
18
BOLT-UPSET,6X16
112G0616
Unavailable
19
BOLT HEX HEAD 6X36
110N0636
Unavailable
20
WASHER PLAIN 6MM
411B0600
Unavailable
21
CLAMP
92037-113
Unavailable
22
WASHER,7X24X1.6
92022-228
Unavailable
23
DAMPER,FENDER
92075-121
Unavailable
24
COLLAR,6.8X10X12
92027-162
Unavailable
25
WASHER,7X27X1.6
92022-227
Unavailable
26
DAMPER RUBBER,RR FEND
92075-133
Unavailable
27
WASHER SPRING 6MM
461F0600
Unavailable
28
NUT 6MM
311B0600
Unavailable
