1975 Kawasaki Mach Ii Engine Covers Diagram

← All diagrams

Find the part on the Engine Covers diagram for your 1975 Kawasaki Mach Ii, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

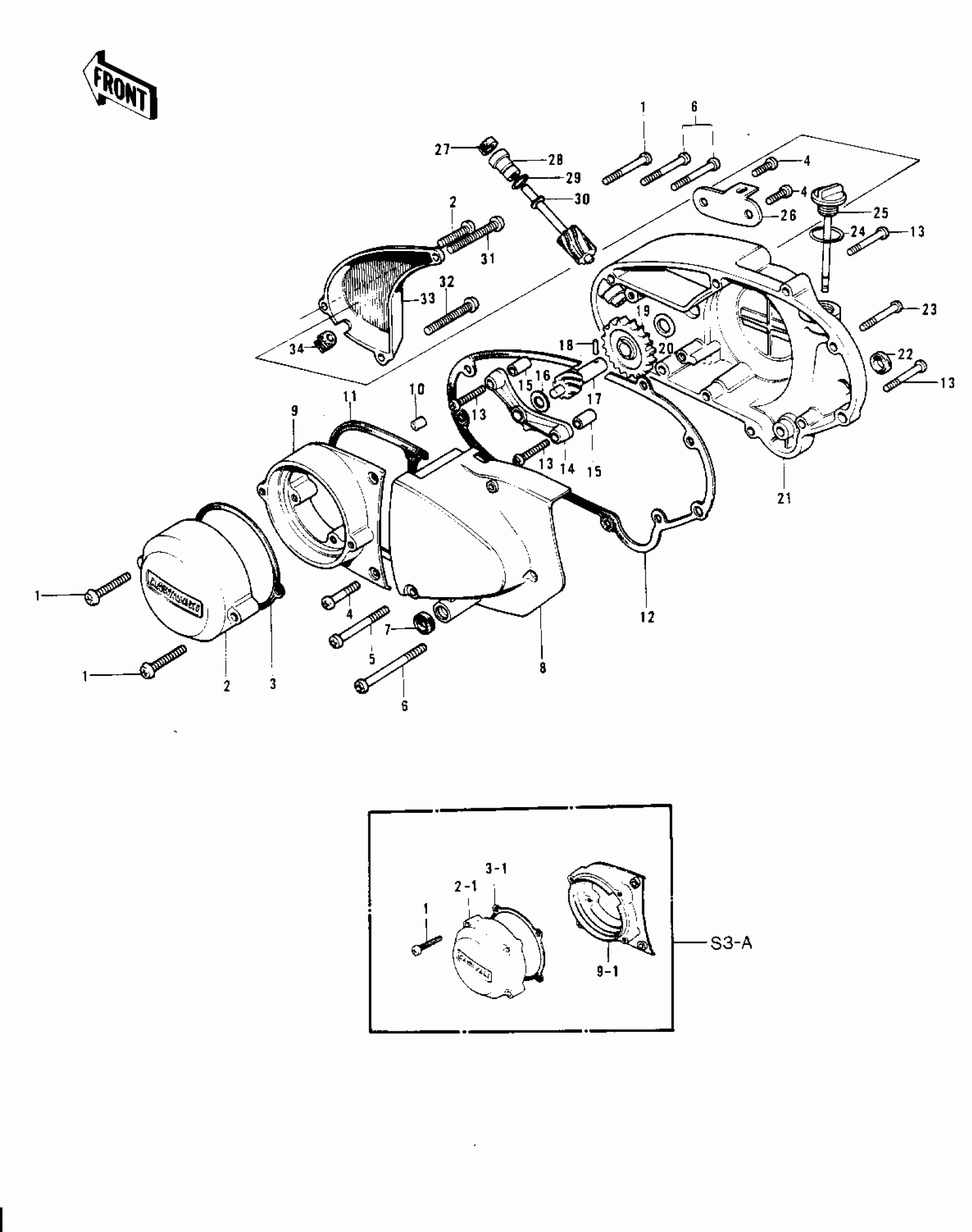

1975 Kawasaki Mach Ii Engine Covers Diagram

#

Description
Price
Status
Order Qty

1

SCREW PAN HEAD 6X35

220B0635

Out of stock

1

SCREW PAN HEAD 6X35

220B0635

Out of stock

2

CAP,BREAKER POINT,BUF

14027-016-80

Out of stock

2-1

COVER, GENERATOR,BUFF

14031-1030

Out of stock

2-1

COVER, GENERATOR,BUFF

14031-1030

Out of stock

3

GASKET-POINT CAP

14050-005

Out of stock

3-1

GASKET,POINT CAP

14050-009

Out of stock

4

SCREW-PAN-CROS,6X20,WHITE

220B0620

Out of stock

5

SCREW PAN HEAD 6X45

220B0645

Out of stock

6

SCREW PAN HEAD 6X55

220B0655

Out of stock

7

SEAL-OIL

92049-1249

Out of stock

8

COVER,CHAIN CASE,BUFF

14026-022-80

Out of stock

9

COVER,R.H ENGINE,BUFF

14031-086-80

Out of stock

9-1

COVER,L.H ENG,BUFF

14031-089-80

Out of stock

10

PIN,DOWEL,6.3X8X14

92042-007

Out of stock

11

GASKET,L.H ENG COVER

14045-022

Out of stock

12

GASKET-R.H ENGINE COV

14046-019

Out of stock

13

SCREW PAN HEAD 6X30

220B0630

Out of stock

14

HOLDER-TACHOMETER GR

14018-005

Out of stock

15

PIN,DOWEL,6.3X8X14

92042-007

Out of stock

16

WASHER THRUST

92026-026

Out of stock

17

GEAR-TACHOMETER

13224-008

Out of stock

18

PIN,DOWEL

92042-035

Out of stock

19

GEAR-OIL PUMP

16085-017

Out of stock

20

WASHER THRUST

92026-025

Out of stock

21

COVER,R.H,ENG. CLEAR

14032-1018

Out of stock

21

COVER,R.H,ENG. CLEAR

14032-1018

Out of stock

22

SEAL-OIL,SB16244

92049-002

Out of stock

23

SCREW PAN HEAD 6X25

220B0625

Out of stock

24

O RING,20MM

670B2020

Out of stock

25

PLUG-OIL FILLER

16115-017

Out of stock

26

HOLDER

14044-006

Out of stock

27

OIL SEAL

92054-004

Out of stock

28

BUSH

92028-075

Out of stock

29

RING-O,12X1.5

92055-025

Out of stock

30

SHAFT-TACHOMETER GEAR

13226-005

Out of stock

31

SCREW-PAN HEAD,6X90

220B0690

Out of stock

32

SCREW PAN HEAD 6X100

220B06100

Out of stock

33

COVER,OIL PUMP,BUFF

14030-030-80

Out of stock

34

GROMMET-R.H ENG COVER

14038-030

Out of stock
