1977 Kawasaki KH400-A4 Engine Covers Diagram

← All diagrams

Find the part on the Engine Covers diagram for your 1977 Kawasaki KH400-A4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

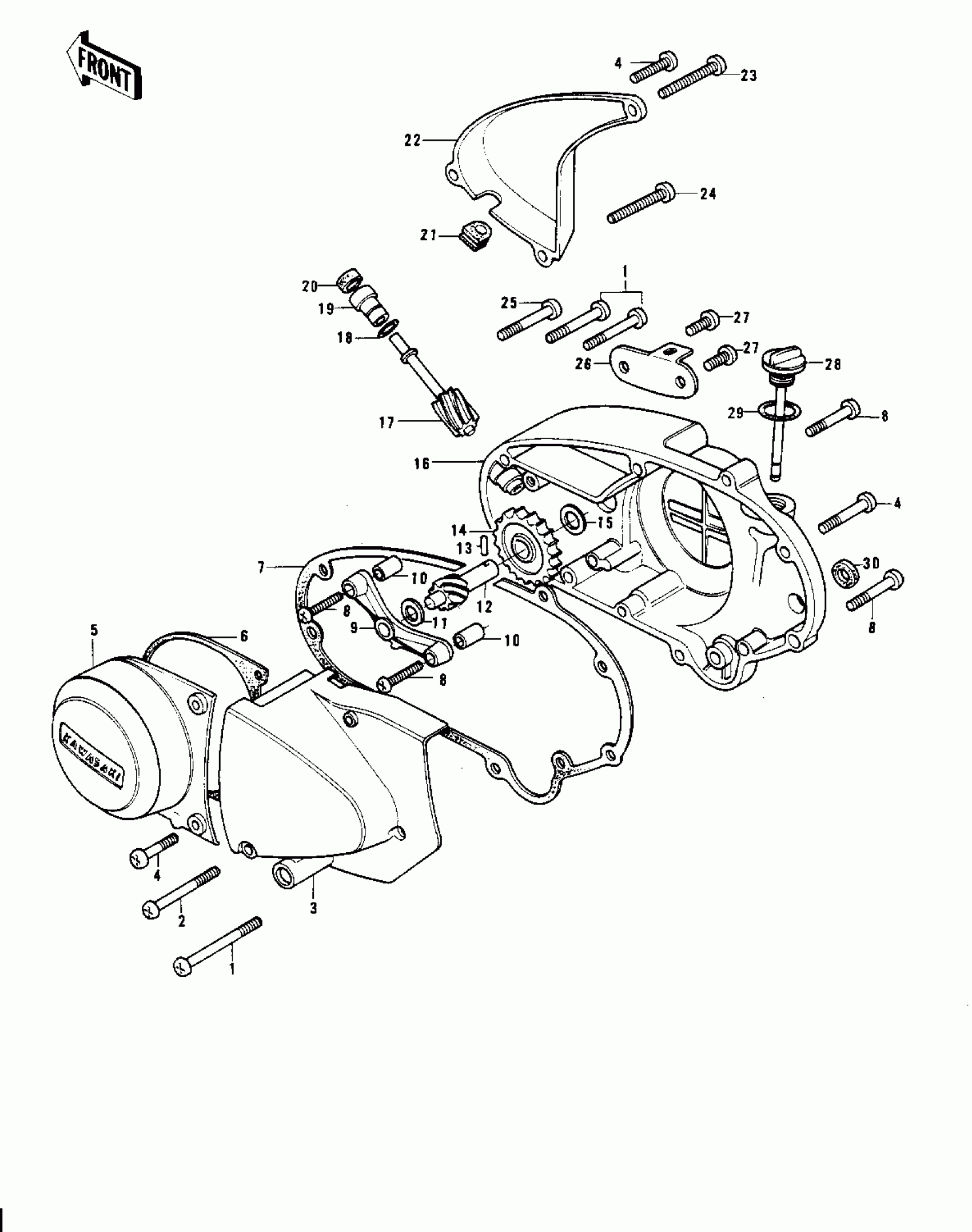

1977 Kawasaki KH400-A4 Engine Covers Diagram

#

Description
Price
Status
Order Qty

1

SCREW PAN HEAD 6X55

220B0655

Out of stock

2

SCREW PAN HEAD 6X45

220B0645

Out of stock

3

COVER,CHAIN CASE,BUFF

14026-022-80

Out of stock

4

SCREW PAN HEAD 6X25

220B0625

Out of stock

5

COVER,L.H,ENGINE,BUFF

14031-1031

Out of stock

5

COVER,L.H,ENGINE,BUFF

14031-1031

Out of stock

6

GASKET,L.H ENG COVER

14045-028

Out of stock

7

GASKET-R.H ENGINE COV

14046-019

Out of stock

8

SCREW PAN HEAD 6X30

220B0630

Out of stock

9

HOLDER-TACHOMETER GR

14018-005

Out of stock

10

PIN,DOWEL,6.3X8X14

92042-007

Out of stock

11

WASHER THRUST

92026-026

Out of stock

12

GEAR-TACHOMETER

13224-008

Out of stock

13

PIN,DOWEL

92042-035

Out of stock

14

GEAR-OIL PUMP

16085-017

Out of stock

15

WASHER THRUST

92026-025

Out of stock

16

COVER,R.H,ENG. CLEAR

14032-1018

Out of stock

16

COVER,R.H,ENG. CLEAR

14032-1018

Out of stock

17

SHAFT-TACHOMETER GEAR

13226-005

Out of stock

18

RING-O,12X1.5

92055-025

Out of stock

19

BUSH

92028-075

Out of stock

20

OIL SEAL

92054-004

Out of stock

21

GROMMET-R.H ENG COVER

14038-030

Out of stock

22

COVER,OIL PUMP,BUFF

14030-030-80

Out of stock

23

SCREW-PAN HEAD,6X90

220B0690

Out of stock

24

SCREW PAN HEAD 6X100

220B06100

Out of stock

25

SCREW PAN HEAD 6X35

220B0635

Out of stock

26

HOLDER

14044-006

Out of stock

27

SCREW-PAN-CROS,6X20,WHITE

220B0620

Out of stock

28

PLUG-OIL FILLER

16115-017

Out of stock

29

O RING,20MM

670B2020

Out of stock

30

SEAL-OIL,SB16244

92049-002

Out of stock

31

CIRCLIP

92036-017

Out of stock
