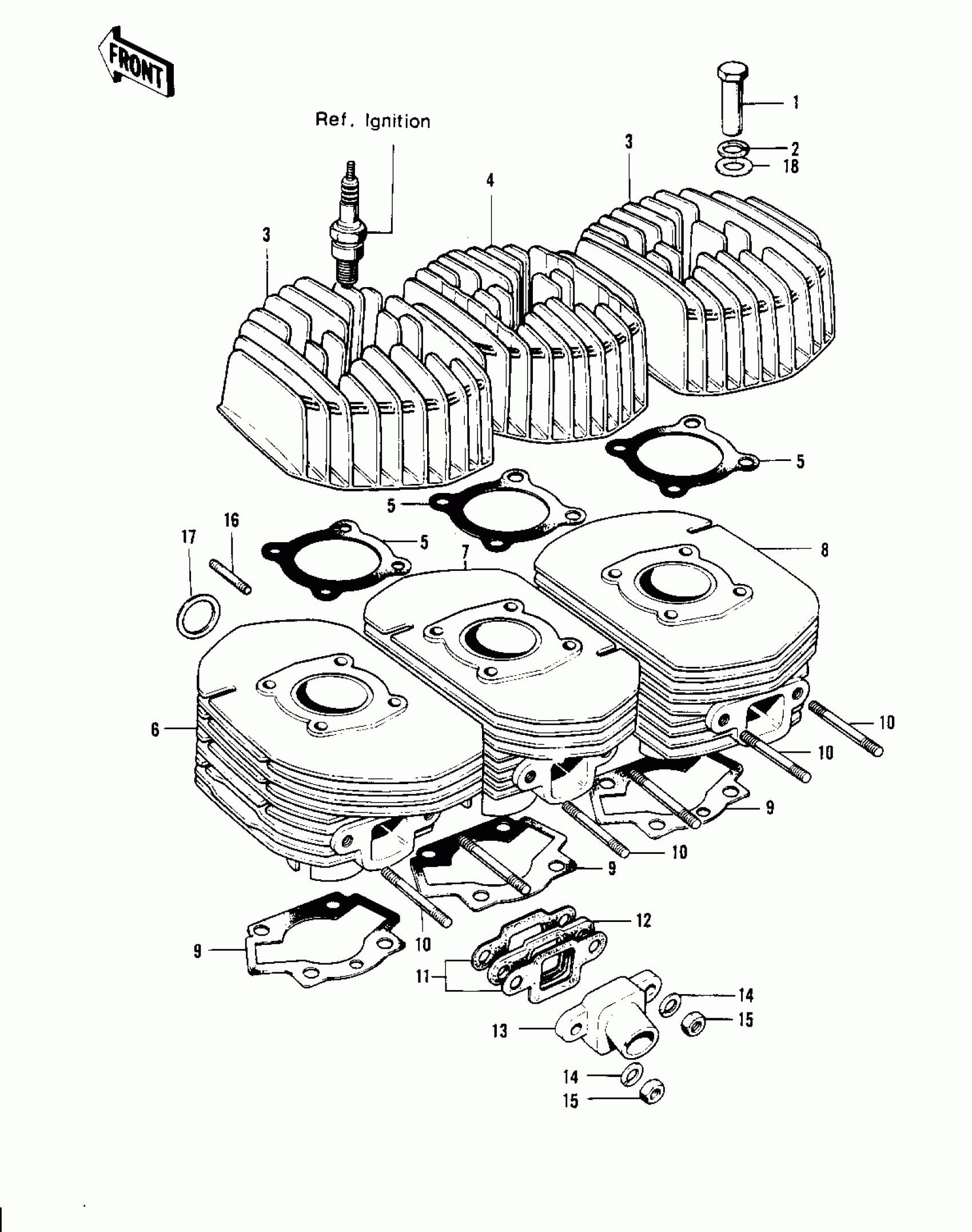

Kawasaki Mach II CYLINDER HEADS/CYLINDERS ('74-'75 S3/S3- Diagram

#

Description

Price

1

NUT 8MM

92015-020

Unavailable

2

WASHER-SPRING,12MM

461F1200

Unavailable

3

CYLINDER HEAD,L.H&R.H

11001-086-2H

Unavailable

4

CYLINDER HEAD,CENTER

11001-087-2H

Unavailable

5

GASKET,CYLINDER HEAD

11004-061

Unavailable

6

CYLINDER,L.H,BARREL

11005-125-2H

Unavailable

7

CYLINDER,CNTR,BARREL

11005-126-2H

Unavailable

8

CYLINDER,R.H,BARREL

11005-127-2H

Unavailable

9

GASKET,CYLINDER BASE

11009-036

Unavailable

10

BOLT-STUD,8X20

172G0820

Unavailable

11

GASKET-AIR INLET

16062-014

Unavailable

12

INSULATOR-HEAT

16061-012

Unavailable

13

INLET-AIR

16060-012

Unavailable

14

WASHER SPRING 8MM

461F0800

Unavailable

15

NUT,8MM

311B0800

Unavailable

16

STUD,8X35

92004-1009

Unavailable

16

STUD,8X35

92004-1009

Unavailable

17

GASKET EXHAUST PIPE

18067-008

Unavailable

18

WASHER,12.5X22X1.2

92022-072

Unavailable
