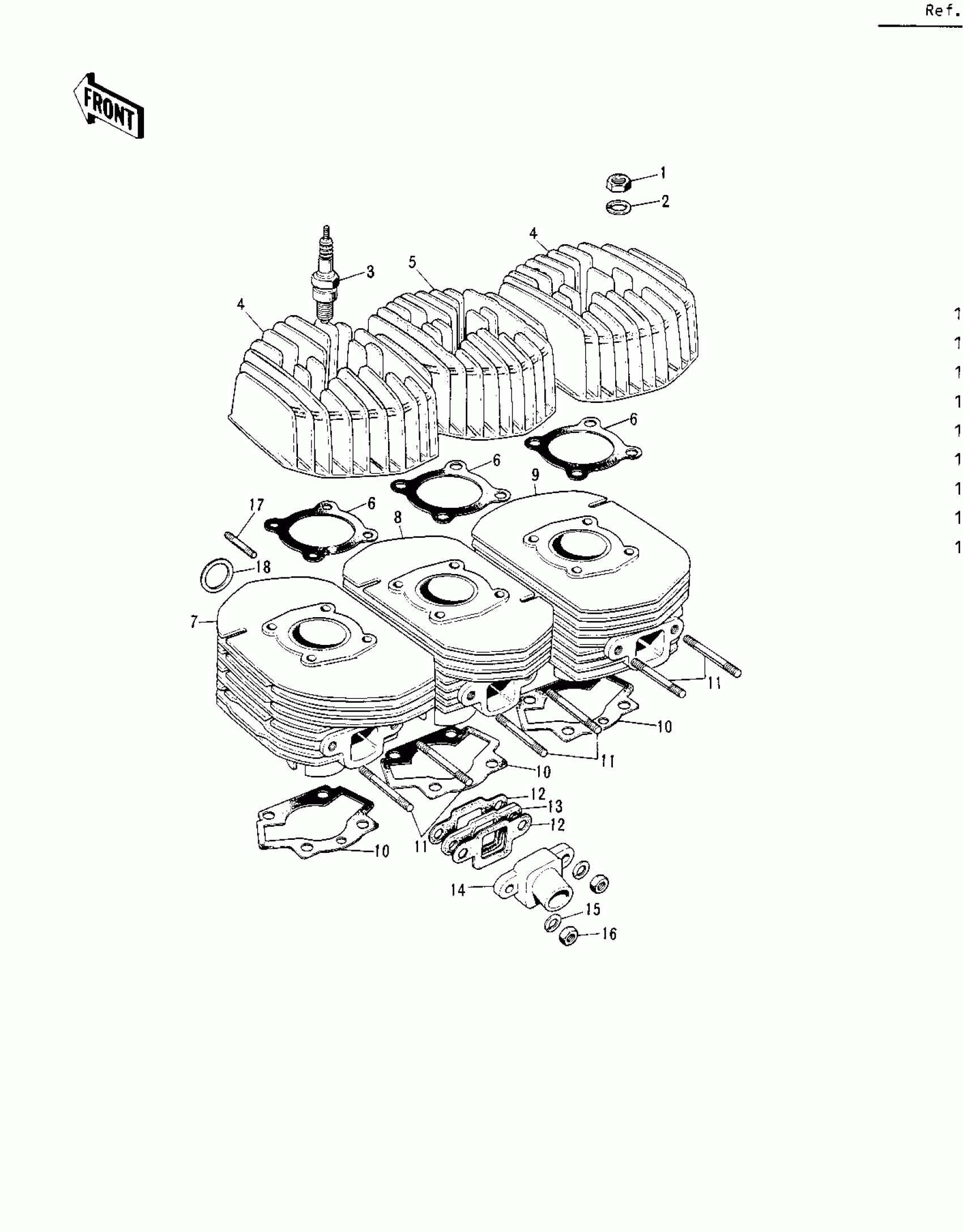

Kawasaki Mach II CYLINDER HEADS/CYLINDERS Diagram

#

Description

Price

1

NUT,8MM

311B0800

Unavailable

2

WASHER SPRING 8MM

461F0800

Unavailable

3

UNAVAILABLE IN PRICE BOOK

92070-011A

Unavailable

4

CYLINDER HEAD,BUFF

11001-053-80

Unavailable

5

CYLINDER HEAD,CENTER

11001-054

Unavailable

6

GASKET-CYLINDER HEAD

11004-043

Unavailable

7

CYLINDER,L.H

11005-068

Unavailable

8

CYLINDER-CENTER

11005-069

Unavailable

9

CYLINDER,R.H

11005-070

Unavailable

10

GASKET-CYLINDER BASE

11009-027

Unavailable

11

BOLT-STUD,8X20

172G0820

Unavailable

12

GASKET-AIR INLET

16062-014

Unavailable

13

INSULATOR-HEAT

16061-012

Unavailable

14

INLET-AIR

16060-012

Unavailable

15

WASHER SPRING 8MM

461F0800

Unavailable

16

NUT,8MM

311B0800

Unavailable

17

STUD,8X35

92004-1009

Unavailable

18

GASKET,EXHAUST PIPE

11009-1992

Unavailable

18

GASKET,EXHAUST PIPE

11009-1992

Unavailable
