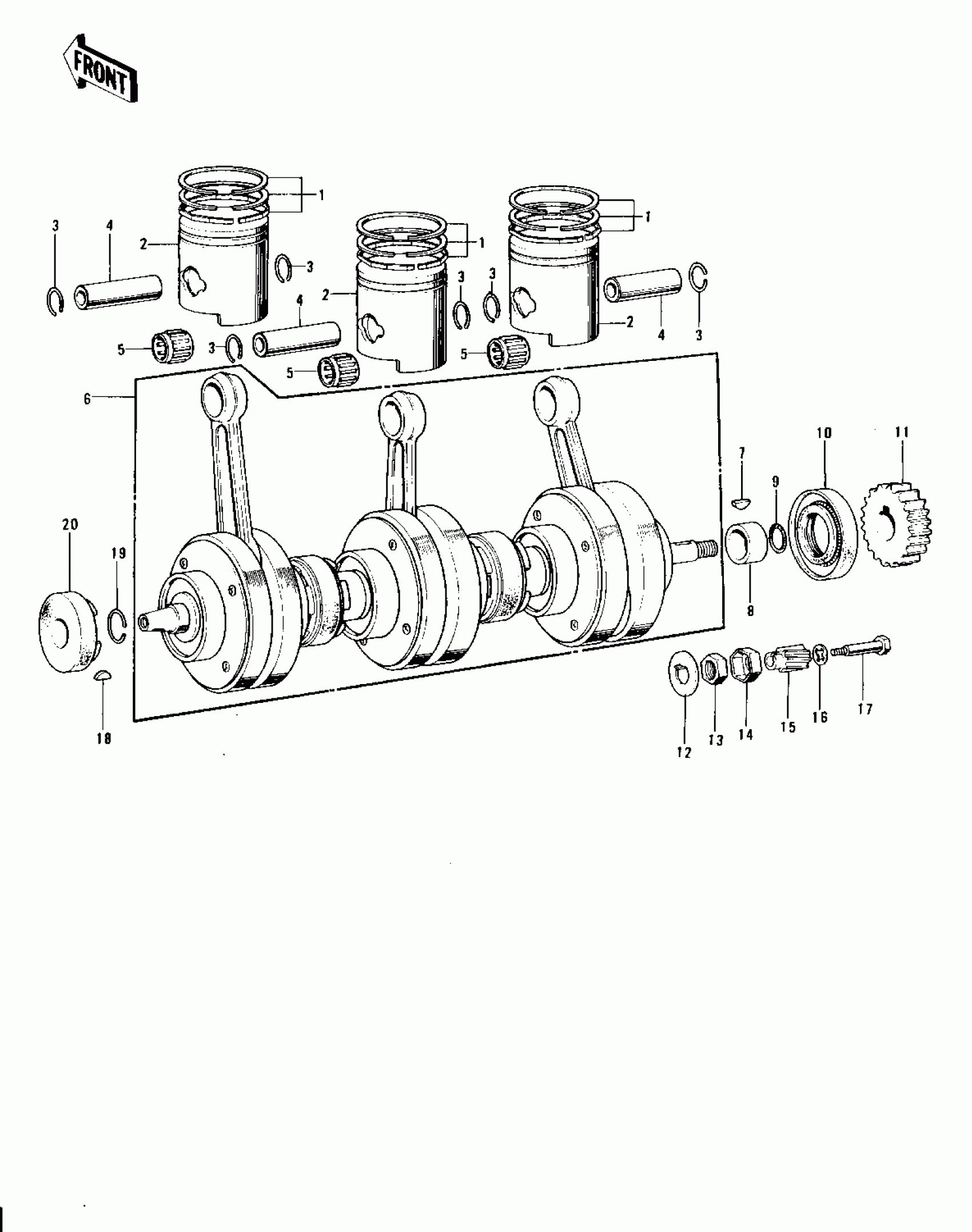

Kawasaki Mach II CRANKSHAFT/PISTONS ('74-'75 S3/S3-A) Diagram

#

Description

Price

1

RING SET,STD

13008-049

Unavailable

1

RING SET,0.020" O.S

13025-053

Unavailable

1

RING SET,0.040" O.S

13024-054

Unavailable

2

PISTON,STD

13001-071

Unavailable

2

PISTON,0.020" O.S

13029-062

Unavailable

2

PISTON,0.040" O.S

13027-060

Unavailable

3

RING-SNAP

92036-005

Unavailable

4

PIN-PISTON

13002-025

Unavailable

5

NEEDLE BEARING SM END

13033-007

Unavailable

6

CRANK CONROD ASSY

13031-1008

Unavailable

7

WOODRUFF KEY

92038-015

Unavailable

8

COLLAR CRANK OIL SEAL

92027-031

Unavailable

9

"0" RING,22MM

92055-018

Unavailable

10

OIL SEAL,TC326210

92050-052

Unavailable

11

GEAR,PRIMARY

13121-025

Unavailable

12

WASHER,LOCK,18MM

92024-067

Unavailable

13

NUT,18MM

92015-019

Unavailable

14

WASHER LOCK

92024-021

Unavailable

15

PINION-OIL PUMP

16084-014

Unavailable

16

WASHER LOCK 6MM

463H0600

Unavailable

17

BOLT-OIL PUMP GEAR

92003-068

Unavailable

18

KEY,WOODRUFF

92038-001

Unavailable

19

CIRCLIP

92036-013

Unavailable

20

OIL SEAL TCY256210

92050-041

Unavailable
