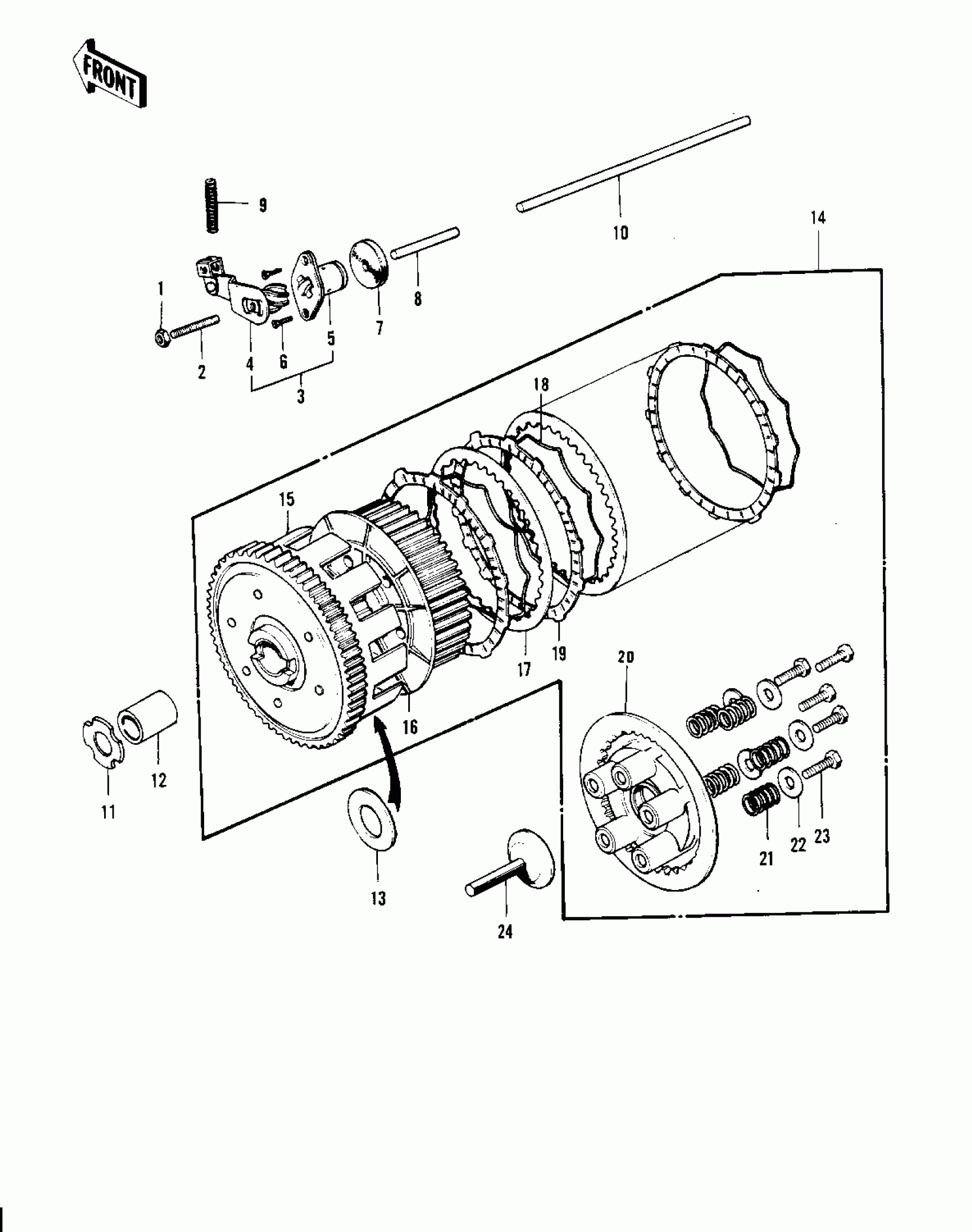

Kawasaki Mach II CLUTCH ('74-'75 S3/S3-A) Diagram
#
Description
Price
1
NUT 6MM
311B0600
Unavailable
2
SCREW SLOTTED
291Z0625
Unavailable
3
RELEASE ASSY,CLUTCH
13231-010
Unavailable
4
INNER,CLUTCH RELEASE
13102-017
Unavailable
5
OUTER,CLUTCH RELEASE
13118-008
Unavailable
6
SCREW-CSK-CROS,6X16
221B0616
Unavailable
7
OIL SEAL TC7297
92050-040
Unavailable
8
ROD CLUTCH PUSH SHORT
13116-010
Unavailable
9
SPRING,CLUTCH RELEASE
92081-096
Unavailable
10
ROD-CLUTCH PUSH,LONG
13116-019
Unavailable
11
WASHER THRUST
92022-119
Unavailable
12
BUSH CLUTCH
92028-045
Unavailable
13
WASHER-PLAIN,20MM
92022-189
Unavailable
14
CLUTCH-ASSY
13081-1070
Unavailable
14
CLUTCH-ASSY
13081-1070
Unavailable
14
CLUTCH-ASSY
13081-1070
Unavailable
15
HOUSING-COMP-CLUTCH
13095-1040
Unavailable
15
HOUSING-COMP-CLUTCH
13095-1040
Unavailable
16
HUB,CLUTCH
13087-036
Unavailable
17
PLATE CLUTCH STEEL
13089-003
Unavailable
18
RING-CLUTCH STEEL
13229-002
Unavailable
19
PLATE-FRICTION
13088-1015
Unavailable
20
PLATE-CLUTCH SPRING
13187-004
Unavailable
21
SPRING-CLUTCH
92081-095
Unavailable
22
WASHER-PLAIN,5MM
92022-167
Unavailable
23
BOLT,5X18
92003-078
Unavailable
24
PUSHER-CLTCH SPRG PLT
13116-016
Unavailable
