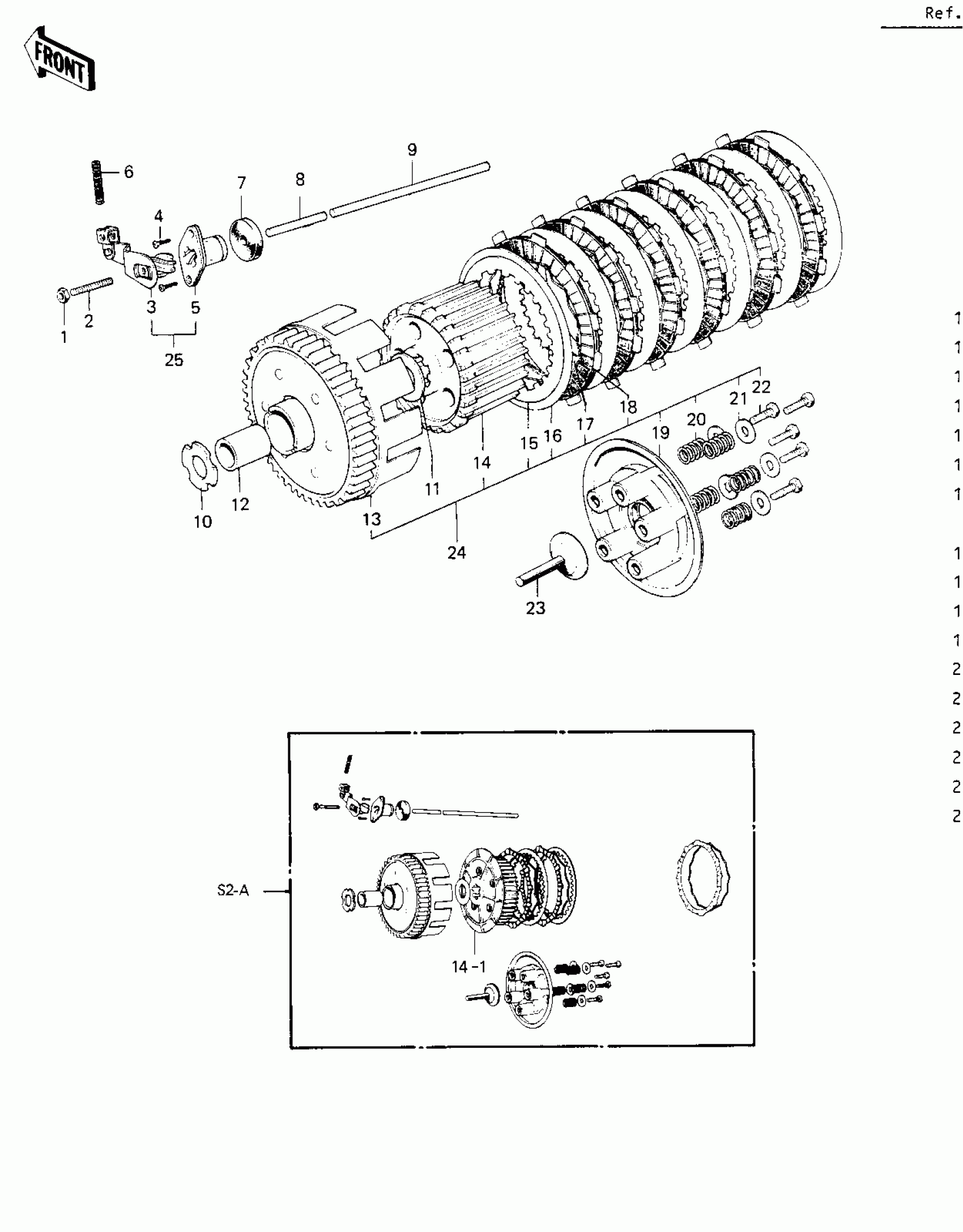

Kawasaki Mach II CLUTCH Diagram

#

Description

Price

1

NUT 6MM

311B0600

Unavailable

2

SCREW SLOTTED

291Z0622

Unavailable

3

INNER,CLUTCH RELEASE

13102-017

Unavailable

4

SCREW-CSK-CROS,6X16

221B0616

Unavailable

5

OUTER,CLUTCH RELEASE

13118-008

Unavailable

6

SPRING,CLUTCH RELEASE

92081-096

Unavailable

7

OIL SEAL F BRK PANEL

92050-010

Unavailable

8

ROD CLUTCH PUSH SHORT

13116-010

Unavailable

9

ROD-CLUTCH PUSH,LONG

13116-019

Unavailable

10

WASHER THRUST

92022-119

Unavailable

11

WASHER-PLAIN,20MM

92022-189

Unavailable

12

BUSH CLUTCH

92028-045

Unavailable

13

HOUSING-CLUTCH

13095-032

Unavailable

14

HUB,CLUTCH

13087-033

Unavailable

14-1

HUB,CLUTCH

13087-033

Unavailable

15

PLATE CLUTCH OUTER

13090-002

Unavailable

16

PLATE CLUTCH STEEL

13089-003

Unavailable

17

PLATE-FRICTION

13088-1015

Unavailable

18

RING-CLUTCH STEEL

13229-002

Unavailable

19

PLATE-CLUTCH SPRING

13187-004

Unavailable

20

SPRING-CLUTCH

92081-095

Unavailable

21

WASHER-PLAIN,5MM

92022-167

Unavailable

22

BOLT,5X18

92003-078

Unavailable

23

PUSHER-CLTCH SPRG PLT

13116-016

Unavailable

24

CLUTCH ASSY

13081-055

Unavailable

25

RELEASE ASSY,CLUTCH

13231-010

Unavailable
