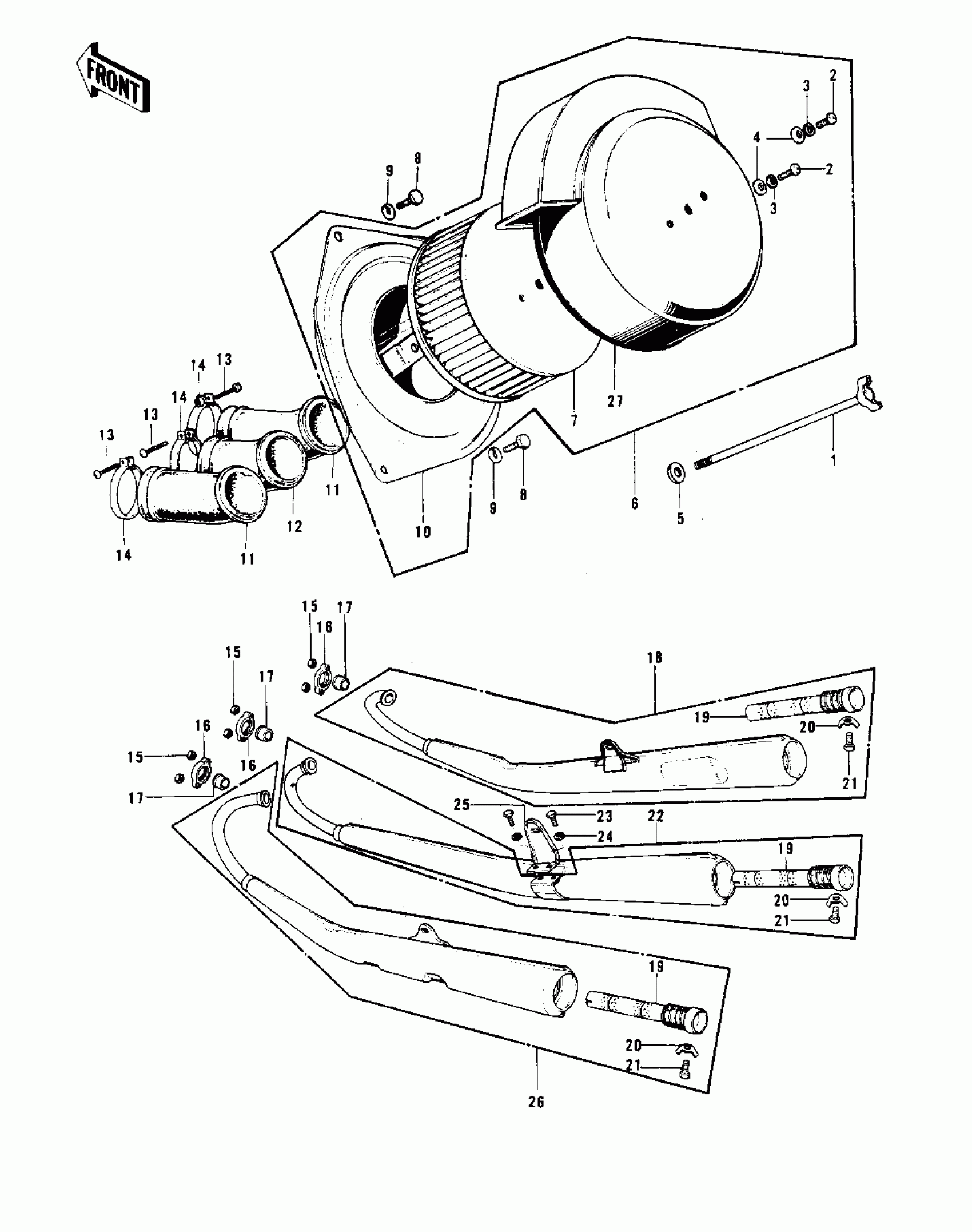

Kawasaki Mach II AIR CLEANER/MUFFLERS ('74-'75 S3/S3-A) Diagram
#
Description
Price
1
BOLT-AIR CLEANER FIT
92003-073
Unavailable
2
SCREW PAN HEAD 4X8
220B0408
Unavailable
3
WASHER SPRING 4MM
461F0400
Unavailable
4
WASHER PLAIN 4MM
410B0400
Unavailable
5
WASHER-PLAIN
92022-021
Unavailable
6
AIR CLEANER ASY,BLACK
11010-039-21
Unavailable
7
ELEMENT,AIR,CLNR
11013-026
Unavailable
8
BOLT-UPSET,6X12
112G0612
Unavailable
9
WASHER SPRING 6MM
461F0600
Unavailable
10
BODY-AIR CLEANER
11011-013
Unavailable
11
PIPE-AIR INLT,R.H&L.H
11015-024
Unavailable
12
PIPE-AIR INLET,CENTER
11015-025
Unavailable
13
SCREW, PAN HEAD 6X35
92011-033
Unavailable
14
CLAMP
92037-1326
Unavailable
15
NUT,LOCK,8MM
92019-007
Unavailable
15
NUT,LOCK,8MM
92015-1124
Unavailable
15
NUT,LOCK,8MM
92017-013
Unavailable
16
HOLDER,EXHAUST PIPE
18069-054
Unavailable
17
INSERT,EXH PIPE HLDR
18070-011
Unavailable
18
MUFFLER ASSY,R.H
18001-161
Unavailable
18
MUFFLER ASSY,R.H
18001-161
Unavailable
19
BAFFLE TUBE
18033-051
Unavailable
20
WASHER LOCK 6MM
92024-016
Unavailable
21
BOLT-UPSET,6X12
112G0612
Unavailable
22
MUFFLER ASSY,
18001-160
Unavailable
22
MUFFLER ASSY,
18001-160
Unavailable
22
MUFFLER ASSY,
18001-160
Unavailable
23
BOLT-SMALL-UPSET,8X16
115G0816
Unavailable
24
WASHER SPRING 3MM
461F0300
Unavailable
25
BRACKET,MUFFLER
18061-042
Unavailable
26
MUFFLER ASSY L.H.
18001-159
Unavailable
26
MUFFLER ASSY L.H.
18001-159
Unavailable
26
MUFFLER ASSY L.H.
18001-159
Unavailable
27
RUBBER SEAL,CLENR CAP
11024-001
Unavailable
