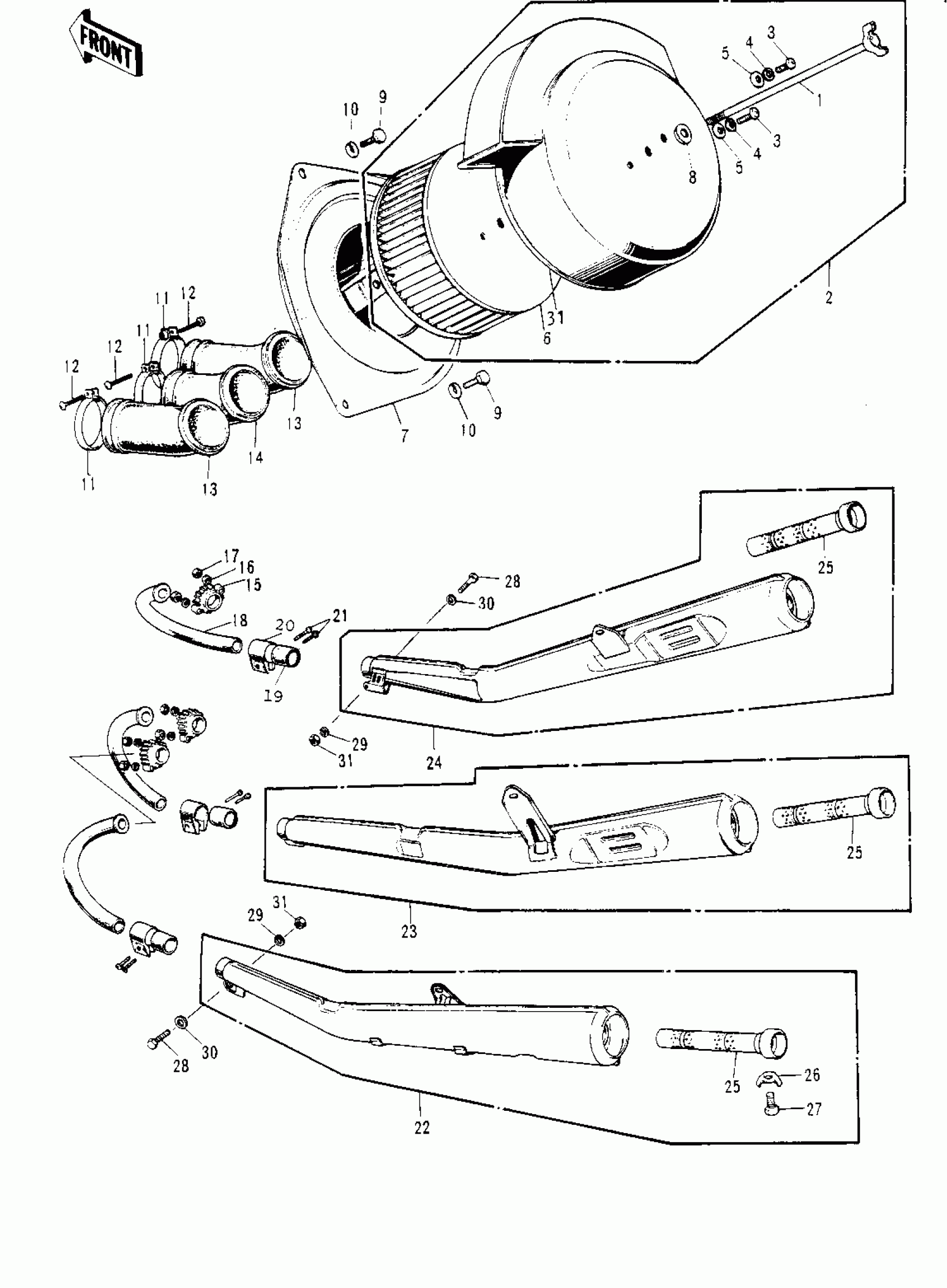

Kawasaki Mach II AIR CLEANER/MUFFLERS Diagram
#
Description
Price
1
BOLT-AIR CLEANER FIT
92003-073
Unavailable
2
AIR CLEANER ASSY
11010-039
Unavailable
2
AIR CLEANER ASY,BLACK
11010-039-21
Unavailable
3
SCREW PAN HEAD 4X8
220B0408
Unavailable
4
WASHER SPRING 4MM
461F0400
Unavailable
5
WASHER PLAIN 4MM
410B0400
Unavailable
6
ELEMENT,AIR,CLNR
11013-026
Unavailable
7
BODY-AIR CLEANER
11011-013
Unavailable
8
WASHER-PLAIN
92022-021
Unavailable
9
BOLT,6X10
112G0610
Unavailable
10
WASHER SPRING 6MM
461F0600
Unavailable
11
CLAMP AIR CLEANER
92037-034
Unavailable
12
SCREW PAN HEAD 6X35
220B0635
Unavailable
13
PIPE-AIR INLT,R.H&L.H
11015-024
Unavailable
14
PIPE-AIR INLET,CENTER
11015-025
Unavailable
15
HOLDER-EXHAUST PIPE
18069-038
Unavailable
16
WASHER SPRING 8MM
461F0800
Unavailable
17
NUT,8MM
311B0800
Unavailable
18
PIPE-EXHAUST
18049-074
Unavailable
19
CONNECTOR MUFFLER
18043-008
Unavailable
20
HOLDER-MFLR CONECT,CR
18044-004-79
Unavailable
21
SCREW PAN HEAD 6X28
220B0628
Unavailable
22
MUFFLER ASSY-L.H
18001-036
Unavailable
23
MUFFLER ASSY-CENTER
18001-037
Unavailable
24
MUFFLER ASSY,R.H
18001-038
Unavailable
25
BAFFLE TUBE
18033-048
Unavailable
26
WASHER LOCK 6MM
92024-016
Unavailable
27
BOLT-UPSET,6X12
112G0612
Unavailable
28
BOLT,8X20
115G0820
Unavailable
29
WASHER SPRING 8MM
461F0800
Unavailable
30
WASHER PLAIN 8MM
411B0800
Unavailable
31
RUBBER SEAL,CLENR CAP
11024-001
Unavailable
