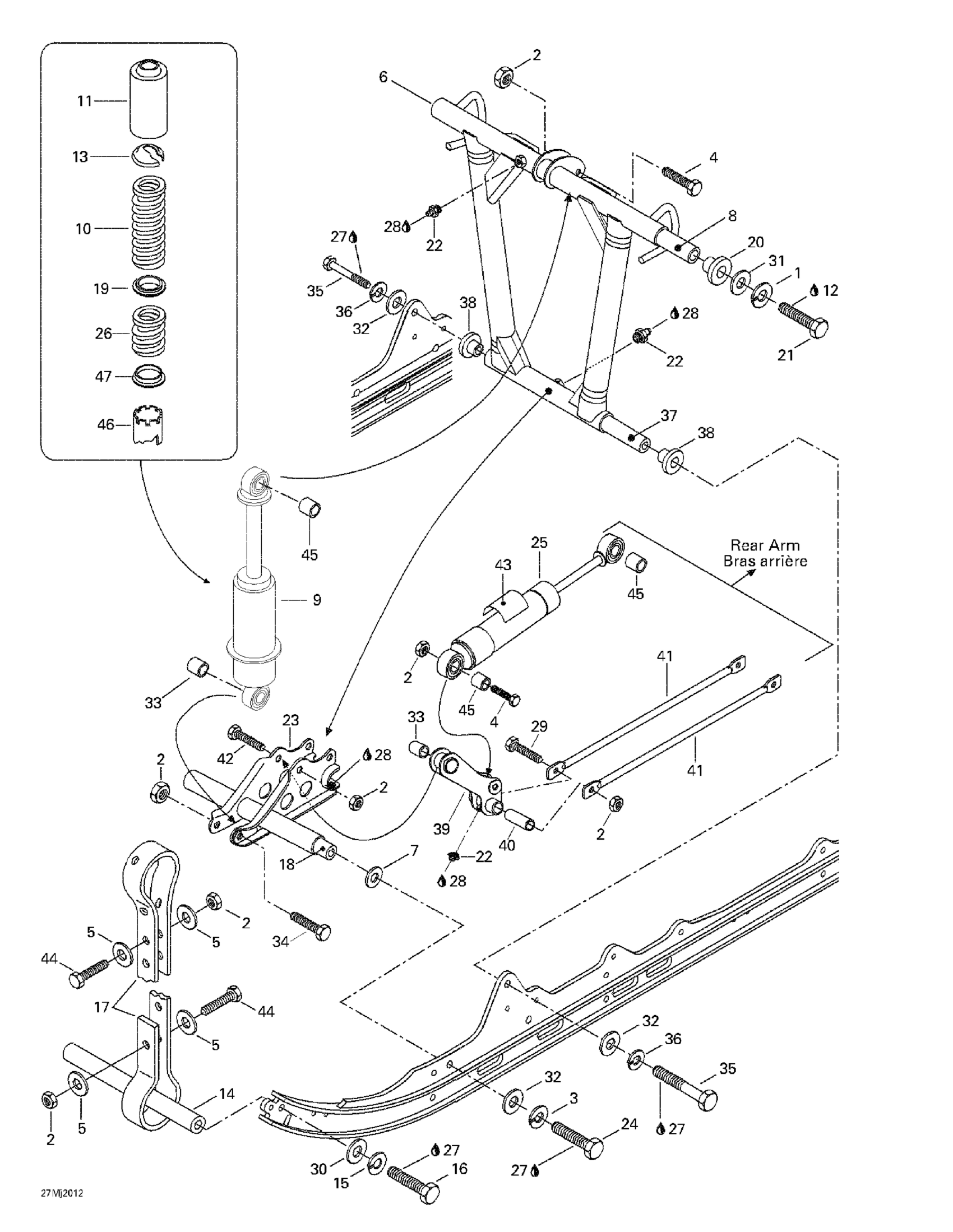

Ski-Doo Mach 1 R, 2000 Front Arm, Rear Suspension Diagram

#

Description
Price

1

Helicoidal Lock Washer M10 | XT Models

234101601

$1.15

2

Hex. Elastic Stop Nut M8

232581414

$0.56

3

Lock Washer 12 mm

234120602

Unavailable

4

Hex. Screw M8 X 40

207084044

$1.15

5

WASHER - Call your local BRP dealership

517078700

Unavailable

6

Welded Front Arm

503171100

Unavailable

7

Hardened Washer

503175400

Unavailable

8

SHAFT - Call your local BRP dealership

503190387

Unavailable

9

Shock

503188913

Unavailable

10

Spring

415090600

Unavailable

11

Protector

503193663

$37.99

12

Loctite 243, 10 ml

293800060

$21.49

13

Spring Stopper

706200881

$12.99

14

Axle

503151600

$18.49

15

Lock Washer 8 mm

234181401

$0.92

16

Hex. Screw M8 X 30

207183044

$1.15

17

STOPPER STRAP - Call your local BRP dealership

503190782

Unavailable

18

Lower Axle

503174900

Unavailable

19

Spring Spacer

503182200

Unavailable

20

Bushing

503189324

$14.15

21

HEX. SCREW M10 X 60 - Call your local BRP dealership

207006044

Unavailable

22

Grease Fitting

408200700

$3.49

23

Welded Shock Support

503188976

Unavailable

24

Hex. Screw M12 x 40

207124044

Unavailable

25

Rear Shock

503188912

Unavailable

26

Spring

415090500

Unavailable

27

Loctite 271, 10 ml

293800005

$26.99

28

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

29

HEX. SCREW M8 X 75 - Call your local BRP dealership

207087544

Unavailable

30

Flat Washer 8 mm

234081410

$0.83

31

Flat Washer 10 mm

234001410

$1.26

32

Flat Washer 12 mm

234021410

$0.72

33

Cushion

414917900

Unavailable

34

Hex. Screw M8 X 55

207085544

$1.68

35

HEX. SCREW M12 X 60 - Call your local BRP dealership

207026044

Unavailable

36

Lock Washer 12 mm

234120602

Unavailable

37

SHAFT - Call your local BRP dealership

503189313

Unavailable

38

CUSHION - Call your local BRP dealership

503189323

Unavailable

39

Lever

503158500

Unavailable

40

Tie Rod Shaft

503158600

Unavailable

41

Tie Rod

503187100

Unavailable

42

Hex. Screw M8 X 50

207085044

$1.48

43

HPG Decal (Europe)

516000182

Unavailable

44

Hex. Screw M8 X 25

207182544

$0.90

45

Bushing

414936000

$13.99

46

Adjustment Cam

505073625

$12.99

47

Spring Guide

503191872

$2.29
