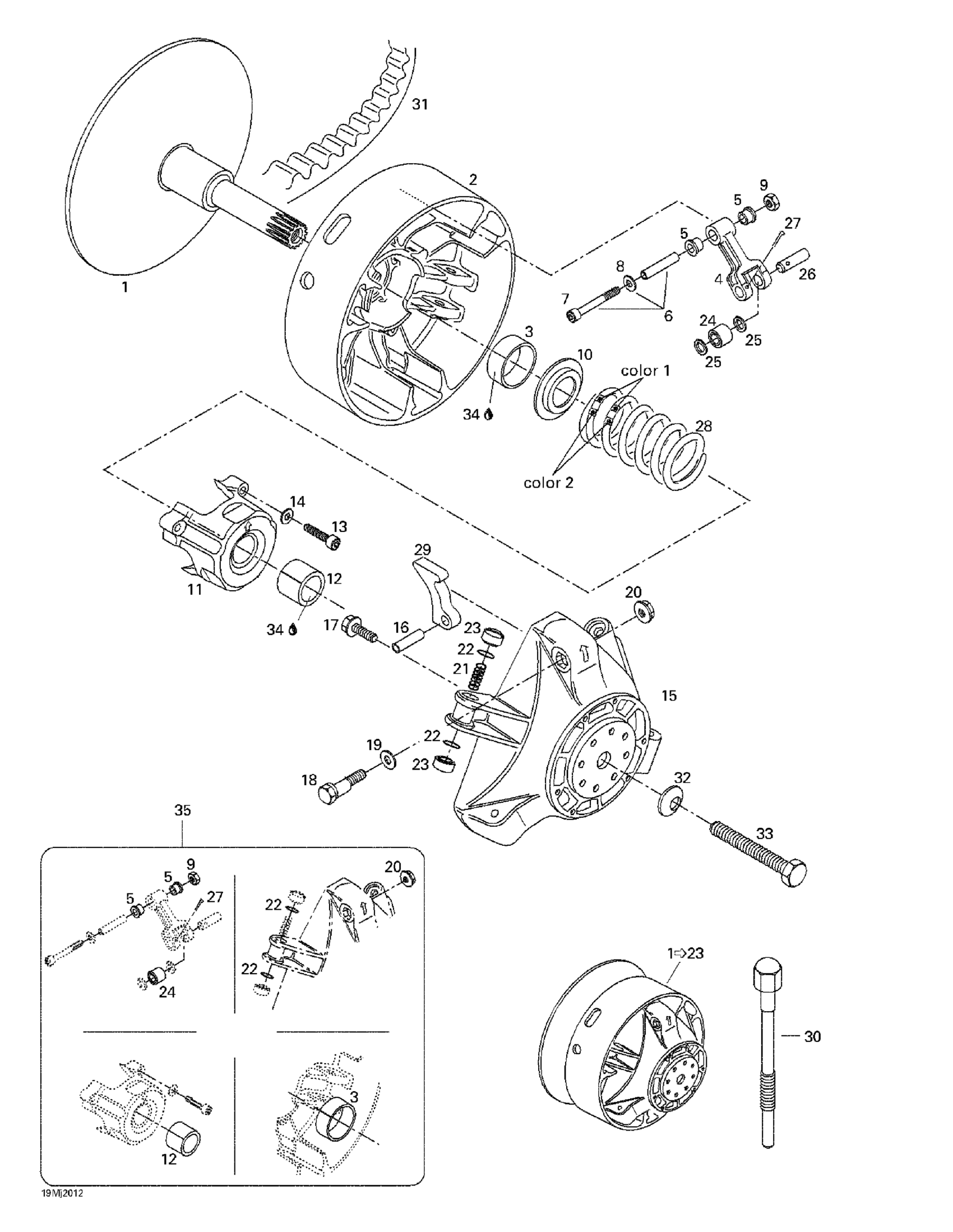

Ski-Doo Mach 1 R, 2000 05- Drive Pulley Diagram

#

Description
Price

1

Drive Pulley Ass'y | Includes 1 - 23.

417222325

Unavailable

1

Fixed Flange

417222411

$539.99

2

OUTER HALF ASS'Y - Call your local BRP dealership | Includes 2 - 3.

417222049

Unavailable

3

Bushing

417004201

$25.99

4

LEVER ASS'Y - Call your local BRP dealership | Includes 4 - 5.

417003801

Unavailable

5

Bushing

417004305

$11.52

6

SCREW ASSY - Call your local BRP dealership | Includes 12 to 13

417004800

Unavailable

7

Not Available As Spare Part - Friction Washer

Unavailable

8

Not Available As Spare Part - Friction Washer

Unavailable

9

Elastic Stop Nut M6

232561414

$0.55

10

Spring Seat

417222044

Unavailable

11

Spring Cover Ass'y | Includes 9 - 10.

417222157

Unavailable

12

Bushing

417004501

$24.99

13

Allen Screw M6 x 40

222964066

Unavailable

14

WASHER - Call your local BRP dealership

420245370

Unavailable

15

Governor Cup

417222059

Unavailable

16

Pin M8 X 24

732804009

Unavailable

17

HEX. FORMING SCREW M6 X 18 - Call your local BRP dealership

210361890

Unavailable

18

CALIBRATION SCREW - Call your local BRP dealership

417222955

Unavailable

19

Washer

417005600

$4.09

20

Hex. Flange Nut M6

233061414

$1.68

21

Spring

417005700

$4.76

22

O-Ring

732401030

$0.98

23

Slider Shoe This part replaces 420460045.

417223021

$5.90

24

Roller

417222947

$21.99

25

Stopper Washer

417004302

$15.90

26

Pin

417004308

$13.99

27

Cotter Pin

250400060

$2.00

28

Spring, Green/violet | 800R Power TEK

414762800

$39.99

29

Ramp 297 | Formula Z 700.

417005297

Unavailable

30

Puller This part replaces 529022400.

529000064

$71.99

31

Drive Belt

417300066

$134.99

32

Spring Washer 14 mm

250200006

$6.99

33

Drive Pulley Bolt

417120000

$65.49

34

Loctite 609, 10 ml

413703100

$26.99

35

Clutch Repair Kit

417006100

$189.99
