Description

Price

1

Rewind Starter Ass'y | Includes 1 - 11.

420887453

Unavailable

2

Not Available As Spare Part - Friction Washer

Unavailable

3

Rewind Spring

420939115

$30.49

4

Rope Sheave

420852283

$62.49

5

Was 412500100 Rope-Starter

219704403

$158.99

6

Key Clamp

420852070

$4.23

7

Pawl

420852296

$20.99

8

PAWL LOCK - Call your local BRP dealership

420852302

Unavailable

9

CIRCLIP - Call your local BRP dealership

420845300

Unavailable

10

Pawl Spring

420938986

$9.27

11

LOCK RING - Call your local BRP dealership

420945770

Unavailable

12

Starter Grip

572084400

$14.83

13

WASHER-LOCK DIN.128 - Call your local BRP dealership

420945751

Unavailable

14

Hex. Screw M6 X 16

207161644

$0.74

15

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

16

Molykote G-N, 50 g

420297433

$26.99

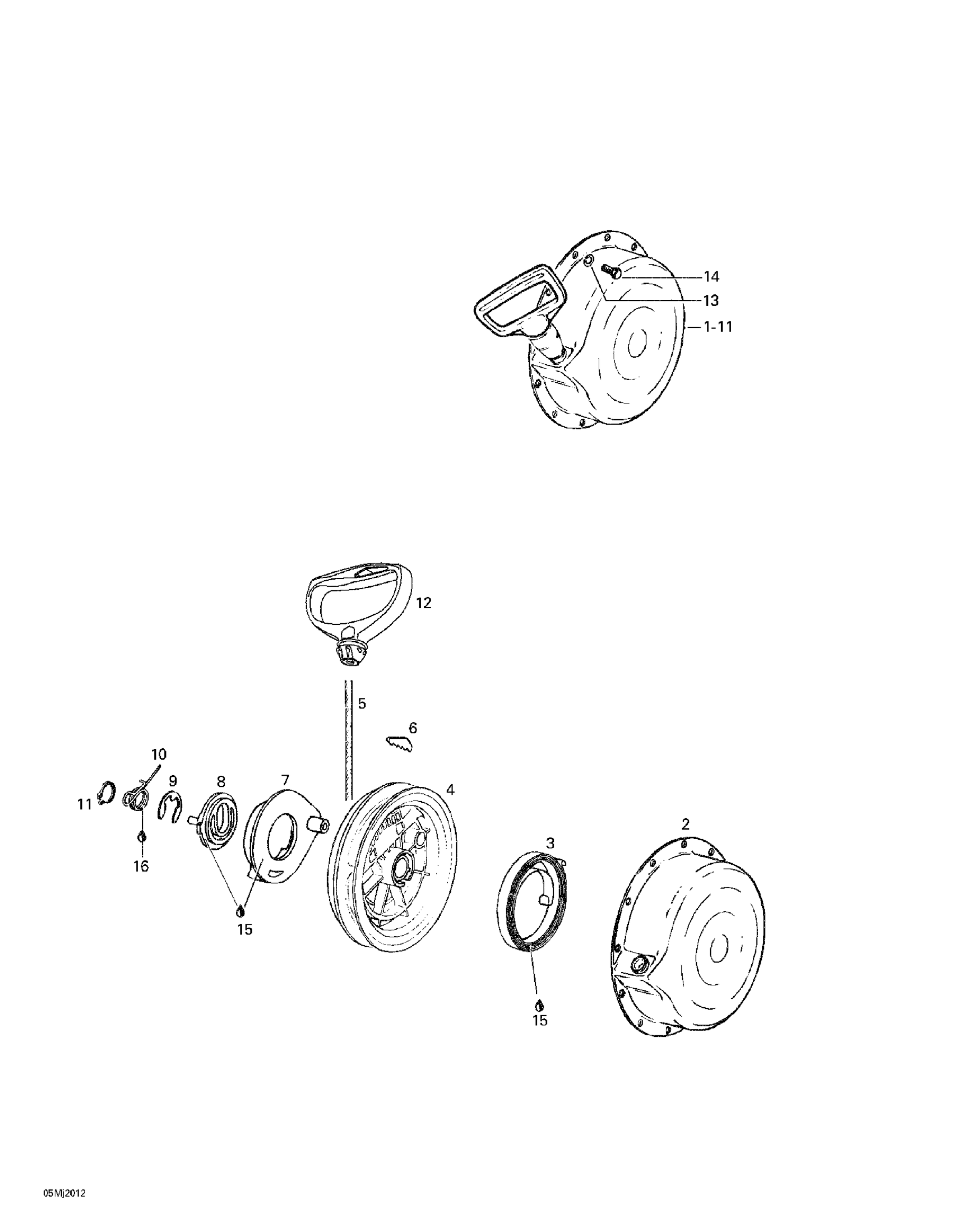

Ski-Doo Mach 1 R, 2000 04- Rewind Starter Diagram

Rewind Starter Ass'y | Includes 1 - 11.

Not Available As Spare Part - Friction Washer

Rewind Spring

Rope Sheave

Was 412500100 Rope-Starter

Key Clamp

Pawl

PAWL LOCK - Call your local BRP dealership

CIRCLIP - Call your local BRP dealership

Pawl Spring

LOCK RING - Call your local BRP dealership

Starter Grip

WASHER-LOCK DIN.128 - Call your local BRP dealership

Hex. Screw M6 X 16

Was 293550004 Dielectric Grease, 150 g

Molykote G-N, 50 g
