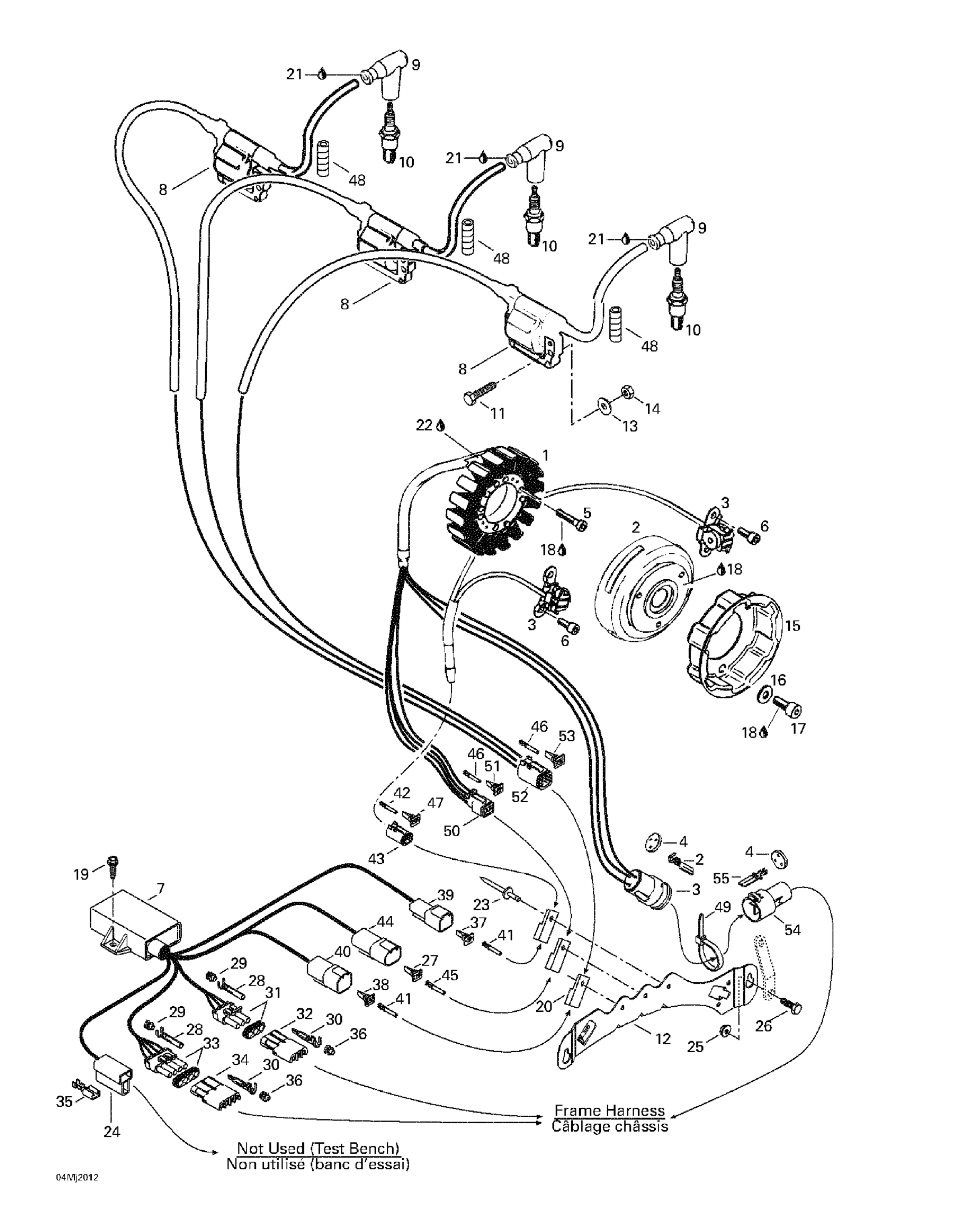

Ski-Doo Mach 1 R, 2000 Magneto 12V 290W Diagram

#

Description
Price

1

Stator Ass'y | Includes 1 - 7.

410922927

Unavailable

2

Magneto Flywheel

410922930

Unavailable

3

Pick Up Ass'y | Includes 9 - 12.

410922909

Unavailable

4

SEAL - Call your local BRP dealership

409208500

Unavailable

5

SOCKET HEAD SCREW M6 X 30 - Call your local BRP dealership This part replaces 420840886.

420840887

Unavailable

6

Allen Screw M6 X 14

420840391

$1.69

7

Calibration Module

515175457

Unavailable

8

Ignition Coil | Includes 15 - 19.

420966705

Unavailable

9

SPARK PLUG CAP - Call your local BRP dealership

278000237

$16.99

10

Spark Plug NGK BR9ES This part replaces 414961100.

219703120

$4.23

11

Hex. Screw M6 X 20 | XT Models

207162044

$0.76

12

Housing Support

515175148

Unavailable

13

WASHER-LOCK DIN.128 - Call your local BRP dealership

420945751

Unavailable

14

Hex. Nut M6

232061414

$0.53

15

Starting Pulley

420852418

Unavailable

16

Flat Washer

420827405

$1.69

17

Socket Head Screw M8 X 12

420841520

$1.69

18

Loctite 243, 10 ml

293800060

$21.49

19

Hex. Plastic Screw M4.8 X 16

243141630

$2.11

20

Clip

270000141

$11.49

21

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

22

Not Available As Spare Part - Friction Washer

Unavailable

23

Not Available As Spare Part - Friction Washer

Unavailable

24

FEMALE TERMINAL HOUSING, 24 CIRCUITS - Call your local BRP dealership

409204600

Unavailable

25

Hex. Flange Elastic Nut M5

233251414

$1.04

26

Hex. Screw M5 X 14

207151444

$0.87

27

MALE LOCK, 4 CIRCUITS - Call your local BRP dealership

710000046

Unavailable

28

Female Terminal

278000223

$3.19

29

Wire Seal

278000218

$4.39

30

Male Terminal | XT Models

278000222

$3.19

31

Male Housing, 3 Circuits

278000273

$9.59

32

Female Terminal Housing, 3 Circuits | XT Models

278000281

$9.85

33

Male Housing, 4 Circuits

278000395

$15.99

34

FEMALE HOUSING, 4 CIRCUITS - Call your local BRP dealership

278000394

Unavailable

35

Female Terminal

561503100

$2.41

36

Seal

409208300

Unavailable

37

Female Wedge, 4 Circuits

278000636

$4.39

38

Female Lock, 6 Circuits

278000735

$3.19

39

Female Housing, 4 Circuits

278000635

$16.49

40

Fuse Holder 8 Amp

278000137

Unavailable

41

Male Terminal

278000631

$4.39

42

Female Terminal

278000632

$2.09

43

Male Connector, 4 Circuits | CE

278000739

$19.49

44

MALE TERMINAL HOUSING, 4 CIRCUITS - Call your local BRP dealership

710000045

Unavailable

45

MALE TERMINAL - Call your local BRP dealership

409014800

Unavailable

46

FEMALE TERMINAL - Call your local BRP dealership

409015100

Unavailable

47

Male Lock, 4 Circuits | CE

278000738

$3.09

48

Tubing 10 MM 1000MM Long

219704407

$2.79

49

Tie-Rap 180 mm

414115200

$0.11

50

Female Terminal Housing (4 circuits)

515175245

Unavailable

51

Female Lock (4 circuits)

515175246

Unavailable

52

MALE HOUSING, 6 CIRCUITS - Call your local BRP dealership

710001540

$21.99

53

MALE LOCK, 6 CIRCUITS - Call your local BRP dealership

278000737

Unavailable

54

MALE HOUSING - Call your local BRP dealership

409207900

Unavailable

55

MALE TERMINAL - Call your local BRP dealership

409011100

Unavailable
