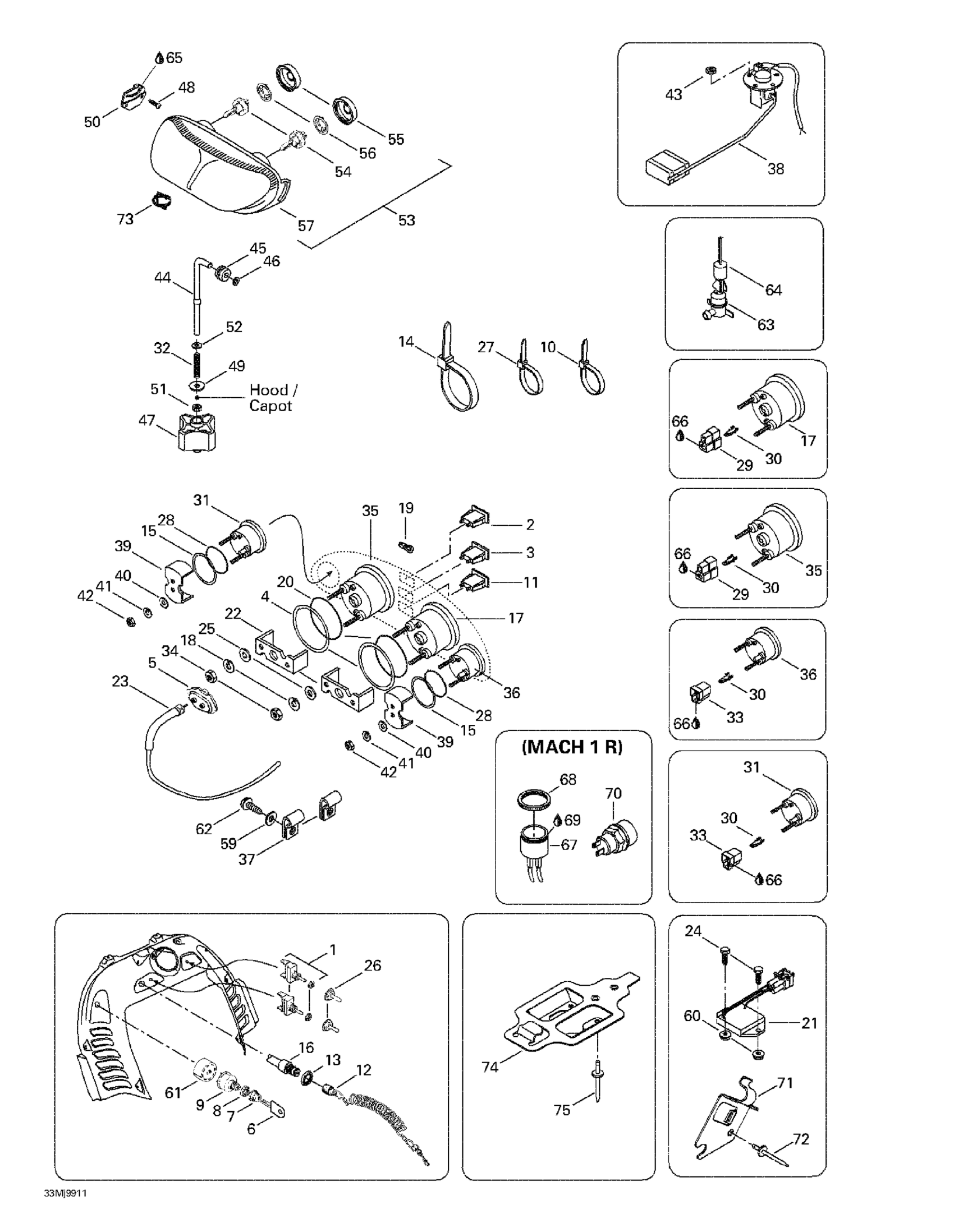

Ski-Doo Mach 1 R, 1999 10- Electrical System Diagram

Switch (Heating Grip) | FREERIDE

410107300

$35.99

Pilot Lamp (Red)

410109500

Unavailable

Pilot Lamp (Blue)

410109600

Unavailable

Washer

517258500

Unavailable

Drive Angle | Formula S.

572022300

Unavailable

Blank Key

415129350

$26.49

Switch Boot

570013700

$11.49

FACE NUT - Call your local BRP dealership

410112100

Unavailable

IGNITION SWITCH - Call your local BRP dealership | Formula Deluxe 380 F.

410111300

Unavailable

Tie Wrap 142 mm

293750002

$1.25

Pilot Lamp, Dess | 600 SUV

410113300

Unavailable

Pilot Lamp (Reverse/DESS) | Formula III 700 R.

515175137

Unavailable

DESS

515178284

$84.99

Safety Nut (DESS Switch)

278002963

$3.28

Tie Wrap 368 mm

293750008

$1.04

WASHER - Call your local BRP dealership

517258600

Unavailable

TERMINAL ASSY - Call your local BRP dealership | SUV 600

515166800

Unavailable

Speedometer (KMH)

415096300

Unavailable

Speedometer (MH)

415096400

Unavailable

Lock Washer

414806700

Unavailable

INSTRUMENTATION BULB - Call your local BRP dealership

410504200

Unavailable

O-Ring

414807100

Unavailable

Voltage Regulator

515175216

Unavailable

Case Holder

414806500

Unavailable

Speedometer Cable

515175218

Unavailable

Hex. Screw M6 X 20 | XT Models

207162044

$0.76

Flat Washer

517225900

$0.18

Switch Cover

515175281

$15.99

Tie-Rap 180 mm

414115200

$0.11

O-RING - Call your local BRP dealership

414807200

Unavailable

MALE HOUSING - Call your local BRP dealership

409204500

Unavailable

MALE TERMINAL - Call your local BRP dealership

409210000

Unavailable

Fuel Gauge

415097300

Unavailable

SPRING - Call your local BRP dealership

415100600

Unavailable

FEMALE HOUSING - Call your local BRP dealership

409204200

Unavailable

Nut

414806900

Unavailable

Tachometer

415096500

Unavailable

Temperature Gauge

415097200

Unavailable

Open Clamp

414176000

$1.99

Fuel Sensor Ass'y | Includes 46 - 49.

415080800

Unavailable

Case Holder

415099800

Unavailable

FLAT WASHER - Call your local BRP dealership | 4X4

250200081

Unavailable

Lock Washer | SE Models

414833700

Unavailable

NUT - Call your local BRP dealership | SE Models

414833600

Unavailable

Elastic Stop Nut M5

232551414

$0.87

ADJUSTER ROD - Call your local BRP dealership

517295800

Unavailable

Grommet - Call your local BRP dealership

415100800

Unavailable

Push Nut

732610072

$2.19

Handle - Call your local BRP dealership

515175548

Unavailable

Headlamp Screw

732601315

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

RH Support

517289300

Unavailable

LH Support

517289400

Unavailable

Elastic Stop Nut M6

232561414

$0.55

Flat Washer 6 mm

234061410

$1.36

Halogen Headlamp Ass'y | Includes 4 to 7

515176311

$309.99

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

$23.49

PROTECTOR CAP - Call your local BRP dealership

410607100

Unavailable

BULB HOLDER - Call your local BRP dealership

410608300

Unavailable

Halogen Headlamp Ass'y | Includes 4 to 7

515176311

$309.99

MALE TERMINAL - Call your local BRP dealership

409210000

Unavailable

Washer | DS 650 X

391301600

$0.48

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

FEMALE TERMINAL HOUSING, 9 CIRCUITS - Call your local BRP dealership

572150700

Unavailable

HEX. SCREW 12 X 3/4 - Call your local BRP dealership

365901100

Unavailable

LEVEL SWITCH - Call your local BRP dealership | Canada / U.S.A

414681800

Unavailable

Float

414681900

Unavailable

Grease Tube Lmz, 400 G

413707500

Unavailable

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

Back-Up Alarm

414792102

$149.99

PLASTIC NUT - Call your local BRP dealership

414805101

Unavailable

Silicone Sealant 51388, 300 ml

296000309

$36.99

Push Button

415130372

$122.49

Housing Support

515175173

Unavailable

Pop Rivet 1/8", Black

293150189

$0.27

SPRING - Call your local BRP dealership | Europe

515175324

Unavailable

Electrical Box Support

518317554

Unavailable

Pop Rivet 3/16"

390402200

$0.35
