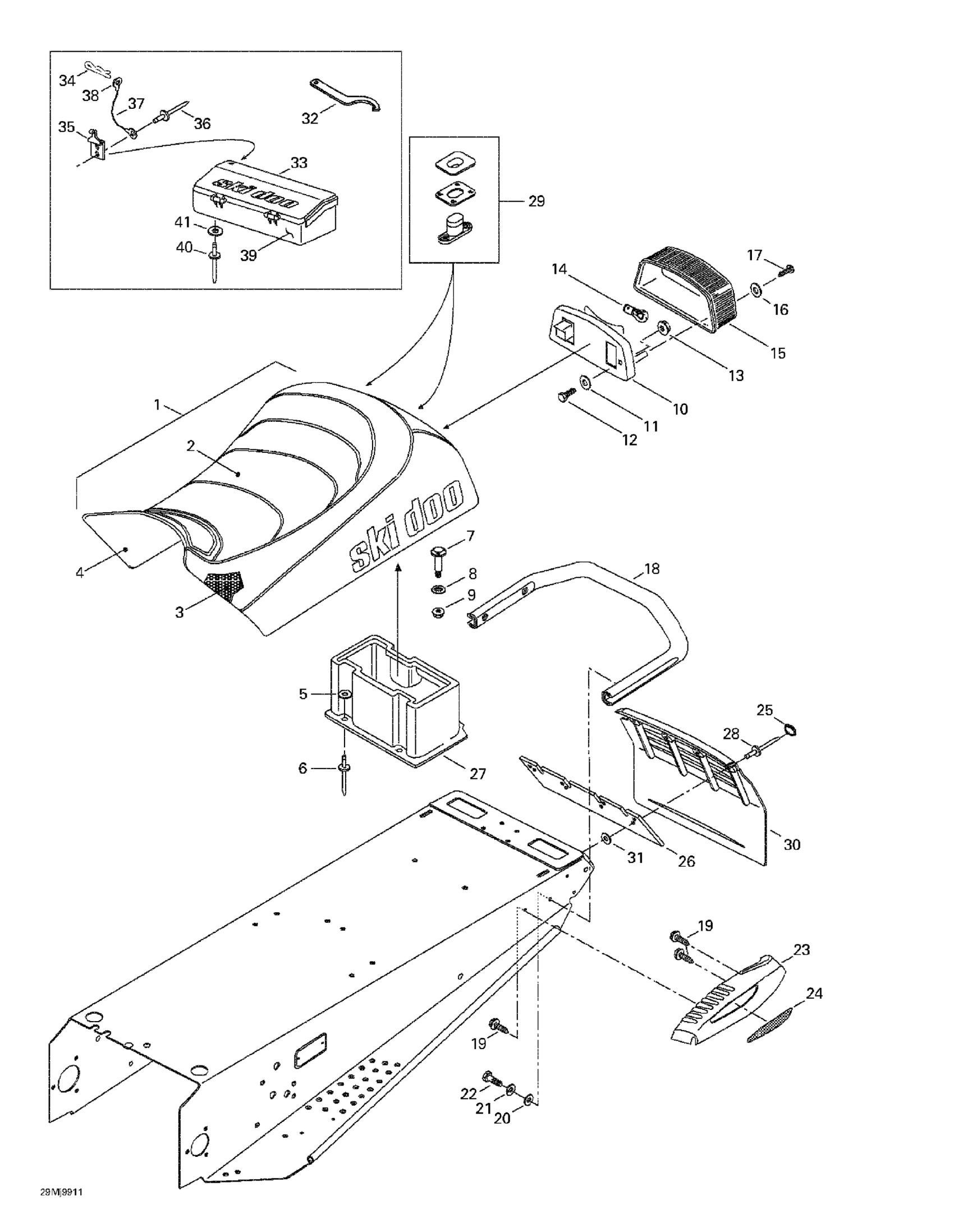

Ski-Doo Mach 1 R, 1999 09- Seat And Accessories Diagram

#

Description
Price

1

Not Available As Spare Part - Friction Washer

Unavailable

2

Seat Cover

510003594

Unavailable

3

Foam Seat

415046302

Unavailable

4

Sub-Seat

572088200

Unavailable

5

WASHER - Call your local BRP dealership | MX Z X 600RS

517297900

Unavailable

6

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

7

«T» Bolt

732601221

Unavailable

8

Push Nut

732610072

$2.19

9

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

10

LIGHT HOUSING - Call your local BRP dealership

510004061

Unavailable

11

WASHER - Call your local BRP dealership | MX Z X 600RS

517297900

Unavailable

12

Hex. Screw M5 X 30

207053044

$1.16

13

Hex. Flange Elastic Nut M5

233251414

$1.04

14

Bulb

520000758

$9.10

15

Lens

414513700

$28.99

16

Washer - Call your local BRP dealership

414516400

Unavailable

17

Phillips Tapping Screw M3.9 X 25

209632540

$1.26

18

REAR BUMPER - Call your local BRP dealership

518314000

Unavailable

19

HEX. SCREW 12 X 3/4 - Call your local BRP dealership

365901100

Unavailable

20

Flat Washer 8 mm

234081410

$0.83

21

Lock Washer 8 mm

234181401

$0.92

22

Hex. Screw M8 X 20

207182044

$0.74

23

RH Moulding

572092200

Unavailable

LH Moulding

572092300

Unavailable

24

RH Reflector, Red

516000237

Unavailable

LH Reflector, Red

516000238

Unavailable

RH Reflector, Yellow, Europe | SE GT Europe

516000241

Unavailable

LH Reflector, Yellow, Europe | SE GT Europe

516000242

Unavailable

25

Cap

415073300

Unavailable

26

REINFORCEMENT - Call your local BRP dealership

572108200

Unavailable

27

Rear Trunk, Se-Air | Grand Touring 600. Grand Touring 700.

572106300

Unavailable

28

Pop Rivet 3/16"

293150100

$1.09

29

SEAT BUCKLE - Call your local BRP dealership

414728000

Unavailable

30

Red, Snowguard

572103800

Unavailable

Snow Guard

572103805

Unavailable

31

Flat Washer

517225900

$0.18

32

ADJUSTER WRENCH (SUSPENSION) - Call your local BRP dealership

529034100

Unavailable

33

Tool Box Ass'y | Includes 35 - 40.

520000107

Unavailable

34

HAIR PIN - Call your local BRP dealership

414112400

Unavailable

35

Latch

517168500

Unavailable

36

Not Available As Spare Part - Friction Washer

Unavailable

37

Wire

414407400

Unavailable

38

Terminal Ring

561502800

Unavailable

39

Tool Kit (Not Shown)

529032000

Unavailable

Tool Kit (Not Shown) | Includes 44 - 55.

529035592

Unavailable

40

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

41

Washer

517124300

$0.19
