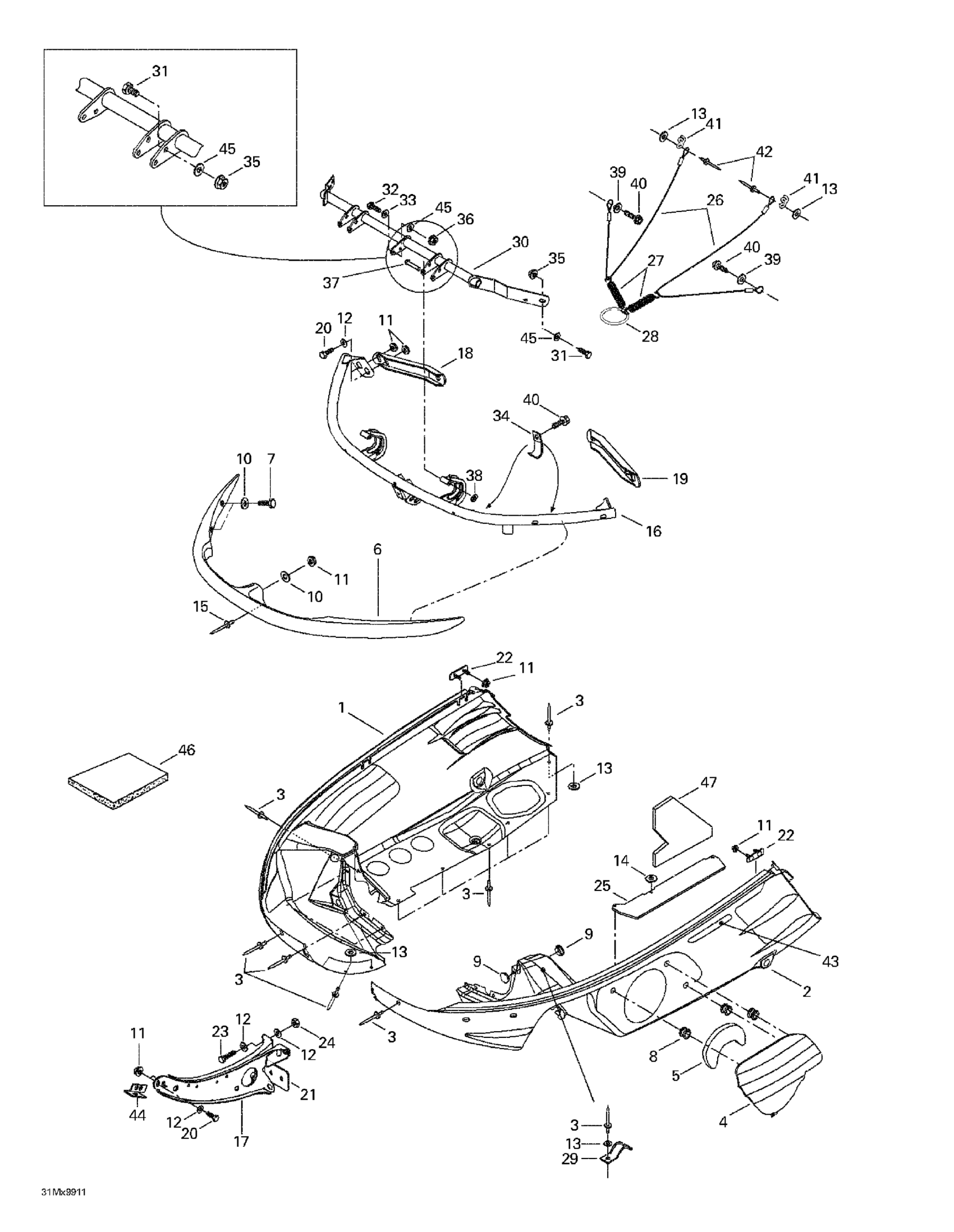

Ski-Doo Mach 1 R, 1999 09- Bottom Pan Diagram

#

Description
Price

1

Deep Black, RH Bottom Pan

572087000

Unavailable

2

Deep Black, LH Bottom Pan

572087100

Unavailable

3

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

4

DEEP BLACK, BOTTOM PAN DOOR - Call your local BRP dealership

572098500

Unavailable

5

Foam, Door

415112800

Unavailable

6

Deep Black, Front Bumper

572087200

Unavailable

7

Hex. Screw M6 X 30

207063044

$1.26

8

Grommet

414036300

$2.79

9

Black, Nylon Cap

414916600

$4.69

10

Flat Washer

224061201

$1.37

11

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

12

Flat Washer

224061121

$0.53

13

Washer

517124300

$0.19

14

Flat Washer

517225900

$0.18

15

Pop Rivet 3/16"

390906800

$0.93

16

Hinge Bracket

502006523

Unavailable

17

Center Support

502006549

Unavailable

18

RH Support

517288400

Unavailable

19

LH Support

517288500

Unavailable

20

Hex. Screw M6 X 20 | XT Models

207162044

$0.76

21

Plate

517288600

Unavailable

22

Bracket

517294300

Unavailable

23

Hex. Screw M6 X 60

207066044

$0.67

24

Elastic Stop Nut M6

232561414

$0.55

25

Protector

517299500

Unavailable

26

RETAINER CABLE - Call your local BRP dealership

415093900

Unavailable

27

Spring

414185600

Unavailable

28

RING - Call your local BRP dealership

415058300

Unavailable

29

Bracket

517274400

Unavailable

30

Hinge

517302187

Unavailable

31

Hex. Screw M5 X 16 | 4X4

207151644

$0.90

32

HEX. SCREW M4 X 16 - Call your local BRP dealership

207141644

Unavailable

33

WASHER - Call your local BRP dealership

391301000

$0.70

34

Cable Bracket

515175160

Unavailable

35

Hex. Flange Elastic Nut M5

233251414

$1.04

36

Elastic Stop Nut M4

232541484

$0.74

37

RIVET-STEEL SOLID - Call your local BRP dealership

390004800

Unavailable

38

Push Nut

389804300

$0.53

39

Washer | DS 650 X

391301600

$0.48

40

HEX. SCREW 12 X 3/4 - Call your local BRP dealership

365901100

Unavailable

41

Bracket

517262800

Unavailable

42

Pop Rivet 3/16"

390406500

$0.88

43

Decal - RH Reflector

415064400

Unavailable

Decal - LH Reflector

415064401

Unavailable

44

Front Support

517302009

Unavailable

45

WASHER-LOCK SERRATED INT.EXT.M6 - Call your local BRP dealership This part replaces 420845270.

420845330

Unavailable

46

Acoustic Foam

414632400

Unavailable

Acoustic Foam

414631900

Unavailable

47

Foam, Bottom Pan

415111300

Unavailable
