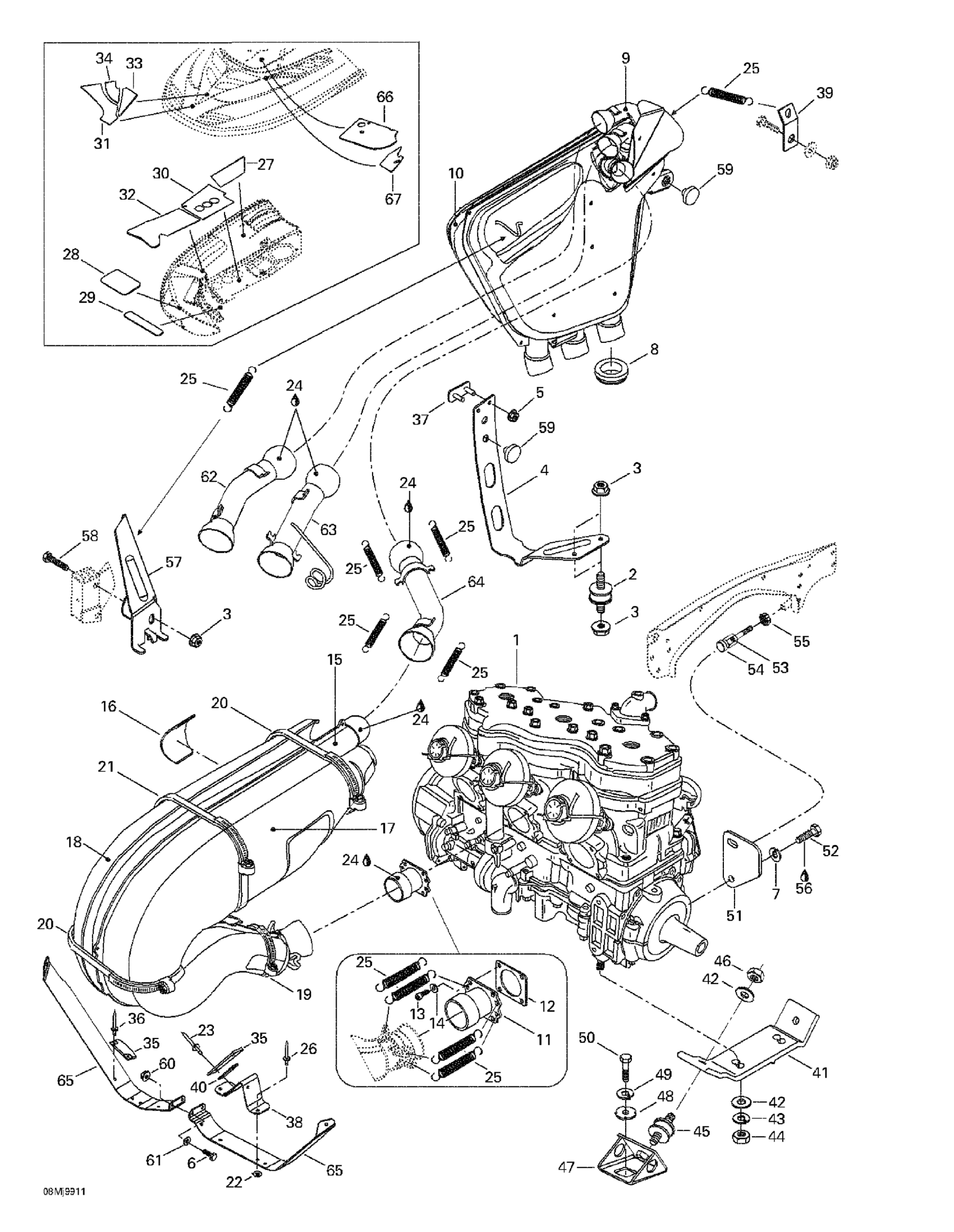

Ski-Doo Mach 1 R, 1999 01- Engine Support And Muffler Diagram

#

Description
Price

1

Engine <<699>> | Mach 1.

400604007

Unavailable

Engine <<699>> | Mach 1-R.

400604008

Unavailable

2

RUBBER MOUNT - Call your local BRP dealership

514052743

Unavailable

3

Hex. Flange Elastic Nut M8

233281414

$1.47

4

Support

514052887

Unavailable

5

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

6

Hex. Screw M5 X 20

207152044

$0.90

7

Lock Washer 8 mm

234181401

$0.92

8

Exhaust Grommet

570066200

Unavailable

9

Muffler | Includes 9 - 10.

514052910

Unavailable

10

RH Heat Shield

514052900

Unavailable

11

Exhaust Socket

420978818

Unavailable

12

Gasket

420850552

$8.85

13

Socket Head Screw M6 X 25

205062544

$1.15

14

Lock Washer M6, Black

234161471

$0.53

15

Tuned Pipe Ass'y | Includes 37 - 45.

514052766

Unavailable

16

Rubber Pad

514052866

Unavailable

17

Upper Shell

514052774

Unavailable

18

Lower Shell

514052775

Unavailable

19

Norma Gear Clamp

293650118

$13.16

20

Norma Clamp

514052860

Unavailable

21

Gear Clamp (Norma)

514052861

$8.29

22

Flat Washer

517225900

$0.18

23

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

24

Sealant, Loctite, 80 ml | DS 650

293800090

$26.99

25

Spring

415107100

$6.35

26

Pop Rivet 3/16"

390906800

$0.93

27

RH Reflective Sheet

415083800

Unavailable

28

Leaf Valve Ø16 X 0.114 (C36)

415083900

Unavailable

29

Reflective Sheet

415111900

Unavailable

30

Reflective Sheet

415115000

Unavailable

31

RH Reflective Sheet

415112300

Unavailable

LH Reflective Sheet

415112400

Unavailable

32

Reflective Sheet

514052950

Unavailable

33

RH Reflective Sheet

415112500

Unavailable

LH Reflective Sheet

415112600

Unavailable

34

RH Reflective Sheet

415114800

Unavailable

LH Reflective Sheet

415114900

Unavailable

35

Rubber Pad

570044100

Unavailable

36

Pop Rivet 3/16"

390406500

$0.88

37

Bracket

517294300

Unavailable

38

Support

514052954

Unavailable

39

Spring Bracket

514051000

Unavailable

40

Spring Bracket

514052955

Unavailable

41

Engine Support | Formula III 700 R.

512059088

Unavailable

42

Flat Washer 10 mm

234001410

$1.26

43

WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership This part replaces 224701188.

234100602

Unavailable

44

Hex. Nut M10 X 1.5

232006414

$1.37

45

RUBBER MOUNT - Call your local BRP dealership

570127700

Unavailable

46

Elastic Locking Nut M10 X 1.5

233601416

$1.69

47

Engine Support

512050900

Unavailable

48

Lock Washer

512056700

$3.17

49

WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership This part replaces 224701188.

234100602

Unavailable

50

Hex. Screw M10 X 25

207102544

$1.37

51

STOPPER PLATE - Call your local BRP dealership

512056000

Unavailable

52

Hex. Screw M8 x 16

207181644

$1.15

53

Stopper Screw

512056900

Unavailable

54

Stopper | Formula III 600.

570049500

Unavailable

55

HEX. NUT M12 - Call your local BRP dealership

232120414

Unavailable

56

Loctite 271, 10 ml

293800005

$26.99

57

Support

514052788

Unavailable

58

Hex. Screw M8 X 55

207085544

$1.68

59

Rubber Bumper

514053654

$50.99

60

Hex. Flange Elastic Nut M5

233251414

$1.04

61

FLAT WASHER - Call your local BRP dealership | 4X4

250200081

Unavailable

62

Tail Pipe (MAG)

514052915

Unavailable

63

Tail Pipe (Central)

514052918

Unavailable

64

Tail Pipe (PTO)

514052921

Unavailable

65

RH Tuned Pipe Support

514052777

Unavailable

LH Tuned Pipe Support

514052778

Unavailable

66

Reflective Sheet

514052951

Unavailable

67

Reflective Sheet

514052956

Unavailable
