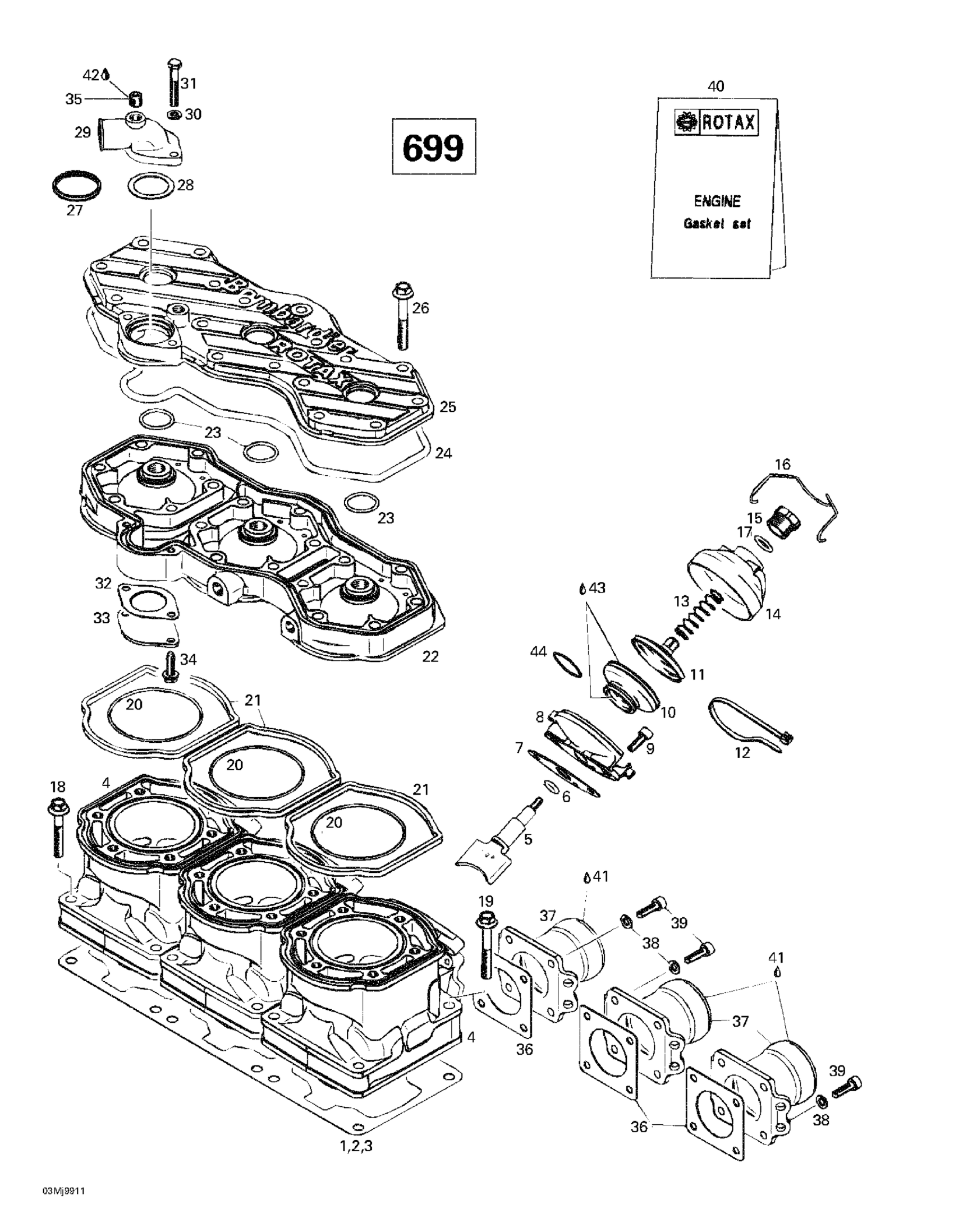

Ski-Doo Mach 1 R, 1999 01- Cylinder, Exhaust Manifold (699) Diagram

#

Description
Price

1

GASKET 0.6 MM - Call your local BRP dealership | Formula III 700 R.

420931572

Unavailable

2

GASKET 0.4 MM - Call your local BRP dealership | Formula III 700 R.

420931571

Unavailable

3

Gasket 0.3 mm | Formula III 700 R.

420931570

Unavailable

4

CYLINDER (NICASIL COATED) - Call your local BRP dealership | Formula III 700 R.

420923420

Unavailable

4

REBUILD-CYLINDER NICASIL REP. 699 - Call your local BRP dealership

421000064

Unavailable

5

Exhaust Valve | Formula III 700 R.

420854307

Unavailable

6

O-Ring

420430110

$4.44

7

Gasket

420250239

$7.37

8

Valve Housing | Grand Touring 600.

420854265

Unavailable

9

Socket Head Screw M6 x 16

420241237

$2.22

10

Exhaust Bellows

420260723

$42.49

11

Exhaust Valve This part replaces 290253257.

420854449

$35.99

12

Clamp 77 mm | Formula Deluxe 583.

420251920

Unavailable

13

Spring

420239945

Unavailable

14

Valve Cover

420911552

$38.99

15

Adjuster Screw

420241221

$14.22

16

SPRING CLIP - Call your local BRP dealership

420838083

Unavailable

17

O-Ring

420430220

$8.26

18

Hex. Collar Screw M8 x 45

420640432

$8.57

19

Collar Hex. Screw M8 x 53.5

420640441

Unavailable

20

O-Ring | Grand Touring 500.

420831792

$15.89

21

SEAL RING - Call your local BRP dealership

420931320

Unavailable

22

Cylinder Head (Violet) | Formula III 700.

420923127

Unavailable

23

O-Ring

420430782

$5.39

24

O-Ring | Formula III 700 R.

420931330

Unavailable

25

Cylinder Head Cover (Violet) | Formula III 700.

420923133

Unavailable

26

Hex. Screw M8 X 56.5

420941627

$8.57

27

SEALING RING - Call your local BRP dealership

420931270

Unavailable

28

RETAINING DISK - Call your local BRP dealership

420927745

Unavailable

29

Exhaust Socket

420922485

Unavailable

30

WASHER-LOCK DIN.128 - Call your local BRP dealership

420945751

Unavailable

31

Hex. Screw M6 X 40

207064044

$1.48

32

Gasket

420850338

$11.60

33

COVER - Call your local BRP dealership

420926260

$26.99

34

TAPTITE SCREW M6 X 16 - Call your local BRP dealership

420240580

Unavailable

35

PLUG SCREW - Call your local BRP dealership

420240480

Unavailable

36

Gasket

420850552

$8.85

37

Exhaust Socket

420978818

Unavailable

38

Lock Washer M6, Black

234161471

$0.53

39

Socket Head Screw M6 X 25

205062544

$1.15

40

Gasket Set | Formula III 700 R.

420886313

Unavailable

41

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

42

Loctite 243, 10 ml

293800060

$21.49

43

Dow Corning 111, 150 g

413707000

$59.99

44

Hose Spring This part replaces 420838253.

420838255

$7.41
