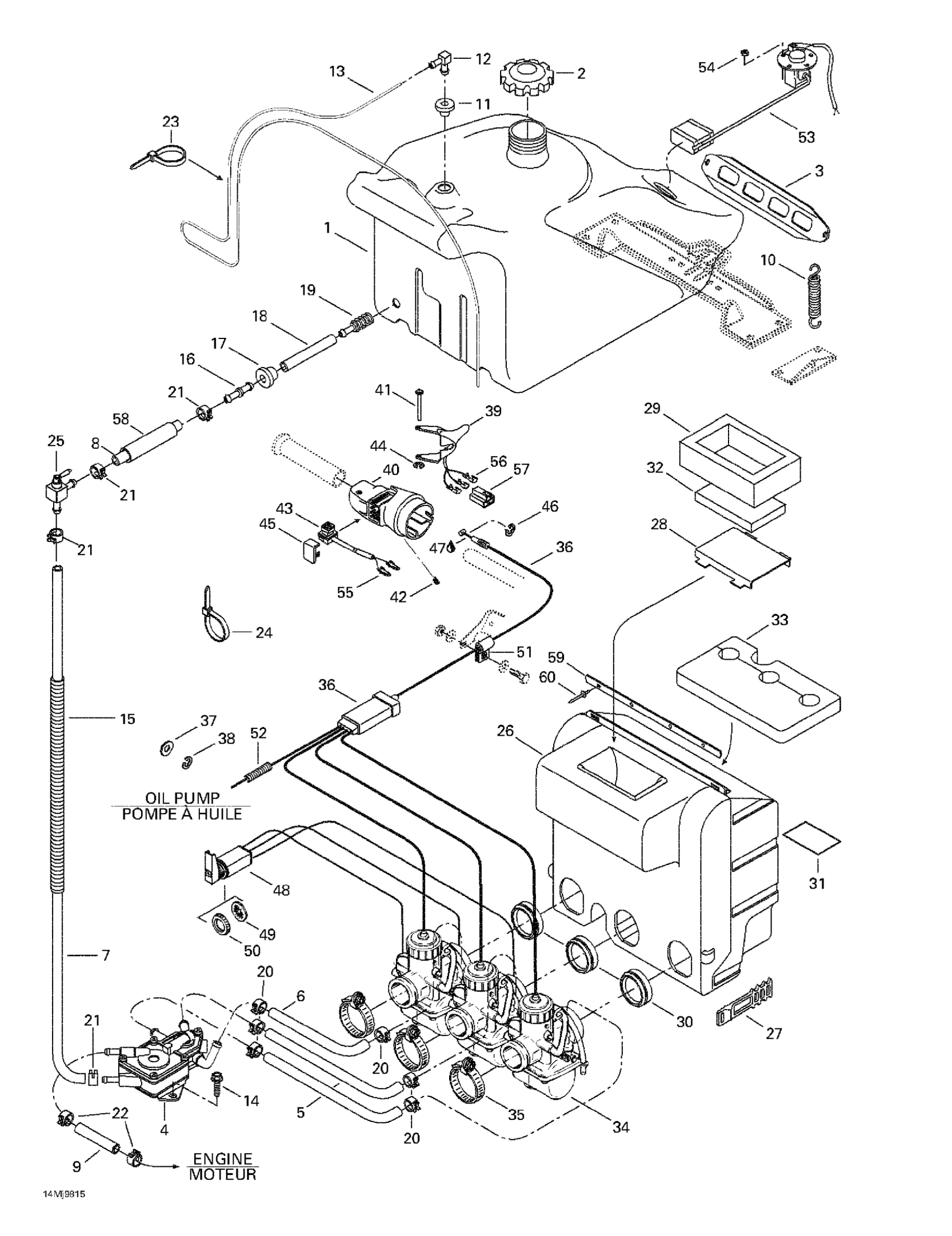

Ski-Doo Mach 1 R, 1998 02- Fuel System Diagram

#

Description
Price

1

Fuel Tank

572088000

Unavailable

2

Fuel Tank Cap 91 Octane

513033722

$22.49

3

Fuel Tank Bracket

517249200

Unavailable

4

FUEL PUMP - Call your local BRP dealership

513032929

$79.99

5

Tube

415117800

Unavailable

6

Formed Tube | Formula III 700 R.

415117900

Unavailable

7

Formed Hose

415046200

Unavailable

8

Hose

415112100

Unavailable

9

Hose

219704549

$50.99

10

Spring

415107100

$6.35

11

Grommet

709200285

$9.69

12

Male Connector

414814100

$2.22

13

Was 415080100 Fuel Line Primer 3,2mm

219704409

$79.49

14

HEX. FLANGED SCREW M5 X 11 - Call your local BRP dealership

210251180

Unavailable

15

Tubing 16 Mm 1000Mm Long

219704408

$7.49

16

Male Connector

414872700

$1.90

17

Grommet | Europe

707800347

$10.49

18

POLYURETHANE HOSE 7.6MM - Call your local BRP dealership

415097800

Unavailable

19

Fuel Filter Strainer | CHALLENGER 1800 5600/5601.

414872100

$12.49

20

Spring Clamp

414420700

$0.72

21

Spring Clamp

414655700

$0.72

22

Spring Clamp

414415200

$0.88

23

Tie-Rap 180 mm

414115200

$0.11

24

Tie Wrap 368 mm

293750008

$1.04

25

Shut-Off Valve

415112200

Unavailable

26

Air Silencer Ass'y (3 Holes) | Includes 26 - 33.

580651701

Unavailable

27

LATCH - Call your local BRP dealership

570069700

Unavailable

28

Intake Grill

517294400

Unavailable

29

Lower Foam

415081300

Unavailable

30

Air Adaptor | Formula III 700 R.

570065900

Unavailable

31

Warning Decal

414161500

Unavailable

32

Air Filter

415081400

Unavailable

33

Inner Foam

415081200

Unavailable

34

VM 38-393 Carburetor | Includes 1 - 37.

403132400

Unavailable

35

Clamp

420951510

Unavailable

36

Throttle Cable and Housing

415044400

Unavailable

37

Flat Washer 8 mm, Nylon

234081100

$1.39

38

Circlip

414753500

$0.71

39

Handle Ass'y 40 mm

572101900

Unavailable

40

Throttle Handle Housing

572100900

Unavailable

41

Lever Pin

414438700

$11.64

42

Socket Set Screw M8 X 10

414440800

$4.12

43

Emergency Stop Switch | Includes 91 to 91a

515177362

$86.99

44

Circlip | Model-RS

414439000

$4.23

45

Switch Cover

572100901

$14.83

46

Circlip

414274500

$0.90

47

Dielectric Grease, 150 g This part replaces 413701700.

293550004

Unavailable

48

Choke Cable | Formula III 700 R.

415077700

Unavailable

49

Lock Washer, Interior Teeth

394103300

Unavailable

50

NUT-PLASTIC - Call your local BRP dealership

512059364

Unavailable

51

Open Clamp

414176000

$1.99

52

Was 409901800 Tubing (13 mm)

219704400

$14.49

53

Fuel Sensor Ass'y | Includes 46 - 49.

415080800

Unavailable

54

Elastic Stop Nut M5

232551414

$0.87

55

MALE TERMINAL - Call your local BRP dealership

409210000

Unavailable

56

Female Terminal PACKARD

561503200

Unavailable

57

Female Terminal Housing (3 circuits)

409008500

Unavailable

58

Hose

513032904

Unavailable

59

Reinforcement

508000008

Unavailable

60

Rivet

390401400

$0.53
