Description

Price

1

Not Available As Spare Part - Friction Washer

Unavailable

2

Seat Cover (1 pass.) | Formula Z.

415042003

Unavailable

3

Foam Seat

414837100

Unavailable

4

Sub-Seat

572059600

Unavailable

5

Flat Washer

517225900

$0.18

6

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

7

«T» Bolt

732601221

Unavailable

8

Push Nut

732610072

$2.19

9

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

10

LIGHT HOUSING - Call your local BRP dealership

510004061

Unavailable

11

Flat Washer

517225900

$0.18

12

Hex. Screw M5 X 30

207053044

$1.16

13

Hex. Flange Elastic Nut M5

233251414

$1.04

14

Bulb

520000758

$9.10

15

Lens

414513700

$28.99

16

Washer - Call your local BRP dealership

414516400

Unavailable

17

Phillips Tapping Screw M3.9 X 25

209632540

$1.26

18

REAR BUMPER - Call your local BRP dealership

518314000

Unavailable

19

HEX. SCREW 12 X 3/4 - Call your local BRP dealership

365901100

Unavailable

20

Flat Washer 8 mm

234081410

$0.83

21

Lock Washer 8 mm

234181401

$0.92

22

Hex. Screw M8 X 20

207182044

$0.74

23

REFLECTOR, RED - Call your local BRP dealership

414510100

Unavailable

24

WASHER-LOCK SERRATED DIN.6798A - Call your local BRP dealership

224151101

Unavailable

25

PHILLIPS SCREW M5 X 10 - Call your local BRP dealership

208651041

Unavailable

26

RH Moulding Ass'y | Includes 26 - 29.

580642000

Unavailable

LH Moulding Ass'y

580642100

Unavailable

RH Moulding Ass'y | Includes 25 - 28.

580641600

Unavailable

LH Moulding Ass'y

580641700

Unavailable

27

Rear Trunk

572039802

Unavailable

28

Rivet (Black) 3/16 | Formula 500 LC.

390909600

Unavailable

29

SEAT BUCKLE - Call your local BRP dealership

414728000

Unavailable

30

Snow Gard (Red) | Formula 500.

572076501

Unavailable

31

Flat Washer

517225900

$0.18

32

ADJUSTER WRENCH (SUSPENSION) - Call your local BRP dealership

529034100

Unavailable

Wrench-Adjuster | Formula III 600 LT. Formula III 700. Formula III 700 R.

529030700

Unavailable

33

ADJUSTER WRENCH (REAR SUSPENSION) - Call your local BRP dealership

529019000

Unavailable

34

Retainer Plate

518301100

Unavailable

35

Reinforcement

518306000

Unavailable

36

Pop Rivet 3/16"

390402200

$0.35

37

Tool Kit

529027900

Unavailable

38

TOOLS BOX - Call your local BRP dealership

708200043

Unavailable

39

Reinforcement | Formula Z. Formula 583.

572097000

Unavailable

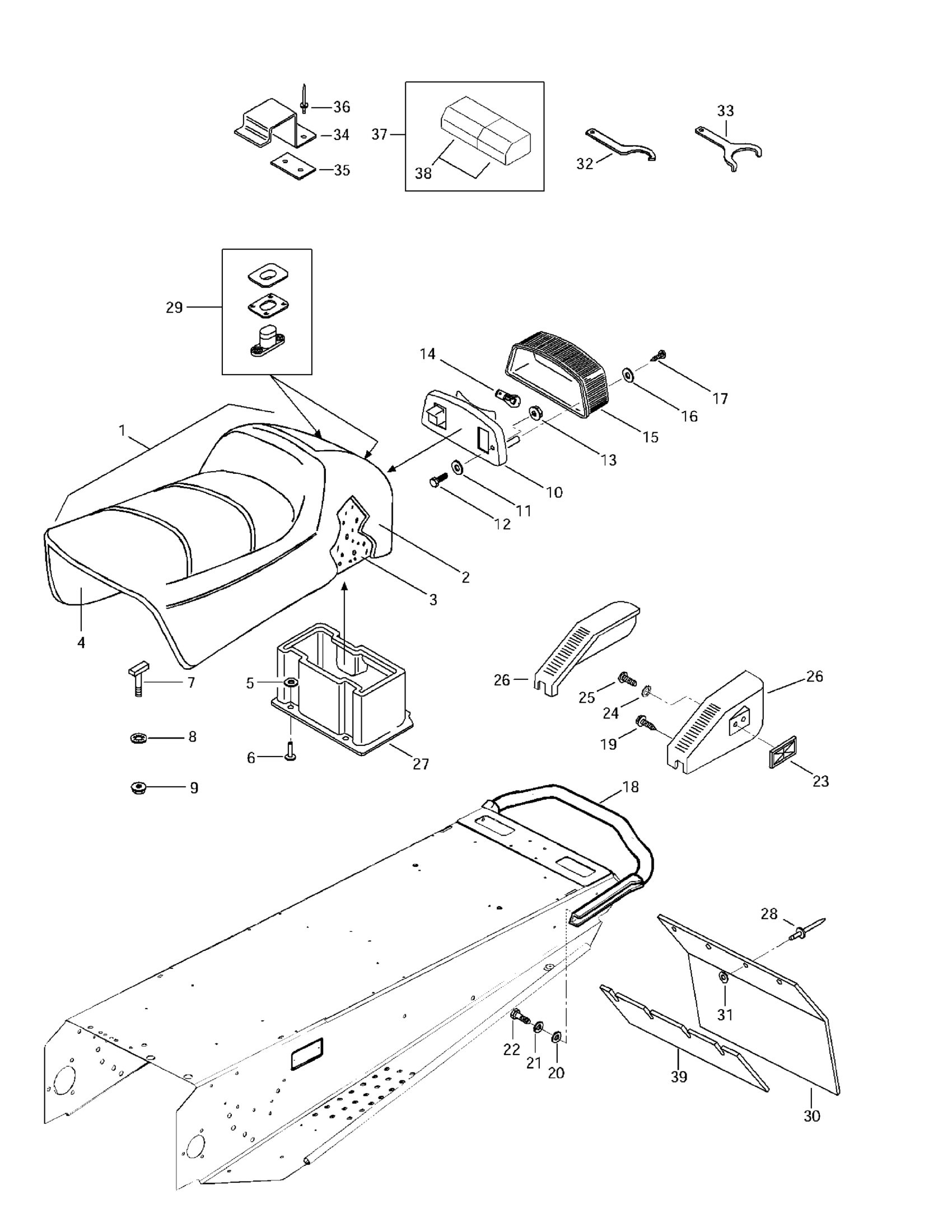

Ski-Doo Mach 1, 1997 09- Seat And Accessories Diagram

Not Available As Spare Part - Friction Washer

Seat Cover (1 pass.) | Formula Z.

Foam Seat

Sub-Seat

Flat Washer

Pop Rivet 3/16" | DS 650 X

«T» Bolt

Push Nut

Hex. Flange Elastic Nut M6 x 1.0

LIGHT HOUSING - Call your local BRP dealership

Flat Washer

Hex. Screw M5 X 30

Hex. Flange Elastic Nut M5

Bulb

Lens

Washer - Call your local BRP dealership

Phillips Tapping Screw M3.9 X 25

REAR BUMPER - Call your local BRP dealership

HEX. SCREW 12 X 3/4 - Call your local BRP dealership

Flat Washer 8 mm

Lock Washer 8 mm

Hex. Screw M8 X 20

REFLECTOR, RED - Call your local BRP dealership

WASHER-LOCK SERRATED DIN.6798A - Call your local BRP dealership

PHILLIPS SCREW M5 X 10 - Call your local BRP dealership

RH Moulding Ass'y | Includes 26 - 29.

LH Moulding Ass'y

RH Moulding Ass'y | Includes 25 - 28.

LH Moulding Ass'y

Rear Trunk

Rivet (Black) 3/16 | Formula 500 LC.

SEAT BUCKLE - Call your local BRP dealership

Snow Gard (Red) | Formula 500.

Flat Washer

ADJUSTER WRENCH (SUSPENSION) - Call your local BRP dealership

Wrench-Adjuster | Formula III 600 LT. Formula III 700. Formula III 700 R.

ADJUSTER WRENCH (REAR SUSPENSION) - Call your local BRP dealership

Retainer Plate

Reinforcement

Pop Rivet 3/16"

Tool Kit

TOOLS BOX - Call your local BRP dealership

Reinforcement | Formula Z. Formula 583.
