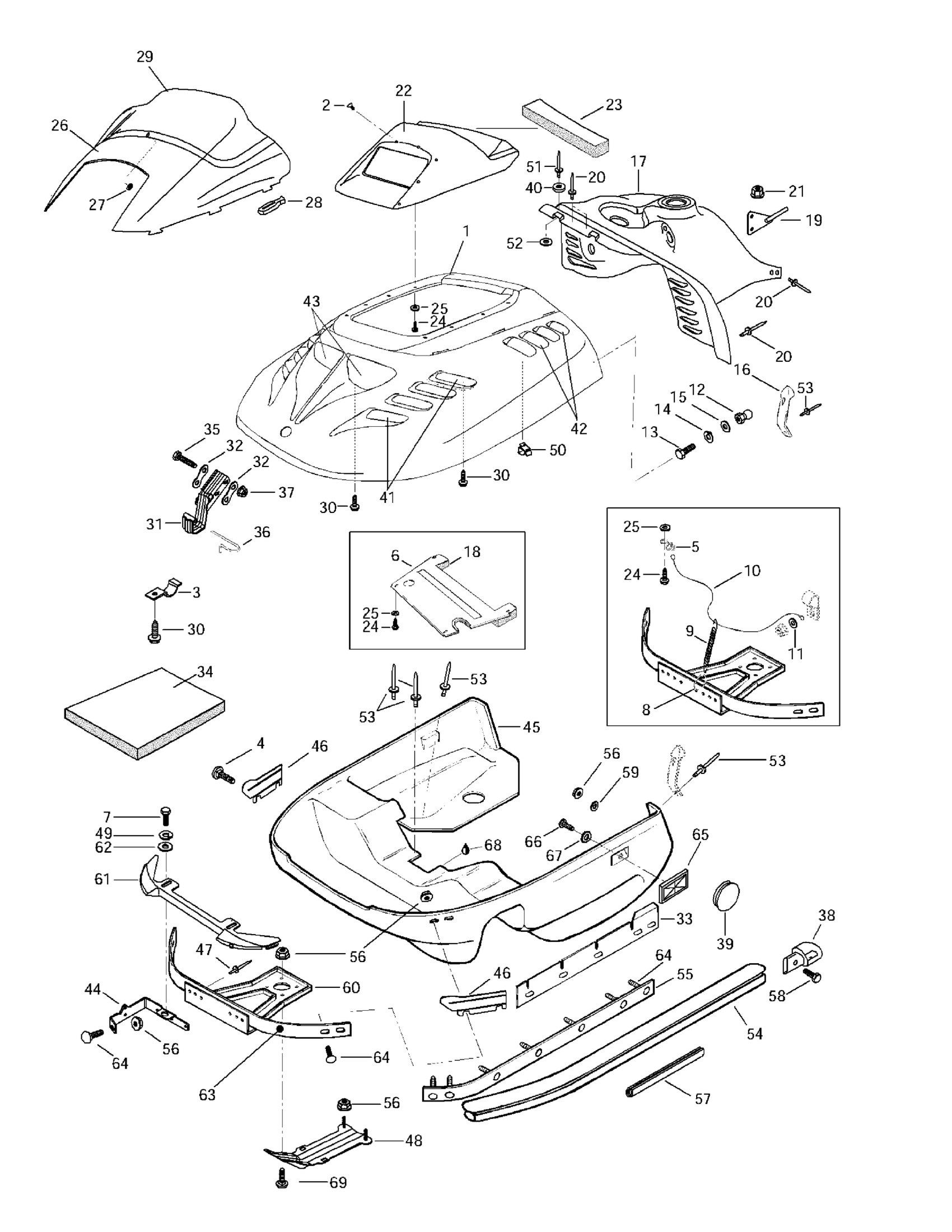

Ski-Doo Mach 1, 1997 09- Cab, Console Diagram

#

Description
Price

1

Cab (Black)

572079327

Unavailable

2

Dart

414939500

$1.04

3

Bracket

517274400

Unavailable

4

Carriage Bolt M6 x 20

732601214

Unavailable

5

Bracket

517262800

Unavailable

6

Air Deflector

572081700

Unavailable

7

Hex. Screw M6 X 16

207161644

$0.74

8

RING - Call your local BRP dealership

415058300

Unavailable

9

Spring

414763300

Unavailable

10

Cab Retainer Cable

414212300

Unavailable

11

Flat Washer

224060201

$1.26

12

Knob

517245800

$11.12

13

Hex. Screw M5 X 14

207151444

$0.87

14

Lock Washer 5 mm | Europe

234151401

$0.55

15

Washer | DS 650 X

391301600

$0.48

16

Hood Latch

570027100

$13.49

17

Tank Cover

572075100

Unavailable

18

Acoustic Foam

415026200

Unavailable

19

LH Bracket Plate

517260700

Unavailable

RH Bracket Plate

517260701

Unavailable

20

Pop Rivet 3/16"

390406500

$0.88

21

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

22

Dash

572074000

Unavailable

23

Foam

414966100

Unavailable

24

Screw-hex.taping 12

365901400

Unavailable

25

Flat Washer

224061201

$1.37

26

Windshield Support (Smoked)

572043400

Unavailable

27

Push Nut

732610072

$2.19

28

Windshield Latch

570023800

$4.49

29

WINDSHIELD LOW - Call your local BRP dealership

414795900

Unavailable

30

HEX. FLANGED SCREW #8 X 3/8 - Call your local BRP dealership

732601210

Unavailable

31

Hinge

517273500

Unavailable

32

Plate

517274300

Unavailable

33

RH Cab Guide

517279500

Unavailable

LH Cab Guide

517279600

Unavailable

34

Acoustic Foam

414632400

Unavailable

Acoustic Foam

414631900

Unavailable

35

Hex. Screw M6 X 55

207065544

$2.11

36

RH Pin

414939800

Unavailable

LH Pin

414939802

Unavailable

37

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

38

RH Cap

572036700

Unavailable

LH Cap

572036800

Unavailable

39

BOTTOM PAN CAP - Call your local BRP dealership

570045101

Unavailable

40

Rubber Stopper

415018100

$2.49

41

RH Front Grill

517276200

Unavailable

LH Front Grill

517276300

Unavailable

42

RH Rear Grill

517284300

Unavailable

LH Rear Grill

517283200

Unavailable

43

Central Grill

517276400

Unavailable

44

RH Hinge Bracket

517273200

Unavailable

LH Hinge Bracket

517273300

Unavailable

45

Bottom Pan (Black)

572076101

Unavailable

46

Front Guide R.H

517279000

Unavailable

Front Guide L.H

517279100

Unavailable

47

Pop Rivet 3/16" | DS 650 X

390402000

$0.33

48

Link Plate

506123000

Unavailable

49

Lock Washer M6, Black

234161471

$0.53

50

Clip

414227300

$1.67

51

Pop Rivet 1/8" | SM5

390401600

$5.69

52

Flat Washer | Not shown

391300800

$0.87

53

Pop Rivet 3/16"

390906800

$0.93

54

Front Bumper

517243902

Unavailable

55

Strip Located

414967400

Unavailable

56

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

57

Bumper Moulding (Viper Red)

414965800

Unavailable

58

Cap Screw

732601148

Unavailable

59

Flat Washer

224060201

$1.26

60

Front Reinforcement

517271200

Unavailable

61

Front Moulding

572059100

Unavailable

62

Flat Washer

224061201

$1.37

63

Hinge Bracket

517274700

Unavailable

64

Carriage Bolt M6 X 25

207762544

$1.69

65

REFLECTOR, AMBER - Call your local BRP dealership

414510200

Unavailable

66

PHILLIPS SCREW M5 X 10 - Call your local BRP dealership

208651041

Unavailable

67

WASHER-LOCK SERRATED DIN.6798A - Call your local BRP dealership

224151101

Unavailable

68

SEALANT, SIKAFLEX BLACK # 221 - Call your local BRP dealership

293530011

Unavailable

69

Carriage Bolt M6 X 20 | DS 650 X

207762044

$1.58

70

Front Deflector Foam

415025600

Unavailable

71

Foam # 6

414931600

Unavailable

72

RH Lower Foam (not shown)

415040800

Unavailable

73

LH Lower Foam (not shown)

415040900

Unavailable

74

Center Foam

415045300

Unavailable

75

Rear Foam

415045400

Unavailable
