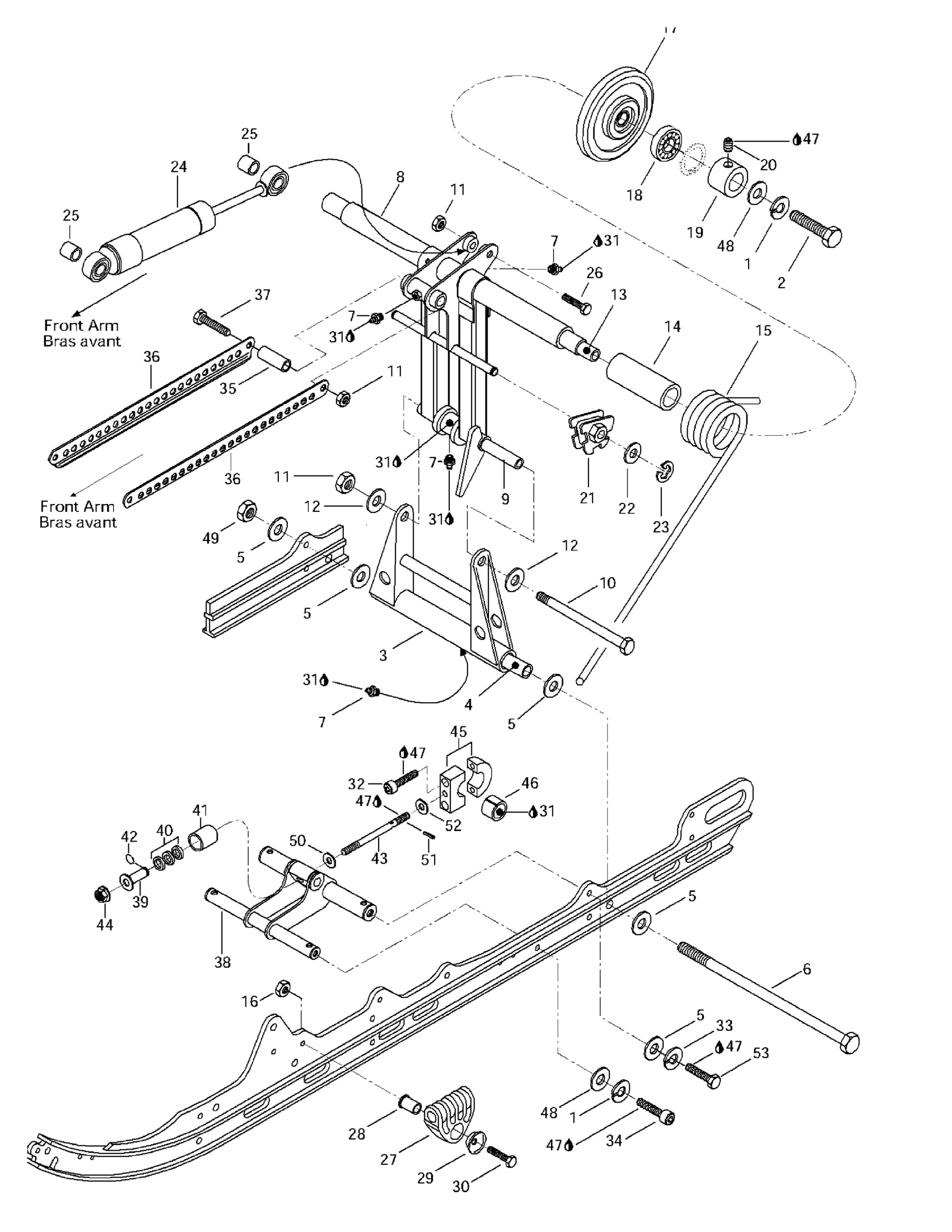

Ski-Doo Mach 1, 1997 08- Rear Arm, Rear Suspension Diagram

#

Description
Price

1

WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership This part replaces 224701188.

234100602

Unavailable

2

Hex. Screw M10 X 35

207103544

$1.58

3

Pivot Welded Arm

503169200

Unavailable

4

Lower Axle Pivot

503154703

Unavailable

5

FLAT WASHER - Call your local BRP dealership

224081201

Unavailable

6

Bolt M8 X 248mm

503192440

$30.49

7

Grease Fitting

408200700

$3.49

8

Welded Rear Arm | Formula Z 583. Formula 583 Deluxe.

503172800

Unavailable

9

Upper Axle, Pivot Arm

503144300

$11.65

10

Bolt M8, Short

732601197

$15.36

11

Hex. Elastic Stop Nut M8

232581414

$0.56

12

Flat Washer 8 mm

234081410

$0.83

13

Rear Cross Shaft

503168700

Unavailable

14

Bushing

572080700

$17.39

15

RH SPRING - Call your local BRP dealership

414943500

Unavailable

LH SPRING - Call your local BRP dealership

414943600

Unavailable

16

Elastic Stop Nut M6

232561414

$0.55

17

Idler Wheel | Includes 17 - 18.

572091400

Unavailable

18

Ball Bearing

293350115

$12.11

19

Retaining Ring

503168800

$14.99

20

Not Available As Spare Part - Friction Washer

Unavailable

21

LH ADJUST CAM - Call your local BRP dealership

572030800

Unavailable

RH ADJUST CAM - Call your local BRP dealership

572030900

Unavailable

22

Flat Washer 10 mm

234001410

$1.26

23

e Circlip

371907100

Unavailable

24

Shock | Mach 1.

415033600

Unavailable

Shock (HPG) | Formula III.

415055600

Unavailable

Shock | Formula III-LT.

415033400

Unavailable

25

Bushing

414936000

$13.99

26

Hex. Screw M8 X 50

207085044

$1.48

27

Spring Support

503189657

$11.99

28

SPRING AXLE GUIDE - Call your local BRP dealership | Formula 500. Formula 500 Deluxe.

503152700

Unavailable

29

Retainer Washer | Formula 500. Formula 500 Deluxe.

517041700

Unavailable

30

Hex. Screw M6 X 45

207064544

$2.11

31

LITHIUM GREASE, 400 GR - Call your local BRP dealership | Skandic WT LC.

413706100

Unavailable

32

Socket Head Screw M8 X 30

205083044

$1.15

33

Lock Washer 8 mm

234181401

$0.92

34

Socket Screw M10 X 35

205003544

$1.69

35

Tie Rod Shaft

503158600

Unavailable

36

Tie Rod | Formula Z 583. Formula 583 Deluxe.

503158700

Unavailable

Tie Rod | Formula III 600 LT.

503170900

Unavailable

37

HEX. SCREW M8 X 75 - Call your local BRP dealership

207087544

Unavailable

38

Bracket Weld | Formula Z.

503171900

Unavailable

39

Bushing

503172900

Unavailable

40

RUBBER STOPPER - Call your local BRP dealership

570049600

Unavailable

41

Cup

503103600

Unavailable

42

Circlip

371910700

Unavailable

43

Threaded Rod | Formula Z.

503173100

Unavailable

44

Hex. Flange Elastic Nut M10

233201414

$1.58

45

Pivot Block | Formula Z.

580647900

Unavailable

46

CUSHION - Call your local BRP dealership

415027800

Unavailable

47

Loctite 271, 10 ml

293800005

$26.99

48

Flat Washer 10 mm

234001410

$1.26

49

Hex. Flange Elastic Nut M8

233281414

$1.47

50

Washer

503172700

Unavailable

51

Not Available As Spare Part - Friction Washer

Unavailable

52

Washer | Formula Z.

503173000

Unavailable

53

Hex. Screw M8 x 30 | Formula Z.

222083066

Unavailable
