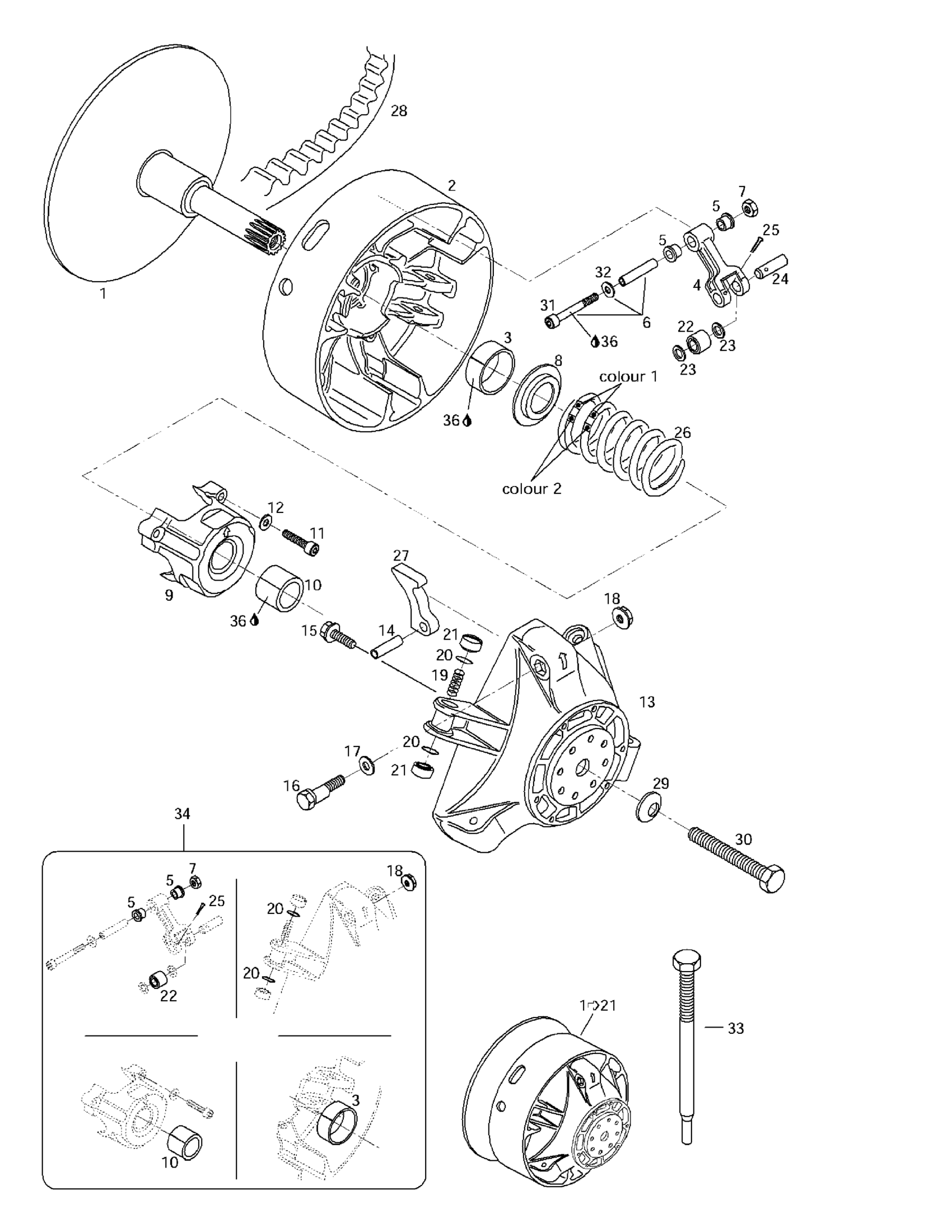

Ski-Doo Mach 1, 1997 05- Drive Pulley Diagram

#

Description
Price

1

Drive Pulley Ass'y | Includes 1 - 23.

417216100

Unavailable

1

Inner Half Ass'y | Formula 500. Formula 500 Deluxe.

417003500

Unavailable

2

OUTER HALF ASS'Y - Call your local BRP dealership | Includes 2 - 3.

417003700

Unavailable

3

Bushing

417004201

$25.99

4

Lever Ass'y | Includes 5 - 6.

417003800

Unavailable

5

Bushing

417004305

$11.52

6

SCREW ASSY - Call your local BRP dealership | Includes 12 to 13

417004800

Unavailable

7

Elastic Stop Nut M6

232561414

$0.55

8

Spring Seat

417005000

Unavailable

9

Spring Cover Ass'y | Includes 9 - 10.

417004000

Unavailable

10

Bushing

417004501

$24.99

11

Allen Screw M6 x 40

222964066

Unavailable

12

WASHER - Call your local BRP dealership

420245370

Unavailable

13

GOVERNOR CUP - Call your local BRP dealership

417004701

Unavailable

14

Pin M8 X 24

732804009

Unavailable

15

Hex. Locking Screw M6 x 18 | Formula Deluxe 500.

732601249

Unavailable

16

CALIBRATION SCREW - Call your local BRP dealership

417222955

Unavailable

17

Washer

417005600

$4.09

18

Hex. Flange Nut M6

233061414

$1.68

19

Spring

417005700

$4.76

20

O-Ring

732401030

$0.98

21

Slider Shoe This part replaces 420460045.

417223021

$5.90

22

Roller

417222947

$21.99

23

Stopper Washer

417004302

$15.90

24

Pin

417004308

$13.99

25

Cotter Pin

250400060

$2.00

26

SPRING, ROSE/WHITE - Call your local BRP dealership | North America

414991400

Unavailable

SPRING (GREEN/BLUE) - Call your local BRP dealership

414768200

Unavailable

27

Ramp (286) | Formula DLX 500 LC.

417005286

Unavailable

28

Drive Belt | Formula Deluxe 700.

417300067

$134.99

29

Spring Washer 14 mm

250200006

$6.99

30

Drive Pulley Bolt

417120000

$65.49

31

SOCKET HEAD SCREW M6 X 50 - Call your local BRP dealership

205065044

Unavailable

32

Flat Washer 6 mm

234061410

$1.36

33

Puller This part replaces 529022400.

529000064

$71.99

34

Clutch Repair Kit

417006100

$189.99

35

Hight Altitude Kit, (Not Shown)

861756100

Unavailable

High Altitude Kit (Not Shown) | Mach Z.

861755900

Unavailable

High Altitude Kit (Not Shown) | Mach Z-LT.

861756000

Unavailable

36

Loctite 609, 10 ml

413703100

$26.99
