1997 Ski-Doo Mach 1 Fuel System Diagram

← All diagrams

Find the part on the Fuel System diagram for your 1997 Ski-Doo Mach 1, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

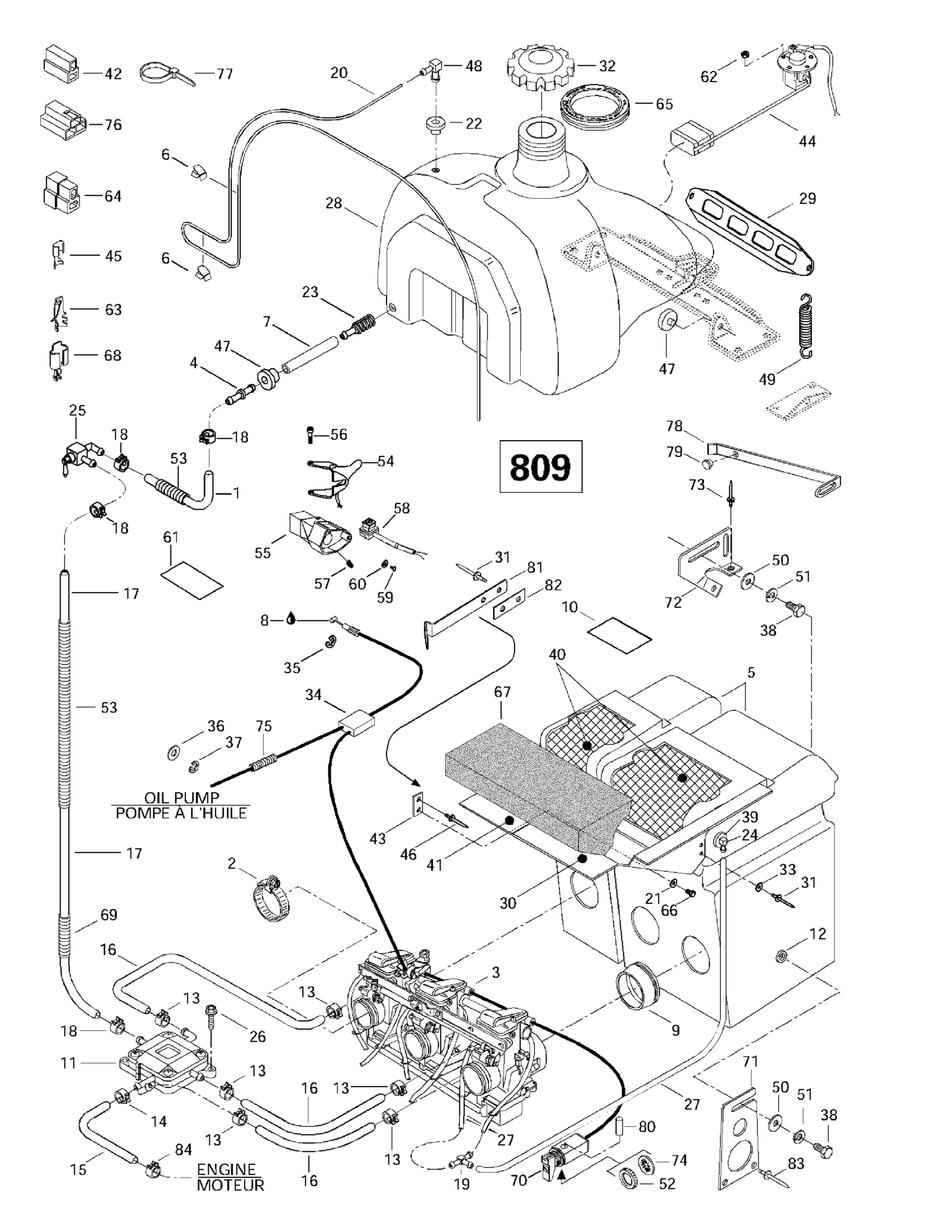

1997 Ski-Doo Mach 1 Fuel System Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

Hose | Formula Z. Formula 583.

414933900

—
Out of stock

2

Clamp

420951510

—
Out of stock

3

Carburetors Ass'y TM38-C159 | Includes 1 - 26. Mach Z. Mach Z-LT.

403129500

—
Out of stock

4

Male Connector

414872700

1
Out of stock

5

Air Silencer Ass'y 2 Holes | Mach Z. Mach Z-LT. (incl. 9, 10, 12, 30, 31, 33, 39, 40)

580647602

—
Out of stock

AIR SILENCER ASS'Y 1 HOLE - Call your local BRP dealership | Mach Z. Mach Z-LT. (incl. 9, 12, 31, 33, 39, 40, 41, 43, 46, 81, 82)

580647702

—
Out of stock

6

Clip

414227300

2
Out of stock

7

Hose

415005700

1

$5.49

In stock

8

Dielectric Grease, 150 g This part replaces 413701700.

293550004

—
Out of stock

9

Intake Adaptor | Mach Z. Mach Z-LT.

570046400

—
Out of stock

10

Warning Decal

414161500

—
Out of stock

11

Fuel Pump (70 Liters)

403901100

—
Out of stock

12

—

$4.32

In stock

13

Spring Clamp

414554800

6
Out of stock

14

Spring Clamp

414415200

2
Out of stock

15

Impulse Hose 6.35 mm

415063100

—
Out of stock

16

Polyurethane Hose 10000Mm Long

219704410

1
Out of stock

17

FUEL LINE 10000MM LONG - Call your local BRP dealership

219704411

—
Out of stock

18

Spring Clamp

414655700

4
Out of stock

19

T-Fitting

414222400

3

$1.33

In stock

20

Fuel Line 3.18 mm | Formula 500. Formula 500 Deluxe.

414296900

—
Out of stock

21

WASHER-LOCK SERRATED DIN.6798A - Call your local BRP dealership

224151101

—
Out of stock

22

Grommet

709200285

1
Out of stock

23

Fuel Filter Strainer | CHALLENGER 1800 5600/5601.

414872100

1
Out of stock

24

Elbow Fitting | Mach Z. Mach Z-LT.

572075200

—
Out of stock

25

Shut Off Valve | MX Z 670 HO.

414872200

—
Out of stock

26

Hexagonal Head Screw

210262050

2
Out of stock

27

Fuel Line 3.18 mm | Formula 500. Formula 500 Deluxe.

414296900

—
Out of stock

28

Fuel Tank

572057100

—
Out of stock

29

Fuel Tank Bracket

517249200

—
Out of stock

30

Deflector (2 Holes Silencer)

517284900

—
Out of stock

31

Rivet

390406600

—
Out of stock

32

Fuel Tank Cap 91 Octane

513033722

1
Out of stock

33

Flat Washer

517225900

8
Out of stock

34

Throttle Cable and Housing | Mach Z. Mach Z-LT.

414966301

—
Out of stock

35

Circlip

414274500

1
Out of stock

36

Flat Washer 8 mm, Nylon

234081100

1
Out of stock

37

Circlip

414753500

1
Out of stock

38

Hex. Screw M6 X 20 | XT Models

207162044

2
Out of stock

39

Grommet | Mach Z. Mach Z-LT.

570047400

—
Out of stock

40

Air Filter Foam (1 Holes Silencer)

572029103

—
Out of stock

Air Filter Foam (2 Holes Silencer)

572029007

—
Out of stock

41

Deflector (1 Holes Silencer)

517285000

—
Out of stock

42

FEMALE TERMINAL HOUSING, 24 CIRCUITS - Call your local BRP dealership

409204600

—
Out of stock

43

Plate

517278500

—
Out of stock

44

Fuel Sender Ass'y | Formula Z.

580651100

—
Out of stock

45

Female Terminal

561503100

1
Out of stock

46

Pop Rivet 3/16"

390402400

1

$0.25

In stock

47

Grommet | Europe

707800347

3

$7.58

In stock

48

Male Connector

414814100

1
Out of stock

49

Spring

415107100

2
Out of stock

50

Flat Washer

224061121

2
Out of stock

51

Lock Washer M6, Black

234161471

2
Out of stock

52

—

$6.66

In stock

53

Tubing 16 Mm 1000Mm Long

219704408

1
Out of stock

54

Heat Throttle Handle (26 mm) | Formula III 800.

572073300

—
Out of stock

Heat Throttle Handle (26 mm) | Formula III 800.

572073100

—
Out of stock

55

Throttle Handle Housing | Mach 1. Mach Z-LT. .

572073400

—
Out of stock

56

Flange Screw

732601143

2
Out of stock

57

Socket Set Screw M8 X 10

414440800

1
Out of stock

58

Emergency Stop Switch | Includes 91 to 91a

515177362

1
Out of stock

59

Screw

414473200

—

$3.69

In stock

60

WASHER-FLAT - Call your local BRP dealership

391300700

—
Out of stock

61

Security Label | MX Z 670 HO.

414931500

—
Out of stock

62

Elastic Stop Nut M5

232551414

5
Out of stock

63

MALE TERMINAL - Call your local BRP dealership

409210000

—
Out of stock

64

MALE HOUSING - Call your local BRP dealership

409204500

—
Out of stock

65

Rubber Ring

570276900

—
Out of stock

66

Screw M5 x 14

222851465

—
Out of stock

67

Air Filter

415027600

—
Out of stock

68

Female Terminal PACKARD

561503200

—
Out of stock

69

Tubing

414942900

—
Out of stock

70

Choke Cable Ass'y | Includes 13 - 14.

561205500

—
Out of stock

71

External Bracket

517252000

—
Out of stock

72

Internal Bracket

518313900

—
Out of stock

73

Pop Rivet 3/16"

390402200

1
Out of stock

74

Lock Washer, Interior Teeth

394103300

—
Out of stock

75

1

$9.40

In stock

76

Female Terminal Housing (3 circuits)

409008500

—
Out of stock

77

Tie-Rap 180 mm

414115200

1
Out of stock

78

Support | Mach Z. Mach Z-LT.

517279700

—
Out of stock

79

Rubber Bumper

293830005

1
Out of stock

80

Spring Pin

372118400

—
Out of stock

81

Support | Mach Z. Mach Z-LT.

517291700

—
Out of stock

82

Reinforcement

518306000

—
Out of stock

83

Avex Rivet

390909200

2
Out of stock

84

SPRING CLIP - Call your local BRP dealership

408801100

—
Out of stock
