1997 Ski-Doo Mach 1 Fuel System Diagram

← All diagrams

Find the part on the Fuel System diagram for your 1997 Ski-Doo Mach 1, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

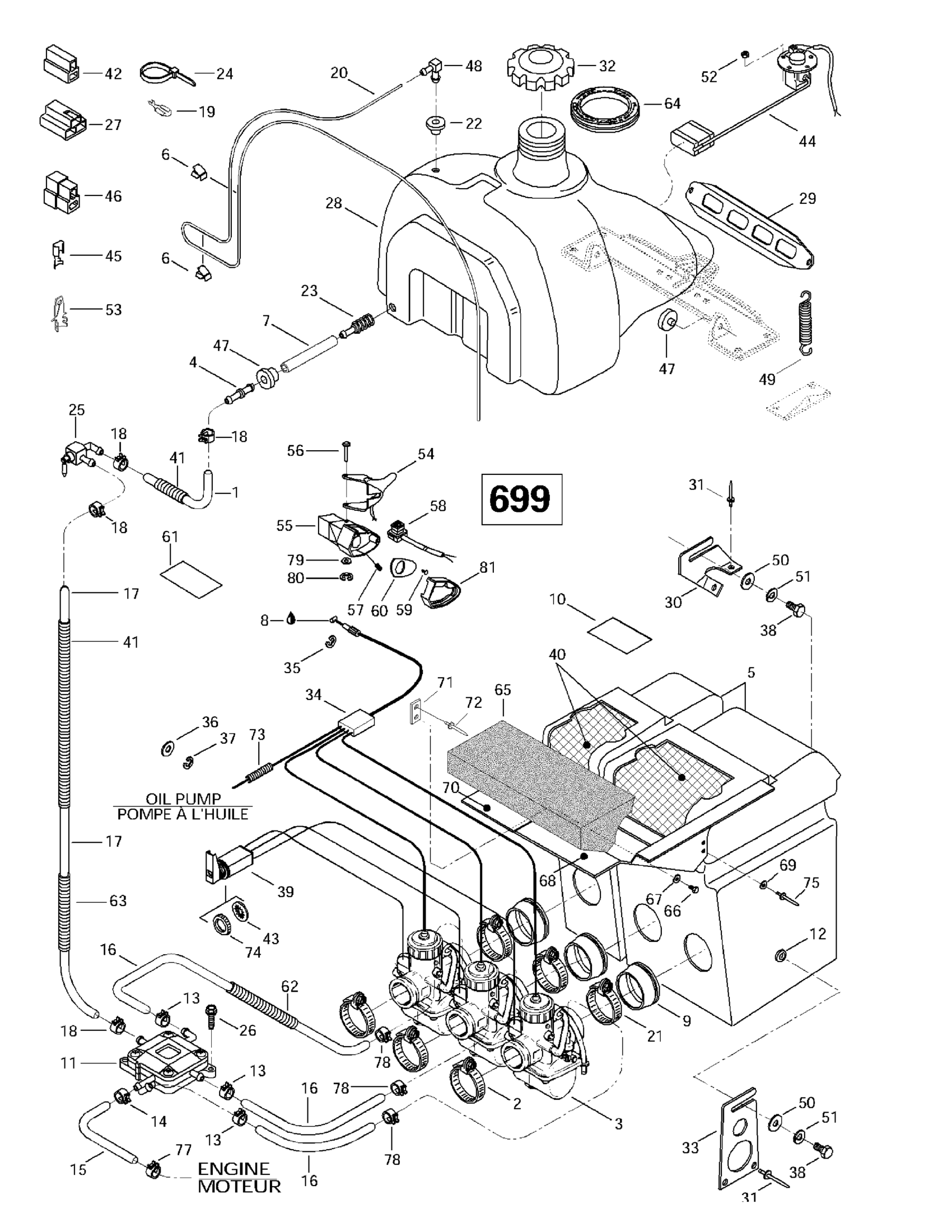

1997 Ski-Doo Mach 1 Fuel System Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

Hose | Formula Z. Formula 583.

414933900

—
Out of stock

2

Clamp

414830100

—
Out of stock

3

VM 38-356 Carburetor | Includes 1 - 38.

403129200

—
Out of stock

4

Male Connector

414872700

1
Out of stock

5

Air Silencer Ass'y 2 Holes | (Incl. 9,10,12,31,40,68,69)

580647600

—
Out of stock

Air Silencer Ass'y 1 Hole | (Incl. 9,12,31,40,69,70,71,72)

580647700

—
Out of stock

6

Clip

414227300

2
Out of stock

7

Hose

415005700

1

$5.49

In stock

8

Dielectric Grease, 150 g This part replaces 413701700.

293550004

—
Out of stock

9

Intake Adaptor

570047000

—
Out of stock

10

Warning Decal

414161500

—
Out of stock

11

Fuel Pump (70 Liters)

403901100

—
Out of stock

12

—

$4.32

In stock

13

Spring Clamp

414554800

3
Out of stock

14

Spring Clamp

414415200

1
Out of stock

15

Impulse Hose 6.35 mm

415063100

—
Out of stock

16

Polyurethane Hose 10000Mm Long

219704410

1
Out of stock

17

FUEL LINE 10000MM LONG - Call your local BRP dealership

219704411

—
Out of stock

18

Spring Clamp

414655700

4
Out of stock

19

Female Terminal PACKARD

561503200

—
Out of stock

20

Fuel Line 3.18 mm | Formula 500. Formula 500 Deluxe.

414296900

—
Out of stock

21

Clamp

414830100

—
Out of stock

22

Grommet

709200285

1
Out of stock

23

Fuel Filter Strainer | CHALLENGER 1800 5600/5601.

414872100

1
Out of stock

24

Tie-Rap 180 mm

414115200

1
Out of stock

25

Shut Off Valve | MX Z 670 HO.

414872200

—
Out of stock

26

Hexagonal Head Screw

210262050

2
Out of stock

27

Female Terminal Housing (3 circuits)

409008500

—
Out of stock

28

Fuel Tank

572057100

—
Out of stock

29

Fuel Tank Bracket

517249200

—
Out of stock

30

Internal Bracket

518313900

—
Out of stock

31

Pop Rivet 3/16"

390402200

8
Out of stock

32

Fuel Tank Cap 91 Octane

513033722

1
Out of stock

33

External Bracket

517252000

—
Out of stock

34

Throttle Cable and Housing VM-36

414966501

—
Out of stock

35

Circlip

414274500

1
Out of stock

36

Flat Washer 8 mm, Nylon

234081100

1
Out of stock

37

Circlip

414753500

1
Out of stock

38

Hex. Screw M6 X 20 | XT Models

207162044

2
Out of stock

39

Choke Cable

415006200

—
Out of stock

40

Air Filter Foam (1 Holes Silencer)

572029103

—
Out of stock

Air Filter Foam (2 Holes Silencer)

572029007

—
Out of stock

41

Tubing 16 Mm 1000Mm Long

219704408

1
Out of stock

42

FEMALE TERMINAL HOUSING, 24 CIRCUITS - Call your local BRP dealership

409204600

—
Out of stock

43

Lock Washer, Interior Teeth

394103300

—
Out of stock

44

Fuel Sender Ass'y | Formula Z.

580651100

—
Out of stock

45

Female Terminal PACKARD

561503200

—
Out of stock

46

MALE HOUSING - Call your local BRP dealership

409204500

—
Out of stock

47

Grommet | Europe

707800347

3

$7.58

In stock

48

Male Connector

414814100

1
Out of stock

49

Spring

415107100

2
Out of stock

50

Flat Washer

224061121

2
Out of stock

51

Lock Washer M6, Black

234161471

2
Out of stock

52

Elastic Stop Nut M5

232551414

5
Out of stock

53

MALE TERMINAL - Call your local BRP dealership

409210000

—
Out of stock

54

Heat Throttle Handle Ass'y (38 mm) | MX Z 500.

572090300

—
Out of stock

55

Throttle Housing

512060603

1
Out of stock

56

Lever Pin

414438700

1
Out of stock

57

Socket Set Screw M8 X 10

414440800

1
Out of stock

58

Emergency Stop Switch | Includes 91 to 91a

515177362

1
Out of stock

59

Screw

414473200

—

$3.69

In stock

60

Plate

512060390

1
Out of stock

61

Security Label | MX Z 670 HO.

414931500

—
Out of stock

62

1

$9.40

In stock

63

Tubing

414942900

—
Out of stock

64

Rubber Ring

570276900

—
Out of stock

65

Air Filter

415027600

—
Out of stock

66

Screw M5 x 14

222851465

—
Out of stock

67

WASHER-LOCK SERRATED DIN.6798A - Call your local BRP dealership

224151101

—
Out of stock

68

Deflector (2 Holes Silencer)

517284900

—
Out of stock

69

Flat Washer

517225900

8
Out of stock

70

Deflector (1 Holes Silencer)

517285000

—
Out of stock

71

Plate

517278500

—
Out of stock

72

Pop Rivet 3/16"

390402400

1

$0.25

In stock

73

1

$9.40

In stock

74

—

$6.66

In stock

75

Rivet

390406600

—
Out of stock

76

Avex Rivet

390909200

2
Out of stock

77

SPRING CLIP - Call your local BRP dealership

408801100

—
Out of stock

78

Spring Clamp

414420700

3
Out of stock

79

Flat Washer M5, Stainless

234051600

1
Out of stock

80

Circlip | Model-RS

414439000

1
Out of stock

81

—

$9.97

In stock
