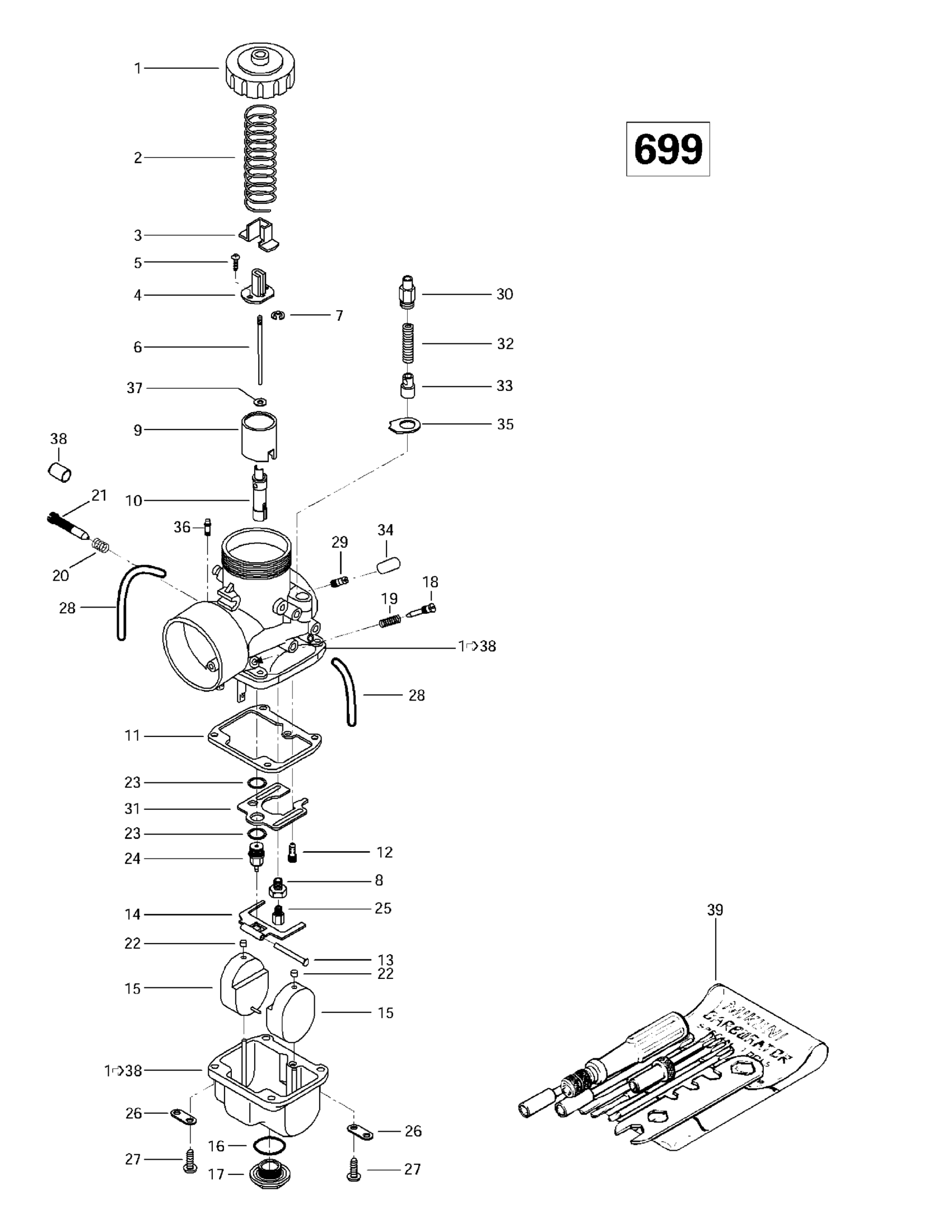

Ski-Doo Mach 1, 1997 02- Carburetors (699) Diagram
#
Description
Price
1
VM 38-356 Carburetor | Includes 1 - 38.
403129200
Unavailable
1
COVER - Call your local BRP dealership
404105100
Unavailable
4
CONNECTOR - Call your local BRP dealership
404160800
Unavailable
6
Needle J8-6DEY2 | Formula III 700 R.
404157900
Unavailable
9
Piston Valve CA 2.5
404131300
Unavailable
10
Needle Jet NJ-480-P7 | Formula Deluxe 583.
404156900
Unavailable
11
GASKET - Call your local BRP dealership
404104700
Unavailable
12
PILOT JET 50 - Call your local BRP dealership
404109500
Unavailable
14
FLOAT LEVER - Call your local BRP dealership
404105000
Unavailable
15
FLOAT - Call your local BRP dealership
404105400
Unavailable
16
O-RING - Call your local BRP dealership
404101500
Unavailable
17
DRAIN PLUG SCREW - Call your local BRP dealership
404105600
Unavailable
18
AIR SCREW - Call your local BRP dealership
404149000
Unavailable
19
SPRING - Call your local BRP dealership
404139800
Unavailable
21
IDLE SPEED SCREW - Call your local BRP dealership
404102800
Unavailable
26
PLATE - Call your local BRP dealership
404103000
Unavailable
28
Hose | Grand Touring SE.
404109800
Unavailable
30
Guide Holder
404127200
Unavailable
31
Not Available As Spare Part - Friction Washer
Unavailable
32
SPRING - Call your local BRP dealership | MAG Side
404127400
Unavailable
33
Plunger Ass'y | Formula Deluxe 380.
404127500
Unavailable
34
CAP - Call your local BRP dealership
404154900
Unavailable
35
Plate
404155600
Unavailable
36
Filter | Formula Deluxe 380.
404158900
Unavailable
38
Cap | Formula III 700 R.
404152500
Unavailable
39
TOOL KIT - Call your local BRP dealership
404112000
Unavailable
40
Hight Altitude Kit, (Not Shown)
861756100
Unavailable
