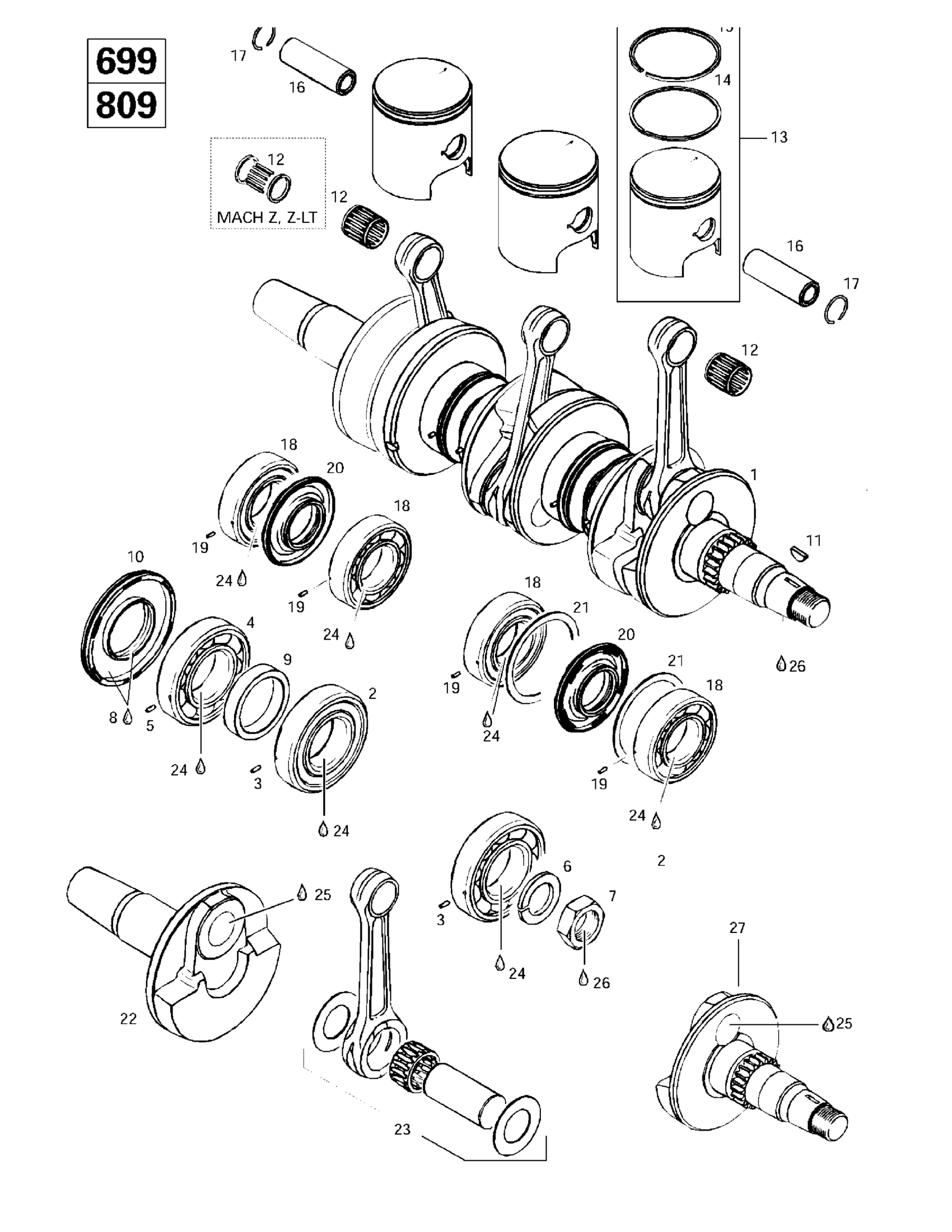

Ski-Doo Mach 1, 1997 01- Crankshaft And Pistons (699, 809) Diagram

#

Description
Price

1

Crankshaft Ass'y | Includes 1 - 11.

420887605

Unavailable

Crankshaft Ass'y | Includes 1 - 10.

420887666

Unavailable

2

Bearing_Ball - Call your local BRP dealership

420432271

Unavailable

4

Ball Bearing (Includes Dowel Pin#5) | Includes 4 - 5. Formula III 700. Formula III 700 R.

420432273

Unavailable

6

Lock Washer, 22 mm

420945759

$1.90

7

Hex. Nut, M22 X 1.5

420842239

$17.53

8

Dow Corning 111, 150 g

413707000

$59.99

9

Distance Sleeve

420847855

Unavailable

10

Oil Seal

420931280

$51.49

11

Woodruff Key

420246015

$3.17

12

Needle Cage Bearing | Formula III 700. Formula III 700 R.

420832435

Unavailable

Needle Bearing

420832320

$30.49

13

Piston Ass'y | Includes 13 - 15.

420887520

Unavailable

Piston Ass'y | Mach Z. Mach Z-LT.

420887640

Unavailable

14

OVERSIZE RECTANGULAR RING 69.75 MM - Call your local BRP dealership

420915986

Unavailable

Rectangular Ring 70.5 mm

420915988

Unavailable

15

Oversize Semi-trapez Ring 69.75 mm

420815046

Unavailable

Semi-Tapez Ring 70.5 mm | Formula III 800.

420815048

Unavailable

16

GUDGEON PIN - Call your local BRP dealership

420916186

Unavailable

17

Piston Circlip

420945735

$4.46

18

BALL BEARING - Call your local BRP dealership | Includes 3 - 4.

420832538

Unavailable

BALL BEARING - Call your local BRP dealership

420832574

Unavailable

20

Oil Seal

420831990

$20.49

Oil Seal This part replaces 290831952.

420831952

$18.01

21

RETAINING DISK - Call your local BRP dealership

420827050

Unavailable

Retaining Disk

420927710

$7.41

22

Crankshaft P.T.O.-Side | Formula III 700. Formula III 700 R.

420818615

Unavailable

Crankshaft (PTO Side)

420818572

Unavailable

23

ROD REPAIR KIT P.T.O.-SIDE - Call your local BRP dealership | Formula III 700 R.

420887603

Unavailable

ROD REPAIR KIT (PTO SIDE) - Call your local BRP dealership

420887663

Unavailable

Rod Repair Kit Mag, Side/Center | Formula III 700 R.

420887604

Unavailable

Rod Repair Kit (MAG/Center Side)

420887664

Unavailable

24

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

25

Not Available As Spare Part - Friction Washer

Unavailable

26

Loctite 243, 10 ml

293800060

$21.49

27

Crankshaft MAG.-Side | Formula III 600. Formula III 600 R. Formula III 600 LT.

420818625

Unavailable

Crankshaft MAG.-Side

420818582

Unavailable
