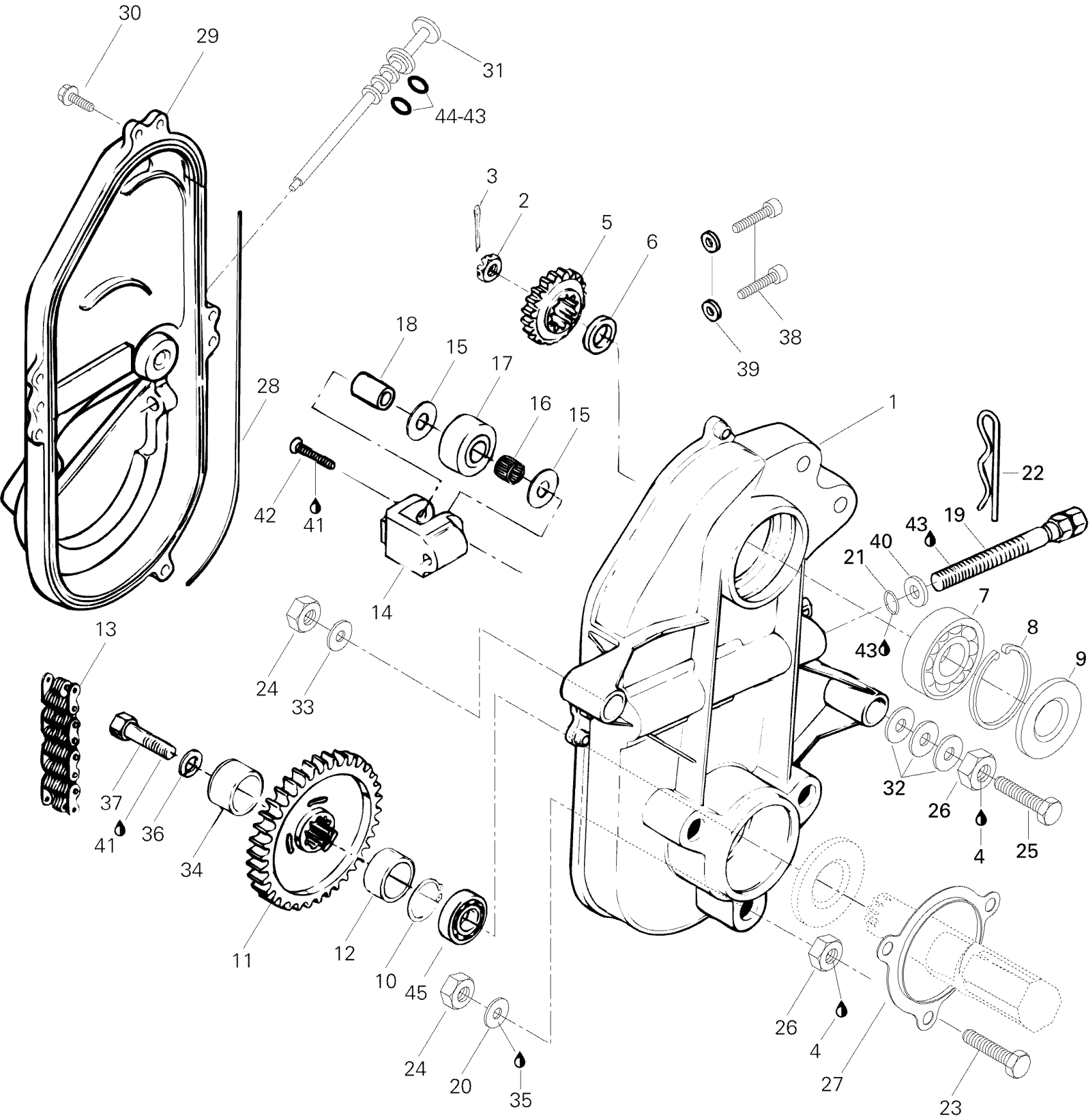

Ski-Doo Mach 1, 1996 05- Transmission Mach 1, Z Diagram
#
Description
Price
1
Chaincase
504095500
Unavailable
2
HEX. CASTLE NUT M20 X 1.5 - Call your local BRP dealership
250000012
Unavailable
3
PIN COTTER - Call your local BRP dealership
371006300
Unavailable
5
SPROCKET, LARGE, 26 TEETH - Call your local BRP dealership | GSX 800 HO
504085300
Unavailable
6
Shim
504093400
Unavailable
8
CIRCLIP - Call your local BRP dealership
371901700
Unavailable
9
Seal | Formula Z 583. Formula Z 670.
414531200
Unavailable
10
Circlip (Int-rior)
414784900
Unavailable
11
Sprocket Large (44 Tooth) | Formula Z.
504085500
Unavailable
12
Inner Shim
501021800
Unavailable
14
MACHINED TENSIONER - Call your local BRP dealership
504081000
Unavailable
15
WASHER - Call your local BRP dealership
504080300
Unavailable
16
NEEDLE BEARING - Call your local BRP dealership
405403000
Unavailable
17
ROLLER - Call your local BRP dealership
414531300
Unavailable
18
SPACER - Call your local BRP dealership
504080200
Unavailable
19
Tensioner Adjustment Screw
732601163
Unavailable
20
Copper Washer
732900020
Unavailable
23
Hex. Screw M10 x 40 | Formula S.
732601112
Unavailable
25
Hex. Screw M10 x 70
732601111
Unavailable
26
Spacer
504083800
Unavailable
27
Protector
501022100
Unavailable
28
O-Ring
414362300
Unavailable
31
Filler Cap
572075500
Unavailable
32
WASHER - Call your local BRP dealership
504073700
Unavailable
34
Cap
501022400
Unavailable
36
WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership This part replaces 224701188.
234100602
Unavailable
38
Socket Head Screw M8 x 10
732601132
Unavailable
42
SCREW - Call your local BRP dealership
732601144
Unavailable
43
LITHIUM GREASE, 400 GR - Call your local BRP dealership | Skandic WT LC.
413706100
Unavailable
44
O-RING - Call your local BRP dealership
414969400
Unavailable
45
Ball Bearing 6206 | Formula 500 LC.
405403900
Unavailable
