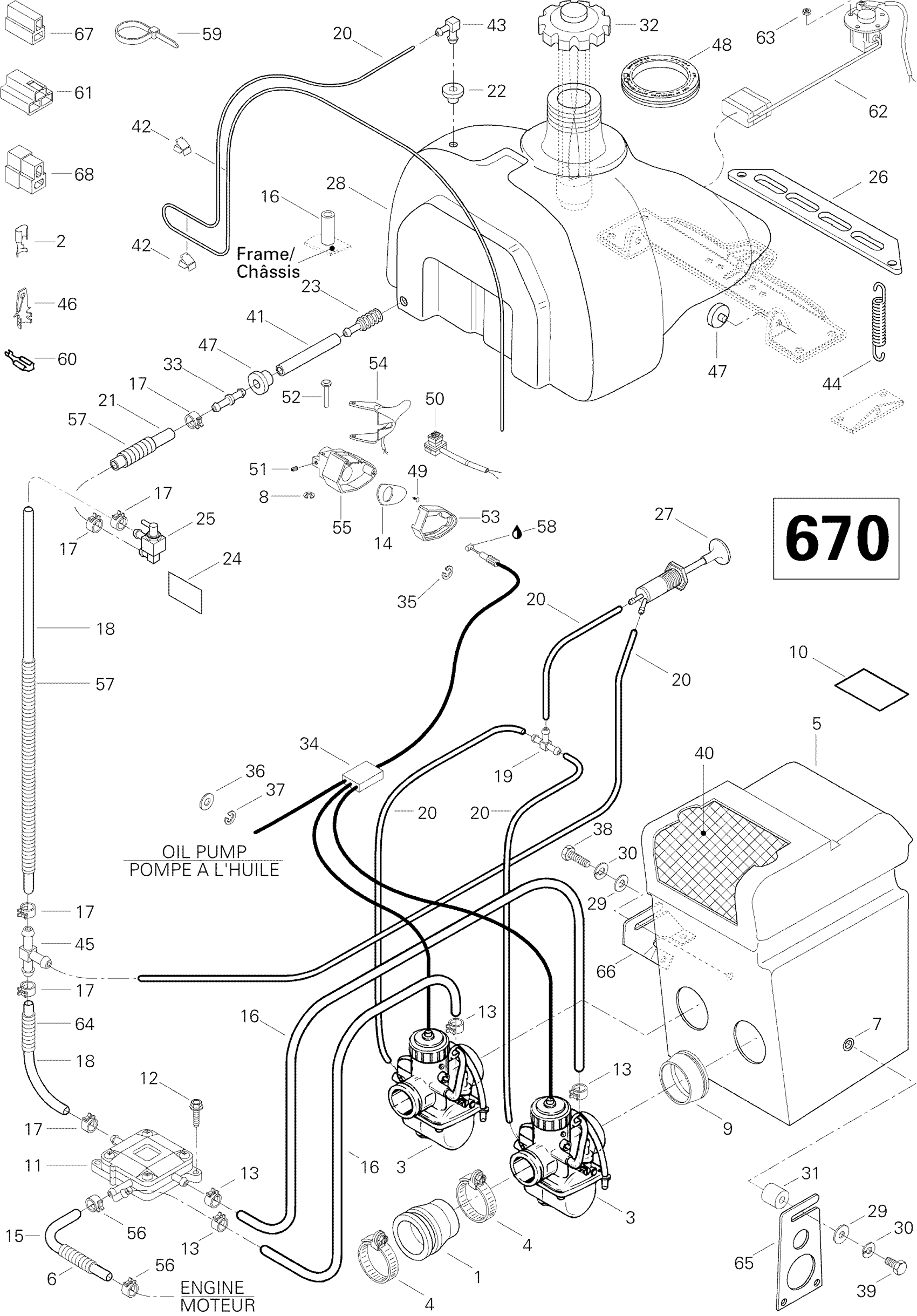

Ski-Doo Mach 1, 1996 02- Fuel System 670 Diagram

#

Description
Price

1

Rubber Flange

570046600

Unavailable

2

FEMALE TERMINAL - Call your local BRP dealership

409010600

Unavailable

3

VM 44-32 Carburetor (PTO Side) | Includes 1 to 31

403126400

Unavailable

3

VM 44-33 Carburetor (MAG Side)

403126500

Unavailable

4

Collar | Skandic 600.

414532800

Unavailable

5

Air Silencer Ass‘y | Includes 5 to 9

580628505

Unavailable

6

Was 409901800 Tubing (13 mm)

219704400

$14.49

7

JACK NUT M6 - Call your local BRP dealership

732610057

Unavailable

8

Circlip | Model-RS

414439000

$4.23

9

Intake Adaptor

570029800

Unavailable

10

Warning Decal

414161500

Unavailable

11

Fuel Pump Ass'y | MX Z 670 HO.

403901200

Unavailable

12

Hexagonal Head Screw

210262050

$2.11

13

Spring Clamp

414554800

$0.88

14

Plate

414473000

Unavailable

15

Hose

219704549

$50.99

16

Polyurethane Hose 10000Mm Long

219704410

$56.99

17

Spring Clamp

414655700

$0.72

18

FUEL LINE 10000MM LONG - Call your local BRP dealership

219704411

Unavailable

19

T-Fitting

414222400

$1.69

20

Fuel Line 3.18 mm | Formula 500. Formula 500 Deluxe.

414296900

Unavailable

21

Hose | Formula Z. Formula 583.

414933900

Unavailable

22

Grommet

709200285

$9.69

23

Fuel Filter Strainer | CHALLENGER 1800 5600/5601.

414872100

$12.49

24

Security Label | MX Z 670 HO.

414931500

Unavailable

25

Shut Off Valve | MX Z 670 HO.

414872200

Unavailable

26

Fuel Tank Bracket

517249200

Unavailable

27

Primer

415060500

$34.99

28

Fuel Tank

572057100

Unavailable

29

Flat Washer

224061121

$0.53

30

Lock Washer M6, Black

234161471

$0.53

31

Spacer

517256400

Unavailable

32

Fuel Tank Cap

513033025

$24.49

33

Male Connector

414872700

$1.90

34

Throttle Cable and Housing

414966601

Unavailable

35

Circlip

414274500

$0.90

36

Flat Washer 8 mm, Nylon

234081100

$1.39

37

Circlip

414753500

$0.71

38

Hex. Screw M6 X 25

207162544

$1.15

39

Hex. Flange Screw M6 X 35

207063544

$1.37

40

Air Filter Foam (2 Holes Silencer)

572029007

Unavailable

41

Hose

415005700

$11.58

42

Clip

414227300

$1.67

43

Male Connector

414814100

$2.22

44

Spring

415107100

$6.35

45

T-Fitting

415119300

$3.17

46

MALE TERMINAL - Call your local BRP dealership

409210000

Unavailable

47

Grommet | Europe

707800347

$10.49

48

Rubber Ring

570276900

Unavailable

49

Screw

414473200

Unavailable

50

Emergency Stop Switch | Includes 91 to 91a

515177362

$86.99

51

Socket Set Screw M8 X 10

414440800

$4.12

52

Lever Pin

414438700

$11.64

53

THROTTLE COVER - Call your local BRP dealership

572044600

Unavailable

54

Heat Throttle Handle, (44 mm)

572057200

Unavailable

55

Throttle Handle Housing

414441100

Unavailable

56

Spring Clamp

414415200

$0.88

57

Tubing 16 Mm 1000Mm Long

219704408

$7.49

58

Dielectric Grease, 150 g This part replaces 413701700.

293550004

Unavailable

59

Tie-Rap 180 mm

414115200

$0.11

60

Female Terminal PACKARD

561503200

Unavailable

61

Female Terminal Housing (3 circuits)

409008500

Unavailable

62

Fuel Level Sensor

410108400

Unavailable

63

Elastic Stop Nut M5

232551414

$0.87

64

Tubing

414942900

Unavailable

65

External Bracket

517252000

Unavailable

66

Internal Bracket

518310209

Unavailable

67

FEMALE TERMINAL HOUSING, 24 CIRCUITS - Call your local BRP dealership

409204600

Unavailable

68

MALE HOUSING - Call your local BRP dealership

409204500

Unavailable
