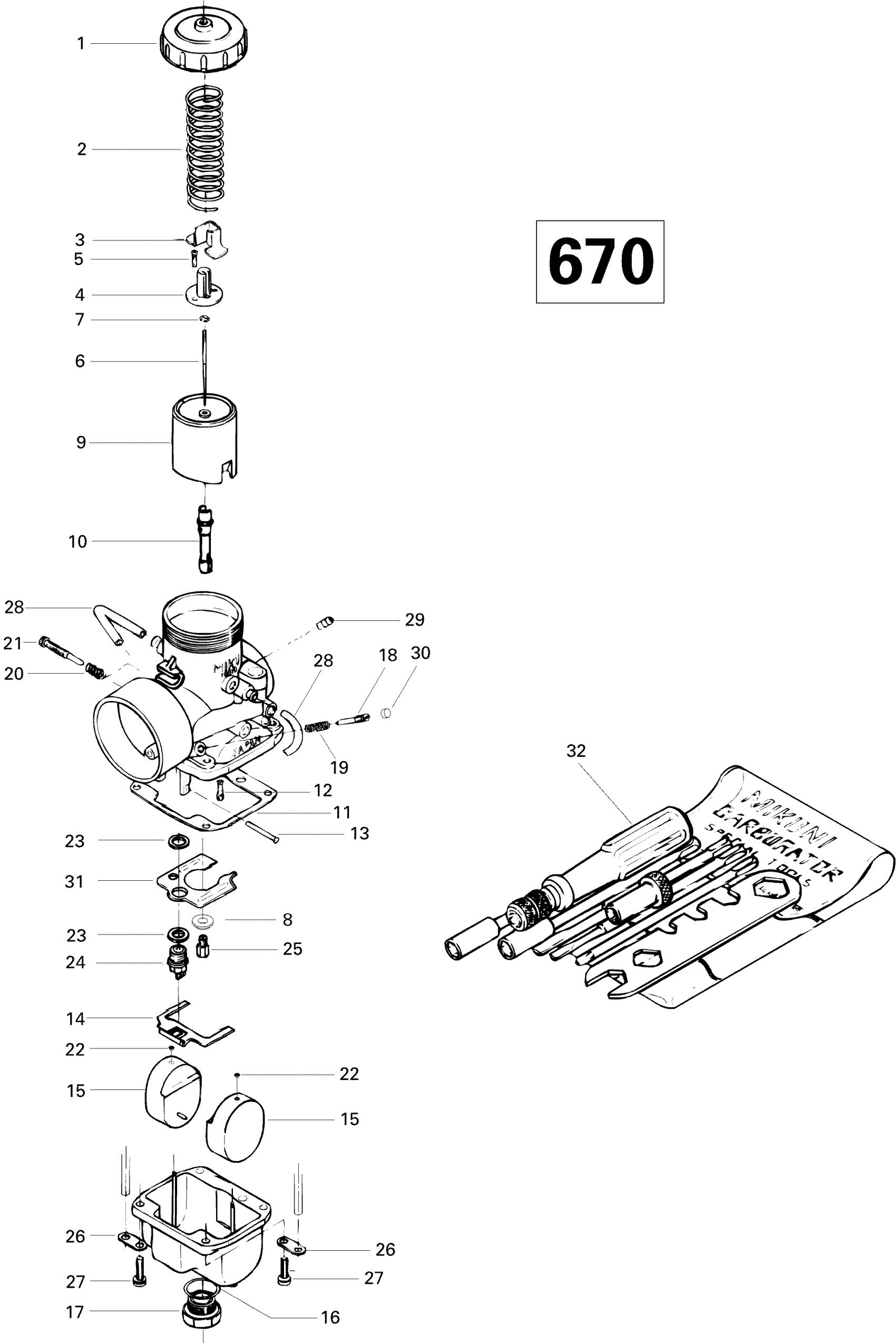

Ski-Doo Mach 1, 1996 02- Carburetor Mach 1 Diagram
#
Description
Price
1
VM 44-32 Carburetor (PTO Side) | Includes 1 to 31
403126400
Unavailable
1
VM 44-33 Carburetor (MAG Side)
403126500
Unavailable
1
Cover
404126800
Unavailable
2
Spring
404156500
Unavailable
3
Cover
404128100
Unavailable
4
CONNECTOR - Call your local BRP dealership
404160800
Unavailable
6
Jet Needle JN 7EG06-3
404147200
Unavailable
8
Washer
404116700
Unavailable
9
Piston Valve CA 2.5
404132300
Unavailable
10
Oil Seal
404152800
Unavailable
11
GASKET - Call your local BRP dealership
404104700
Unavailable
14
FLOAT LEVER - Call your local BRP dealership
404105000
Unavailable
15
FLOAT - Call your local BRP dealership
404105400
Unavailable
16
Washer | Formula Deluxe 500.
404112800
Unavailable
17
Drain Plug Screw | Formula Deluxe 500.
404112900
Unavailable
19
SPRING - Call your local BRP dealership
404132400
Unavailable
21
THROTTLE SCREW - Call your local BRP dealership
404125200
Unavailable
24
Needle Valve 2.0
404131400
Unavailable
25
MAIN JET MJ 420 Mikuni 4/042-420 - Call your local BRP dealership
404107900
Unavailable
26
PLATE - Call your local BRP dealership
404103000
Unavailable
28
Hose | Grand Touring SE.
404109800
Unavailable
29
NIPPLE - Call your local BRP dealership
404127600
Unavailable
30
Not Available As Spare Part - Friction Washer
Unavailable
31
Baffle
404112700
Unavailable
32
TOOL KIT - Call your local BRP dealership
404112000
Unavailable
33
Hight Altitude Kit, (Not Shown)
861750100
Unavailable
