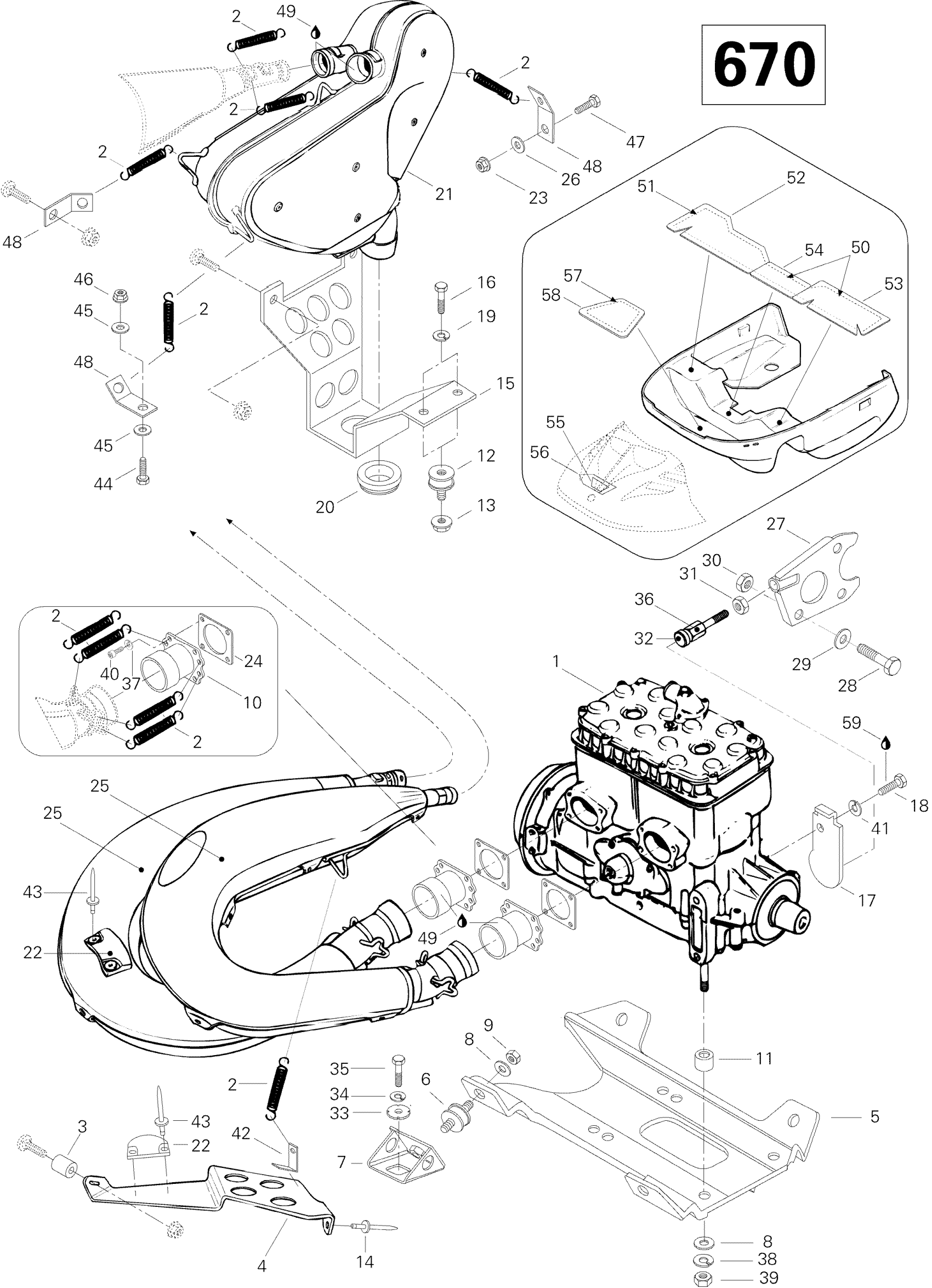

Ski-Doo Mach 1, 1996 01- Engine And Engine Support 670 Diagram

#

Description
Price

1

«670» Engine

400602300

Unavailable

2

Spring

415107100

$6.35

3

Spacer

517277700

Unavailable

4

Support,Tuned Pipe

514043000

Unavailable

5

Engine Support

512054500

Unavailable

6

RUBBER MOUNT - Call your local BRP dealership

570127700

Unavailable

7

Engine Support

512050900

Unavailable

8

Flat Washer 10 mm

234001410

$1.26

9

Elastic Locking Nut M10 X 1.5

233601416

$1.69

10

Exhaust Socket

420978817

Unavailable

11

Spacer

503128100

Unavailable

12

Rubber Mount | Formula 500. Formula 500 Deluxe.

570016100

Unavailable

13

Hex. Flange Elastic Nut M8

233281414

$1.47

14

Pop Rivet 3/16"

390906800

$0.93

15

Support (Muffler)

514031900

Unavailable

16

Screw Hex. M8 x 12 | Formula 500. Formula 500 Deluxe.

222081265

Unavailable

17

Stopper Plate

512052900

Unavailable

18

Hex. Screw M6 X 16

207161644

$0.74

19

Lock Washer 8 mm

234181401

$0.92

20

Exhaust Grommet | Formula Deluxe 583. Formula Deluxe 670.

570027300

Unavailable

21

Muffler

580629000

Unavailable

22

Rubber Pad

570044100

Unavailable

23

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

24

Gasket

420850552

$8.85

25

Tune Pipe (PTO)

514041500

Unavailable

25

Tune Pipe (MAG)

514041600

Unavailable

26

Flat Washer

224060201

$1.26

27

Plate

512053400

Unavailable

28

Hex. Screw M8 X 25

207182544

$0.90

29

Flat Washer 8 mm

234081410

$0.83

30

Hex. Elastic Stop Nut M8

232581414

$0.56

31

Nut Hexagonal RH.

232026414

$1.48

32

STOPPER - Call your local BRP dealership | Formula Deluxe 500 LC.

570045400

Unavailable

33

Lock Washer

512056700

$3.17

34

WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership This part replaces 224701188.

234100602

Unavailable

35

Hex. Screw M10 X 25

207102544

$1.37

36

Screw | Formula Deluxe 500 LC.

512052400

Unavailable

37

Lock Washer M6, Black

234161471

$0.53

38

WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership This part replaces 224701188.

234100602

Unavailable

39

Hex. Nut M10 X 1.5

232006414

$1.37

40

Socket Head Screw M6 X 25

205062544

$1.15

41

Lock Washer M6, Black

234161471

$0.53

42

Bracket-Spring

514043200

Unavailable

43

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

44

Hex. Screw M5 X 20

207152044

$0.90

45

Flat Washer

224061201

$1.37

46

Hex. Flange Elastic Nut M5

233251414

$1.04

47

Hex. Screw M6 X 16

207161644

$0.74

48

Spring Bracket

514054522

$8.45

49

Sealant, Loctite, 80 ml | DS 650

293800090

$26.99

50

Insulator

514043700

Unavailable

51

Insulator

514043600

Unavailable

52

Sheet-Reflective

414917100

Unavailable

53

Sheet-Reflective

414918300

Unavailable

54

Sheet-Reflective

414918400

Unavailable

55

Insulator

514039000

Unavailable

56

Sheet-Reflective

414947400

Unavailable

57

Insulator

514039000

Unavailable

58

Sheet-Reflective

414930900

Unavailable

59

Loctite 271, 10 ml

293800005

$26.99
