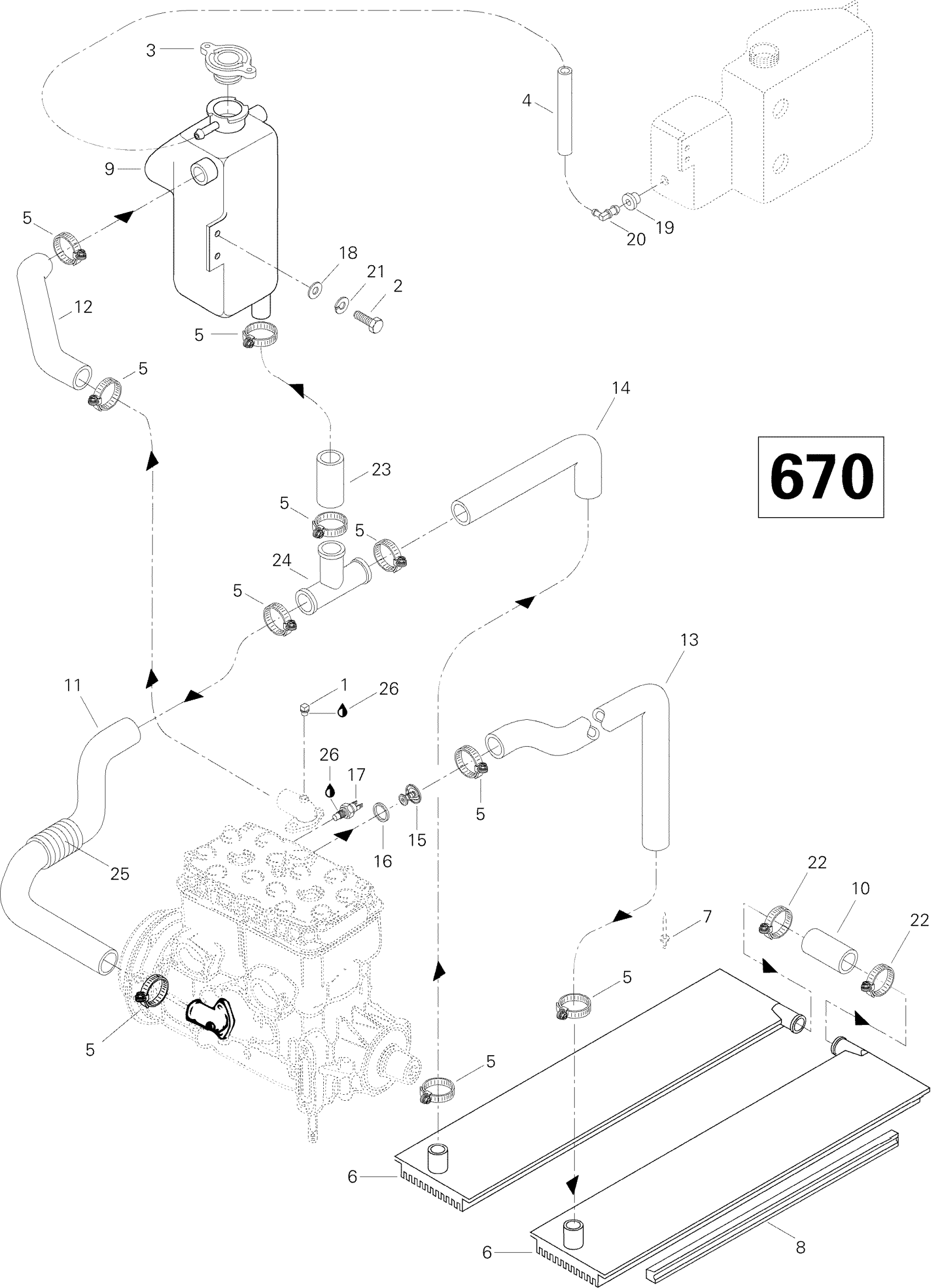

Ski-Doo Mach 1, 1996 01- Cooling System MACH 1 Diagram

#

Description
Price

1

Plug

414184400

Unavailable

2

Hex. Screw M6 X 16

207161644

$0.74

3

Pressure Cap

509000187

$29.49

4

Polyurethane Hose 10000Mm Long

219704410

$56.99

5

TRIDON GEAR CLAMP - Call your local BRP dealership

408800400

Unavailable

6

RH Radiator | Formula 500. Formula 500 Deluxe.

517280500

Unavailable

6

LH Radiator | Formula 500. Formula 500 Deluxe.

517280501

Unavailable

7

Pop Rivet 3/16"

390402200

$0.35

8

Radiator Protector

517248900

Unavailable

9

Coolant Tank

572071700

Unavailable

10

Radiator Hose

414795800

Unavailable

11

Engine Inlet Hose

414986500

Unavailable

12

Engine Outlet Hose

414859600

Unavailable

13

Radiator Inlet Hose

414859700

Unavailable

14

Radiator Outlet Hose

414986600

Unavailable

15

Thermostat This part replaces 414834100.

420922519

$63.99

16

SEALING RING - Call your local BRP dealership

420931270

Unavailable

17

Temperature Sensor | Formula Deluxe 600. Formula Deluxe 700.

414728700

Unavailable

18

Flat Washer 6 mm

234061410

$1.36

19

Grommet

709200285

$9.69

20

Elbow Male Connector

414580600

$4.23

21

Lock Washer M6, Black

234161471

$0.53

22

Clamp Tridon

408803400

Unavailable

23

Hose-Junction

414986700

Unavailable

24

T-Fitting

509000219

$15.89

25

TUBING - Call your local BRP dealership

414991800

Unavailable

26

Was 293800018 Loctite 592, 50 ml | Package T

219704455

$33.99
