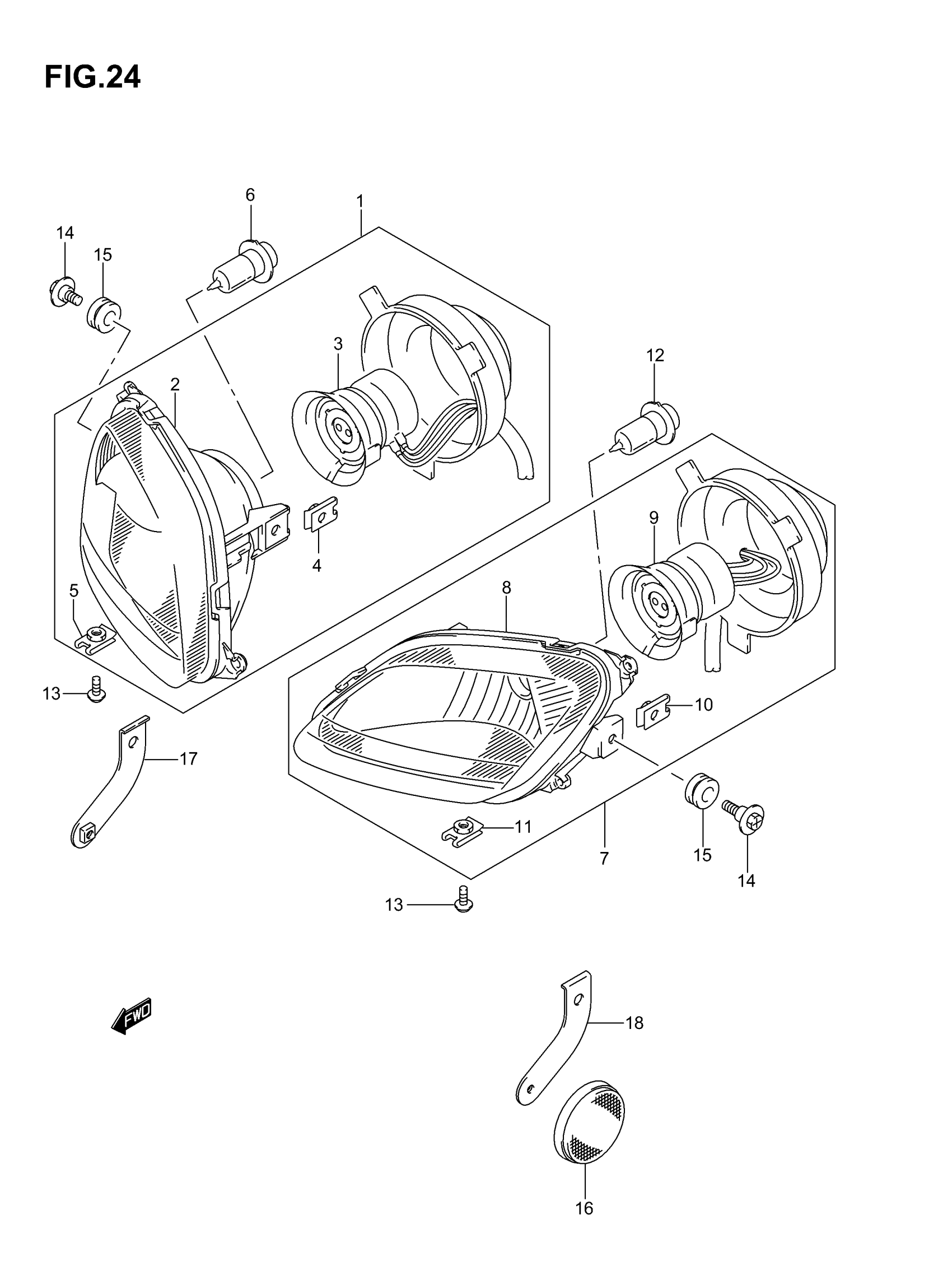

Suzuki LTF250 (2007) HEADLAMP Diagram

#

Description
Price

1

HEADLAMP ASSY, RH | FOR YT8,YT9,019

35100-05G00-999

Unavailable

1

HEADLAMP ASSY, RH | FOR YU1,YLG; Includes Item(s) 2 - 5

35100-05G10-999

Unavailable

2

UNIT, RH | FOR YT8,YT9,019

35121-03G00

$175.35

2

UNIT, RH (BLACK) | FOR YU1,YLG

35121-05G10

$131.20

3

CORD ASSY, RH

35171-05GR0

$40.22

4

NUT (M6)

35157-05G90

$5.98

5

NUT (M5)

35157-05G50

$5.98

6

BULB (12V,30/30W) This part replaces 09471-12097.

09471-12093

$29.38

7

HEADLAMP ASSY, LH | FOR YT8,YT9,019

35300-05G00-999

Unavailable

7

HEADLAMP ASSY, LH | FOR YU1,YLG; Includes Item(s) 8 - 11

35300-05G10-999

Unavailable

8

UNIT, LH | FOR YT8,YT9,019

35321-03G00

$186.17

8

UNIT, LH (BLACK) | FOR YU1,YLG

35321-05G10

$198.15

9

CORD ASSY, LH

35171-05GL0

$39.48

10

NUT (M6)

35157-05G90

$5.98

11

NUT (M5)

35157-05G50

$5.98

12

BULB (12V,30/30W) This part replaces 09471-12097.

09471-12093

$29.38

13

SCREW, ADJUST (5X16)

09136-05046

$2.45

14

SCREW, HEADLAMP

09139-06118

$3.25

15

CUSHION

09320-10501

$6.23

16

REFLEX REFLECTOR ASSY, FR | E28

35950-14A00

$16.94

17

BRACKET, RH | E28

35956-05G00

Unavailable

18

BRACKET, LH | E28

35957-05G00

Unavailable
